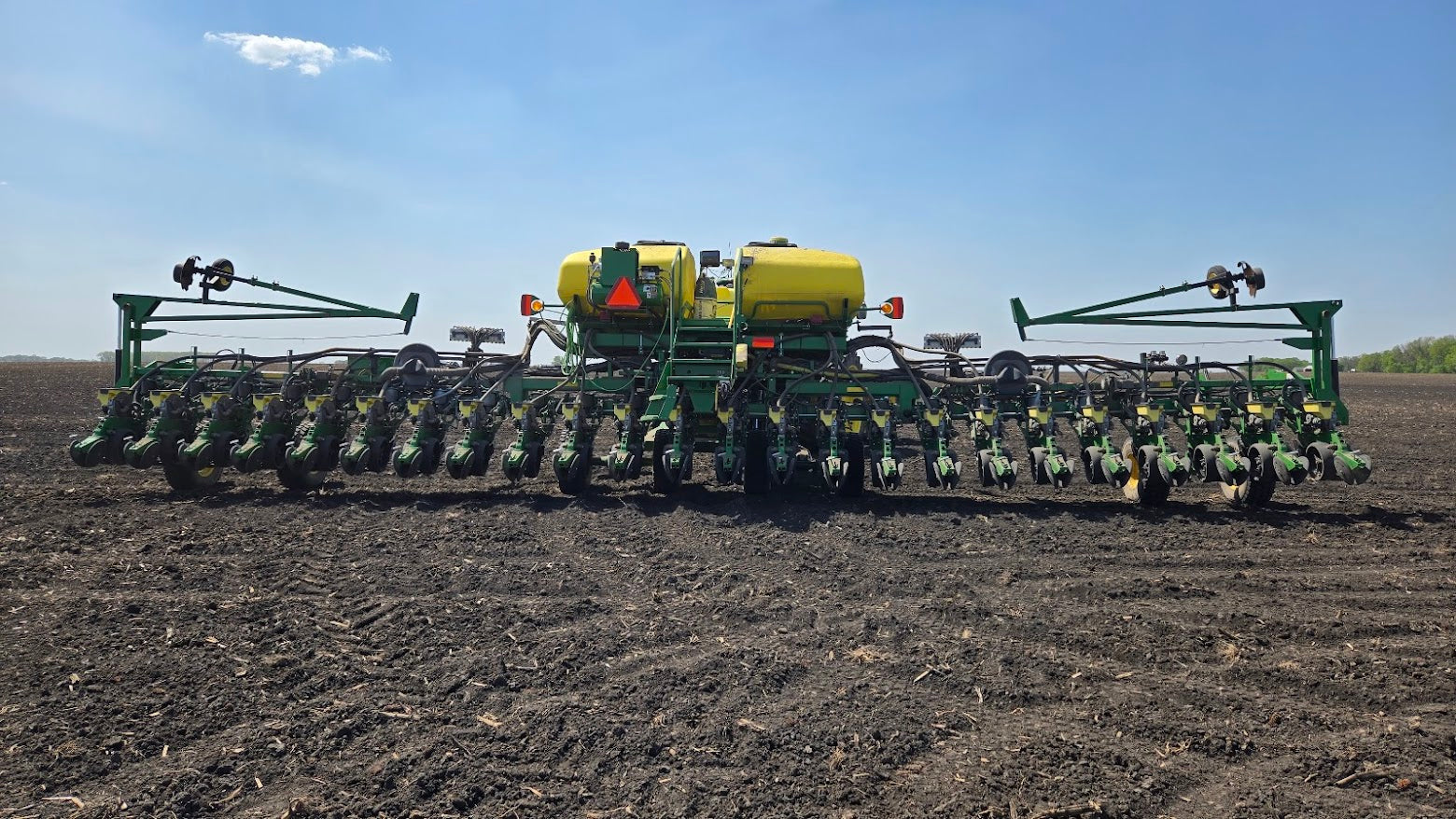

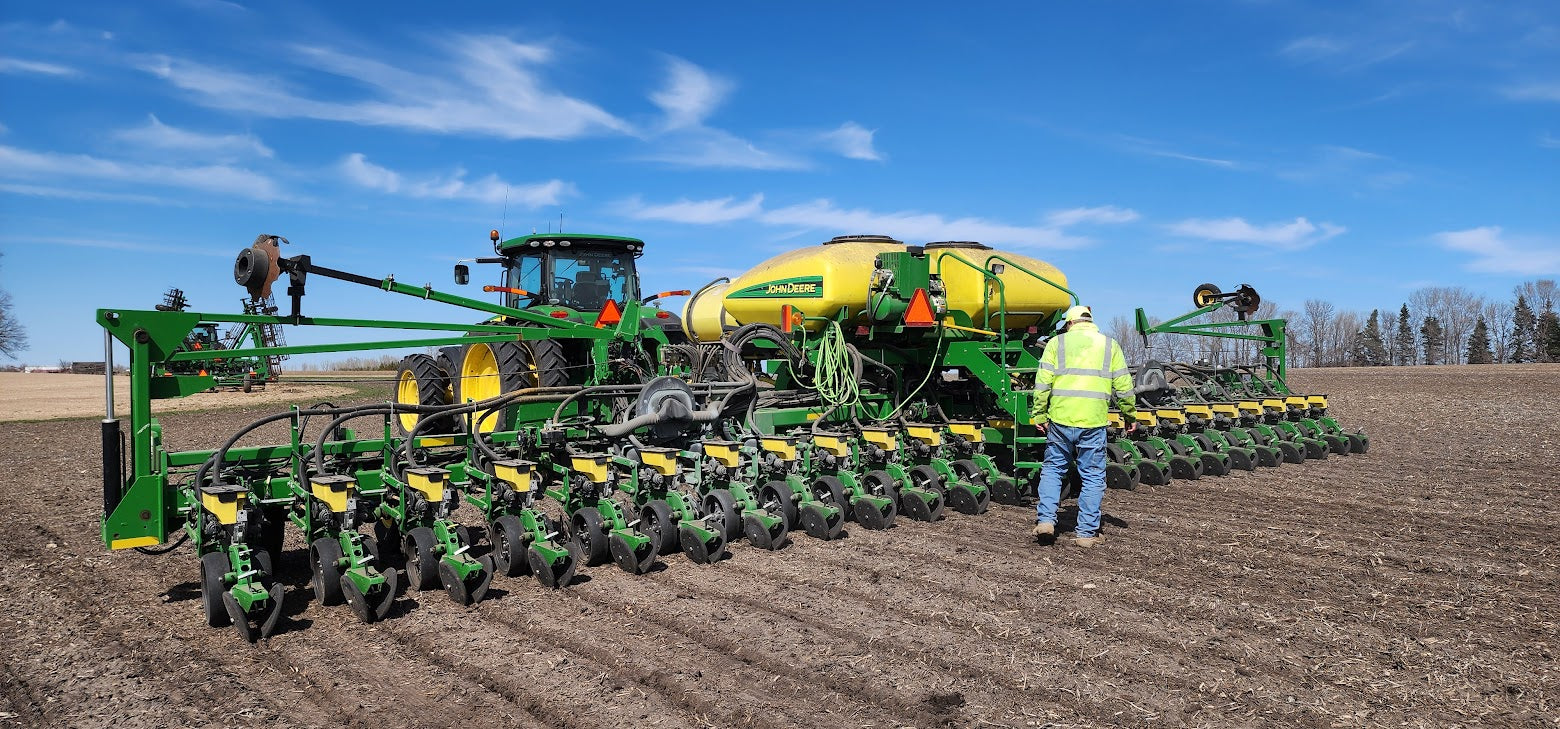

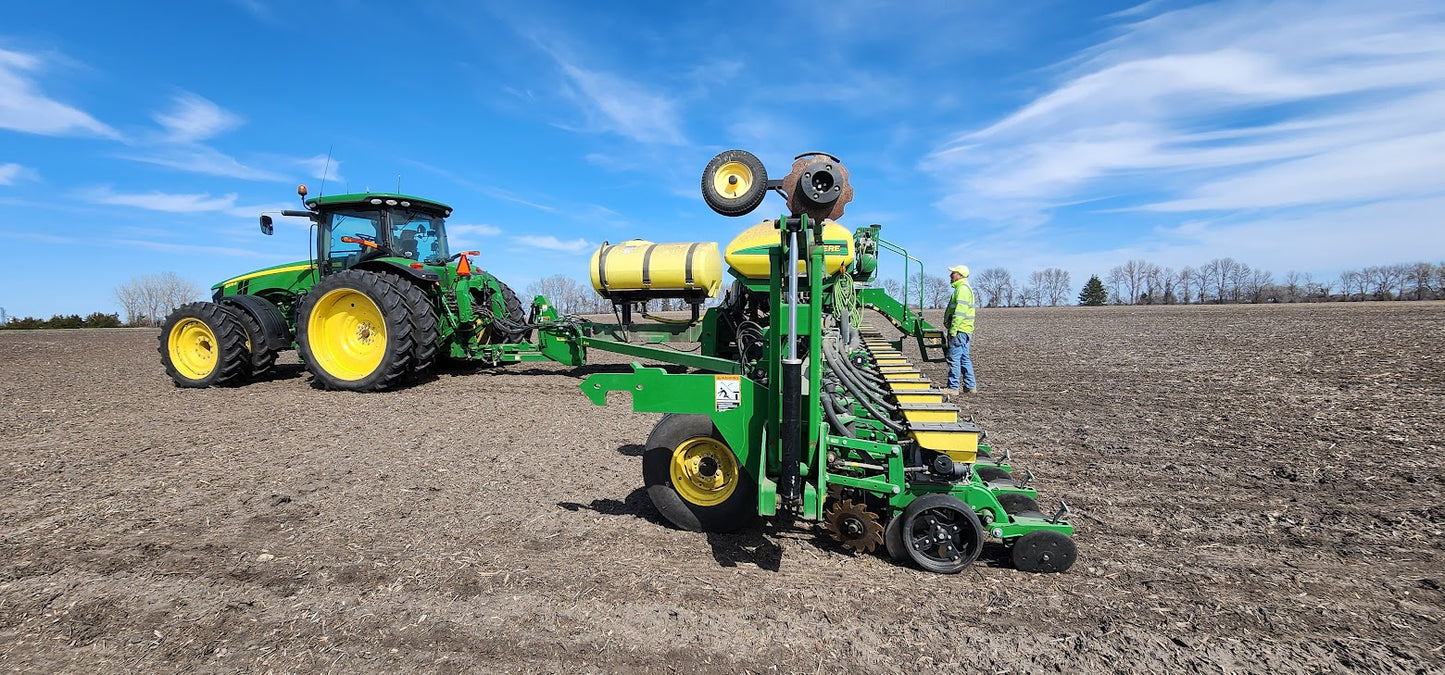

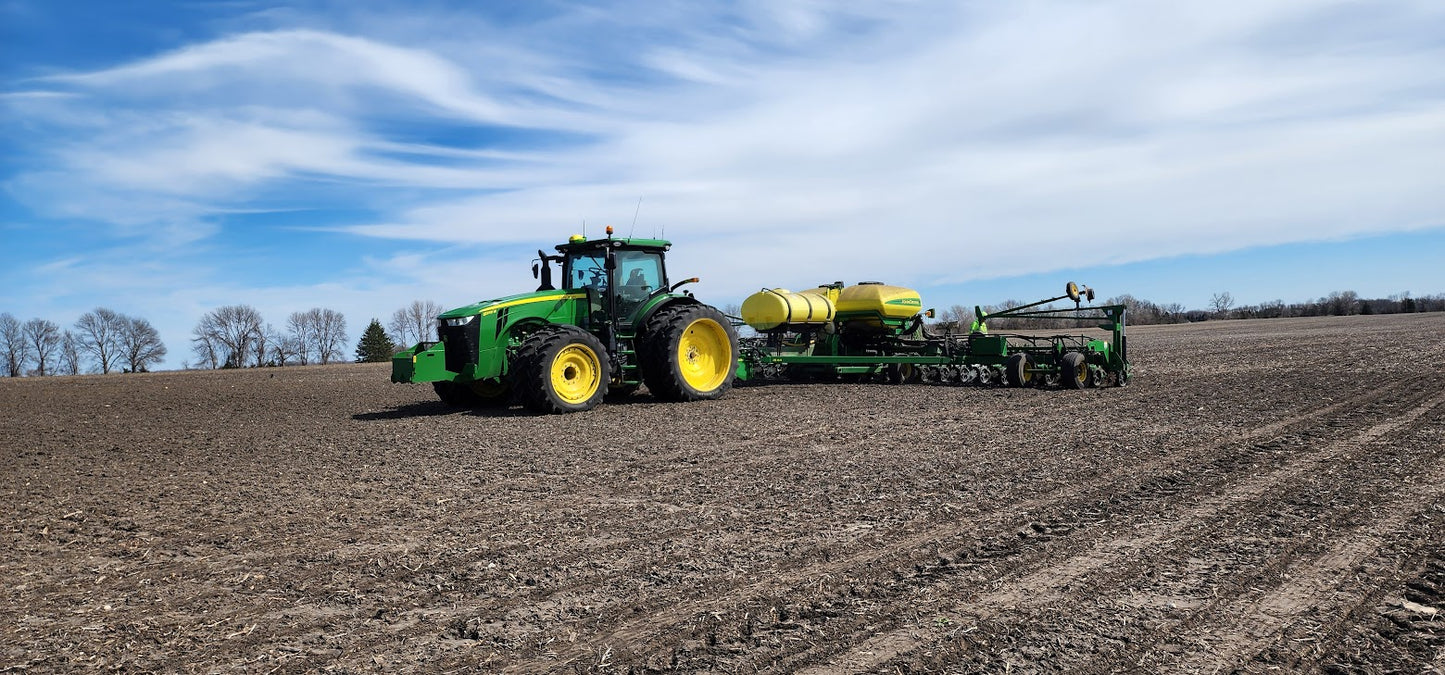

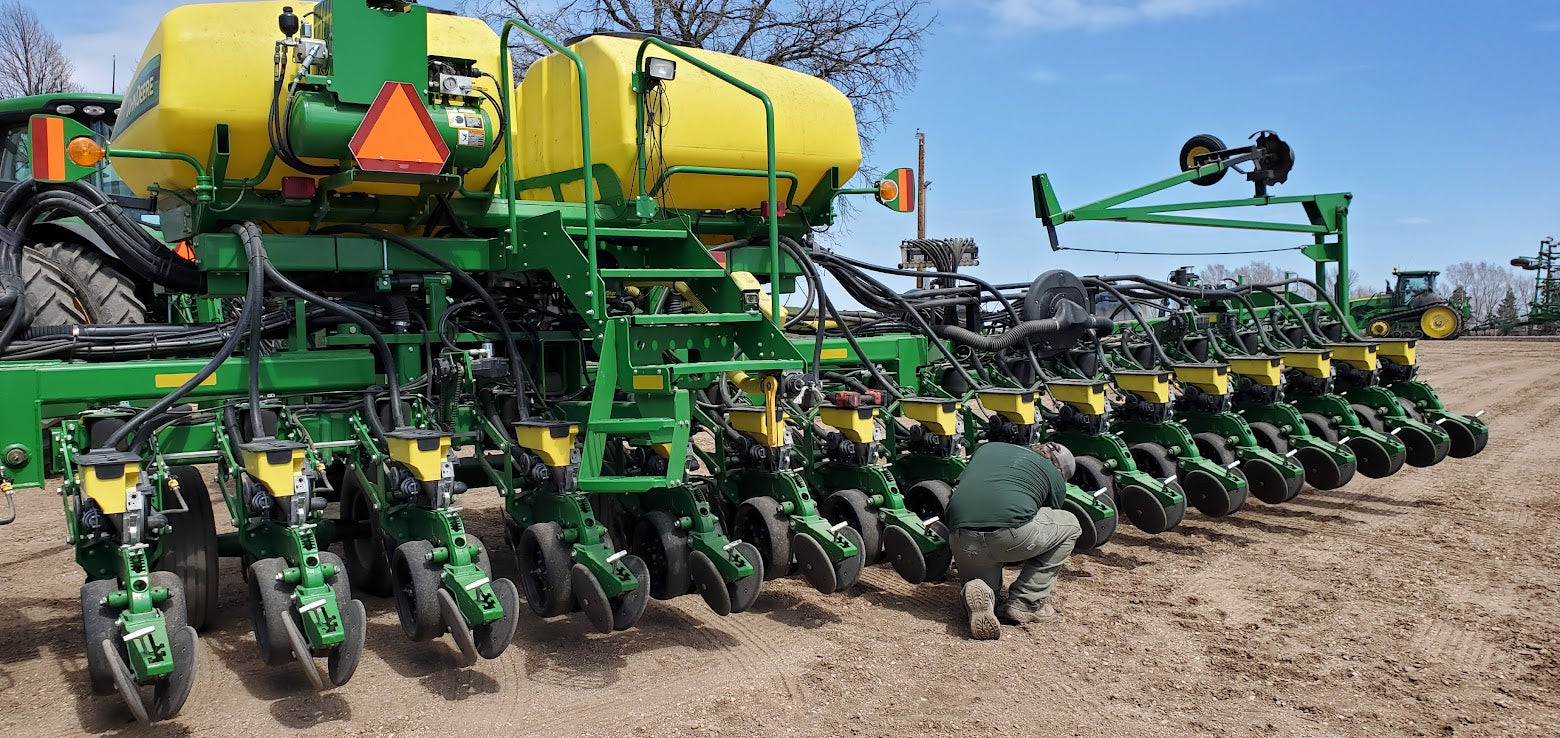

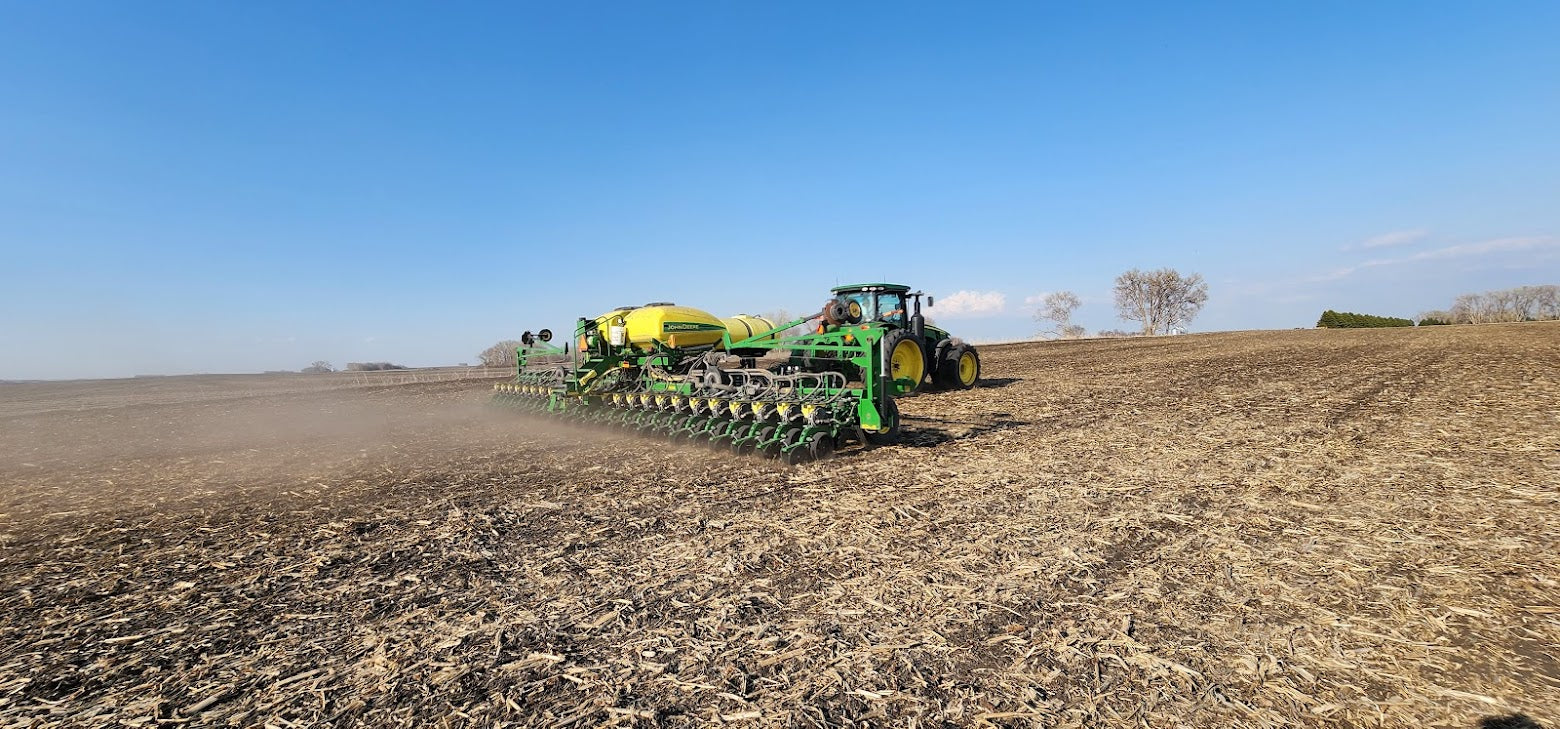

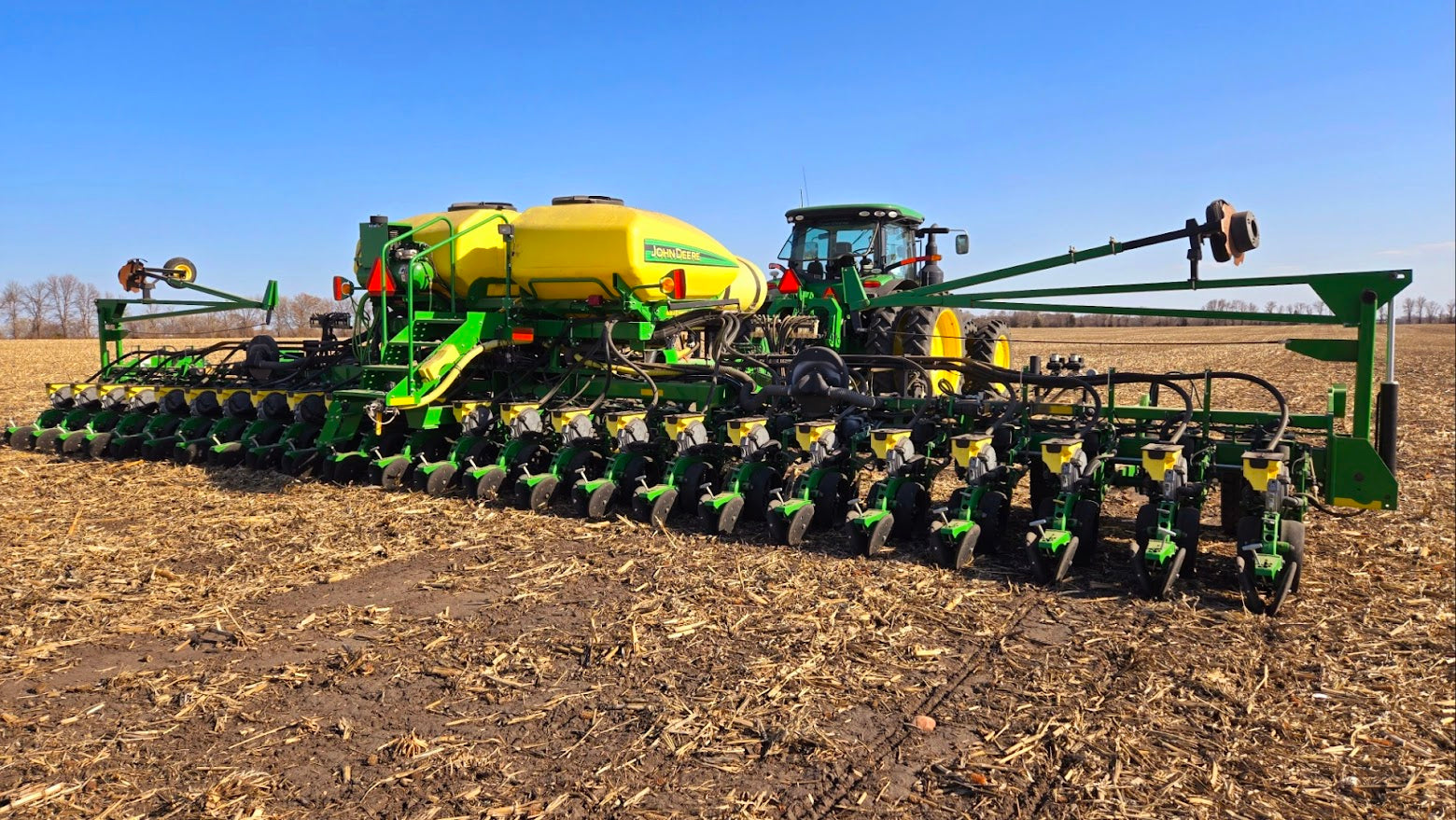

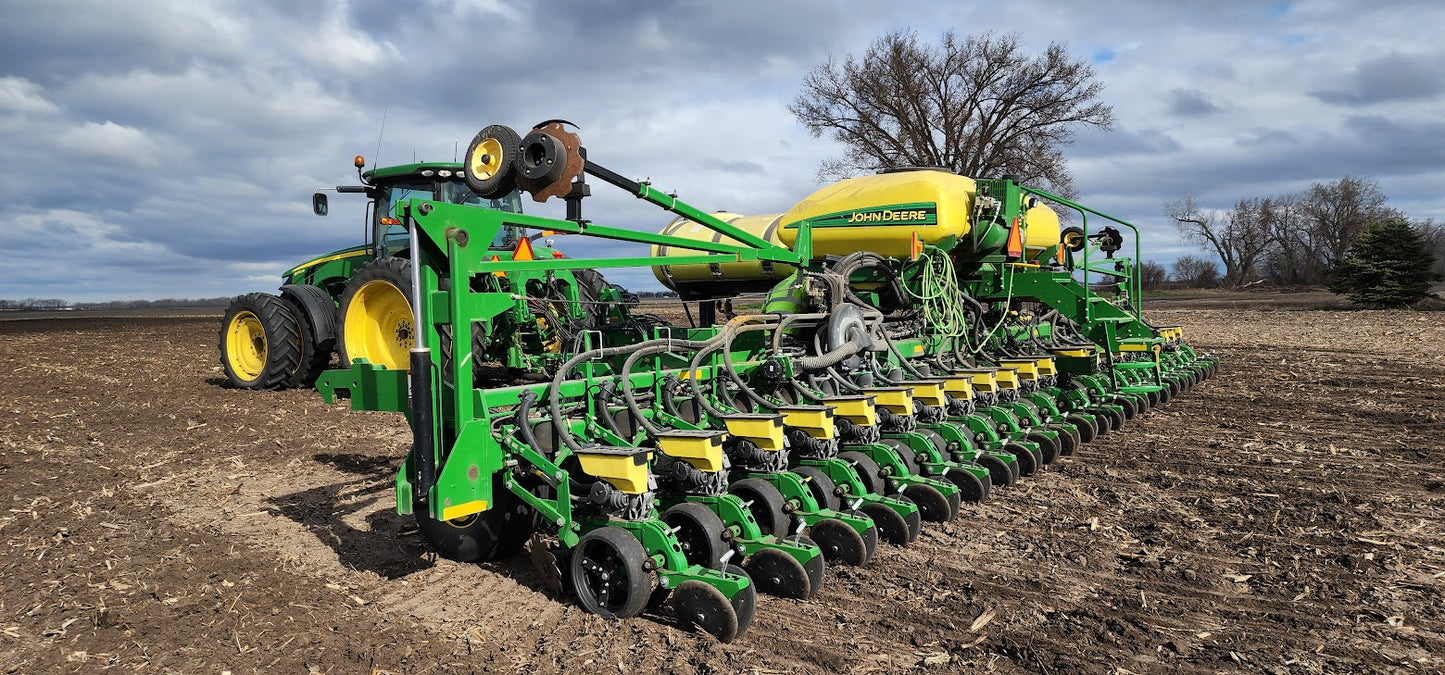

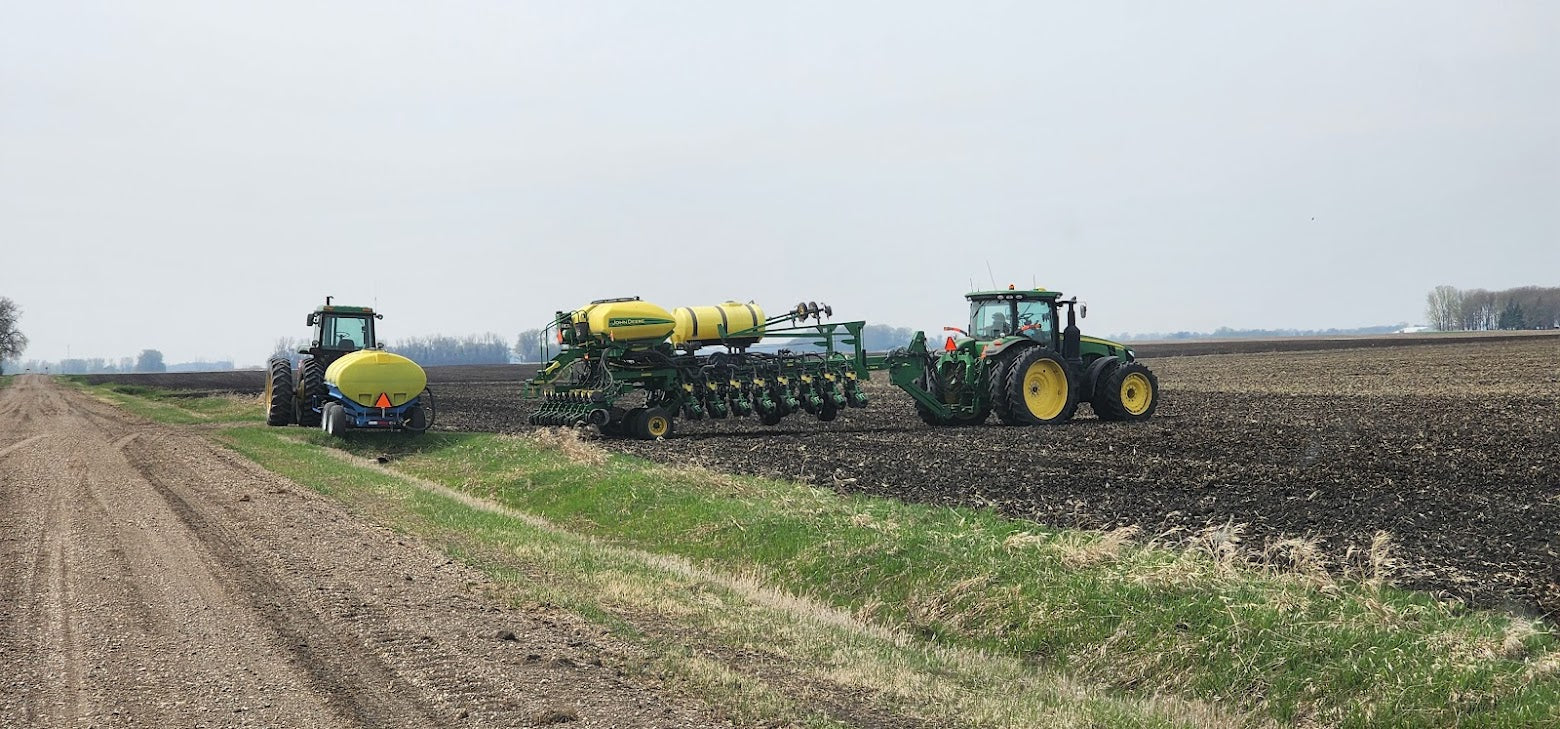

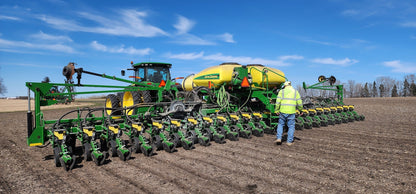

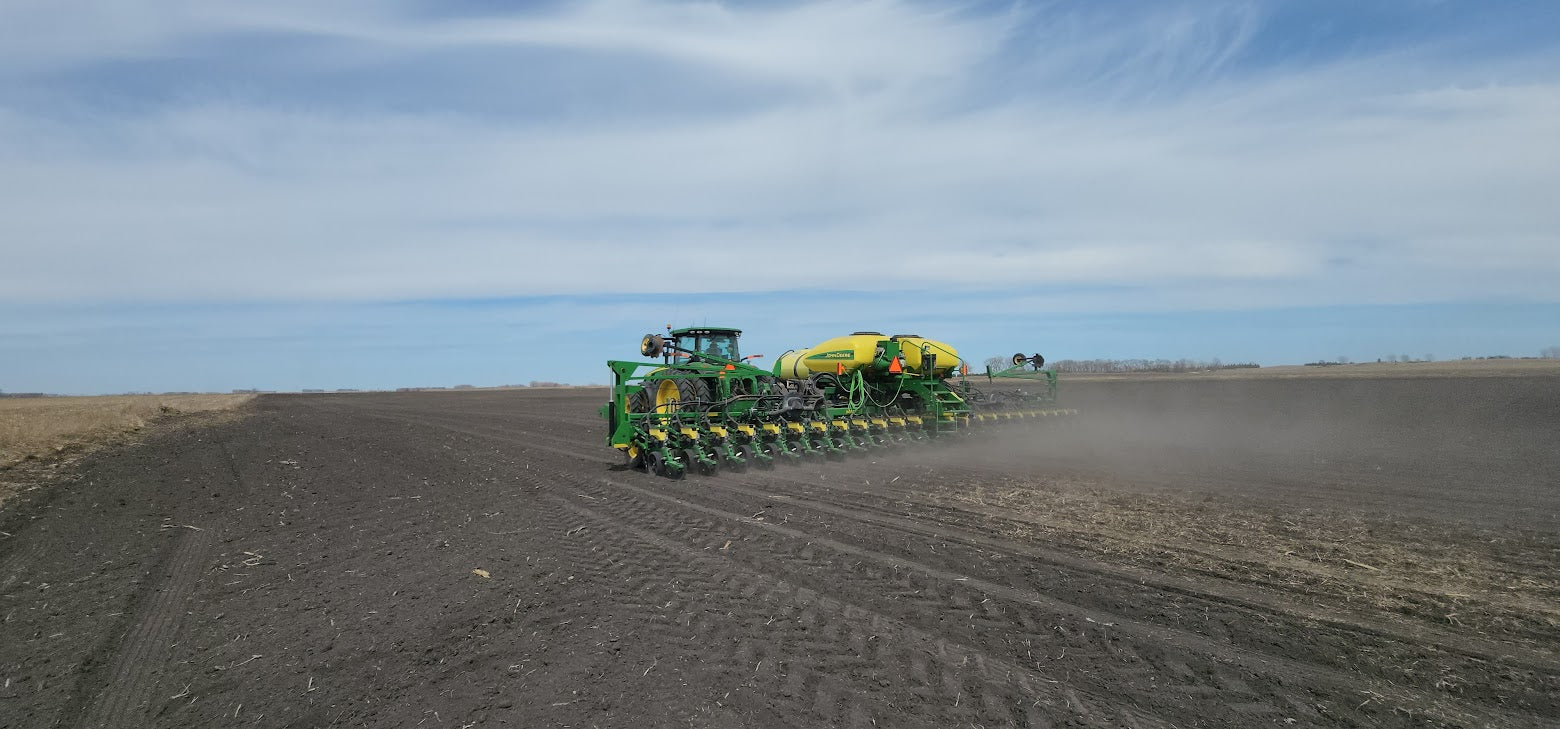

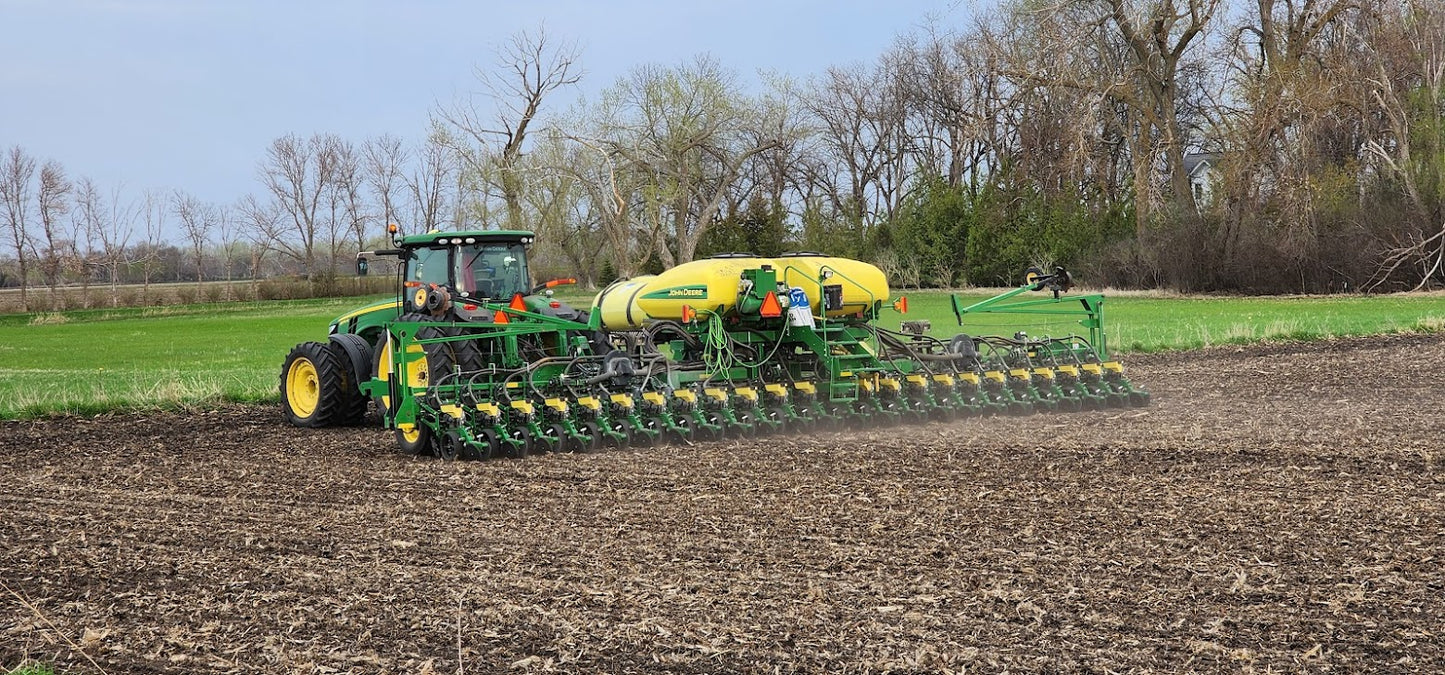

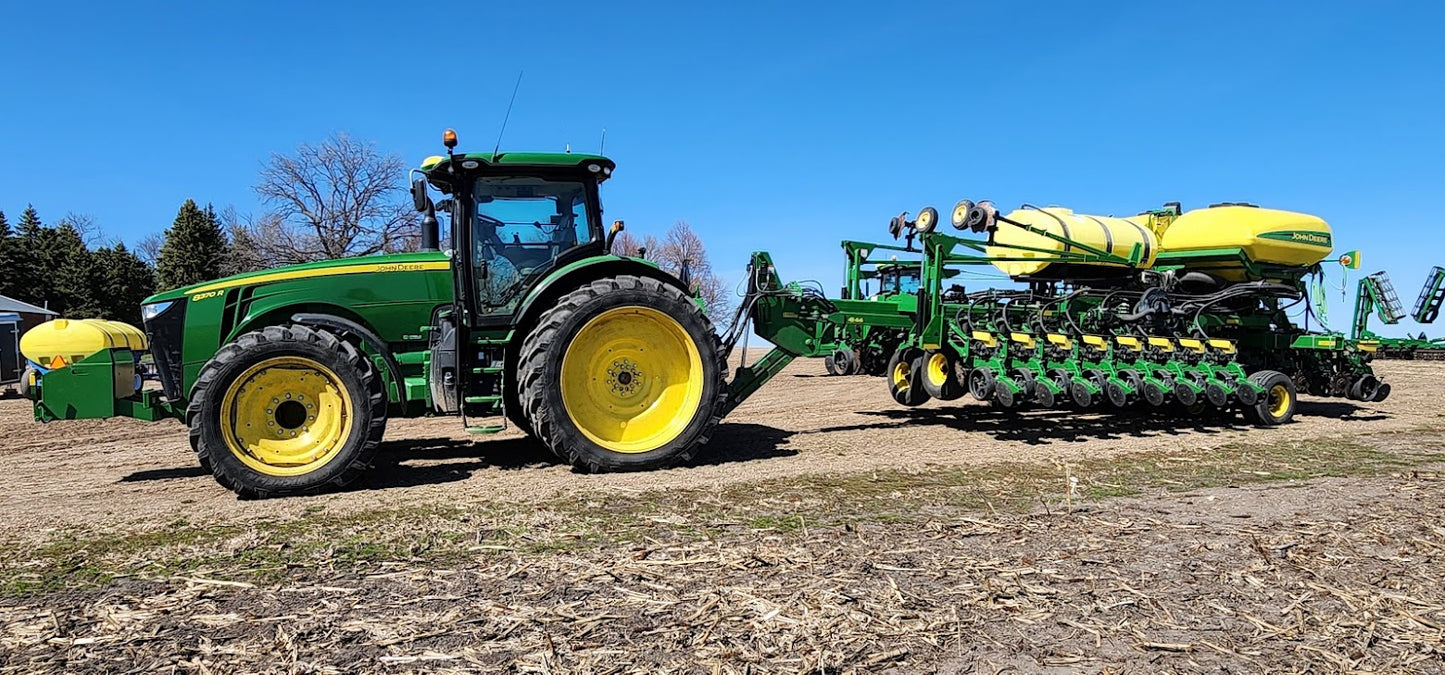

2015 John Deere DB44 ME5 CCS 24R22 Planter

Name: 2015 John Deere DB44 ME5 CCS 24R22 Planter
Brand: Farm2Farm
Price: 185000.00 USD
Availability: InStock

$185,000 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

16,800 acres on planter
- Average of 1,527 acres per year since new

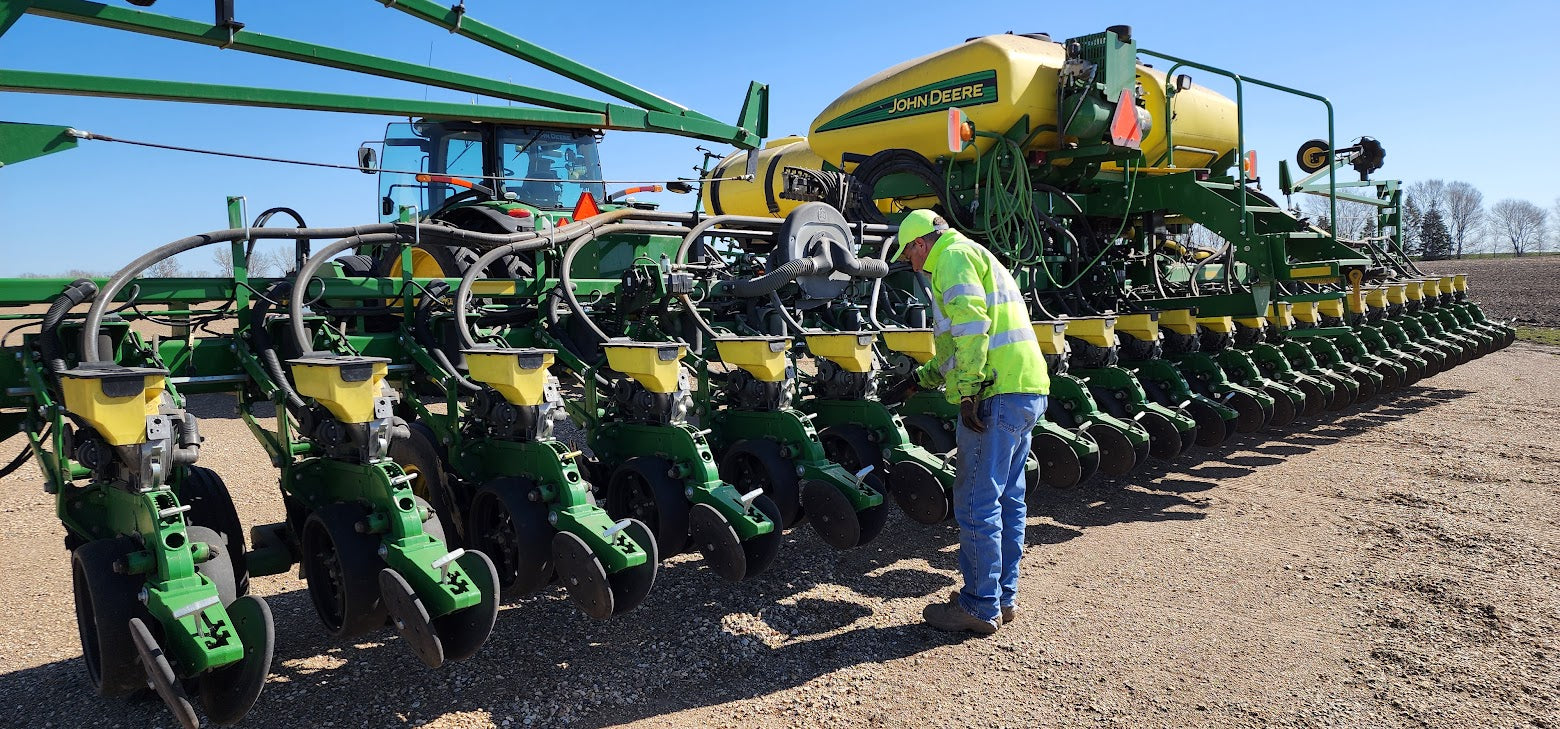

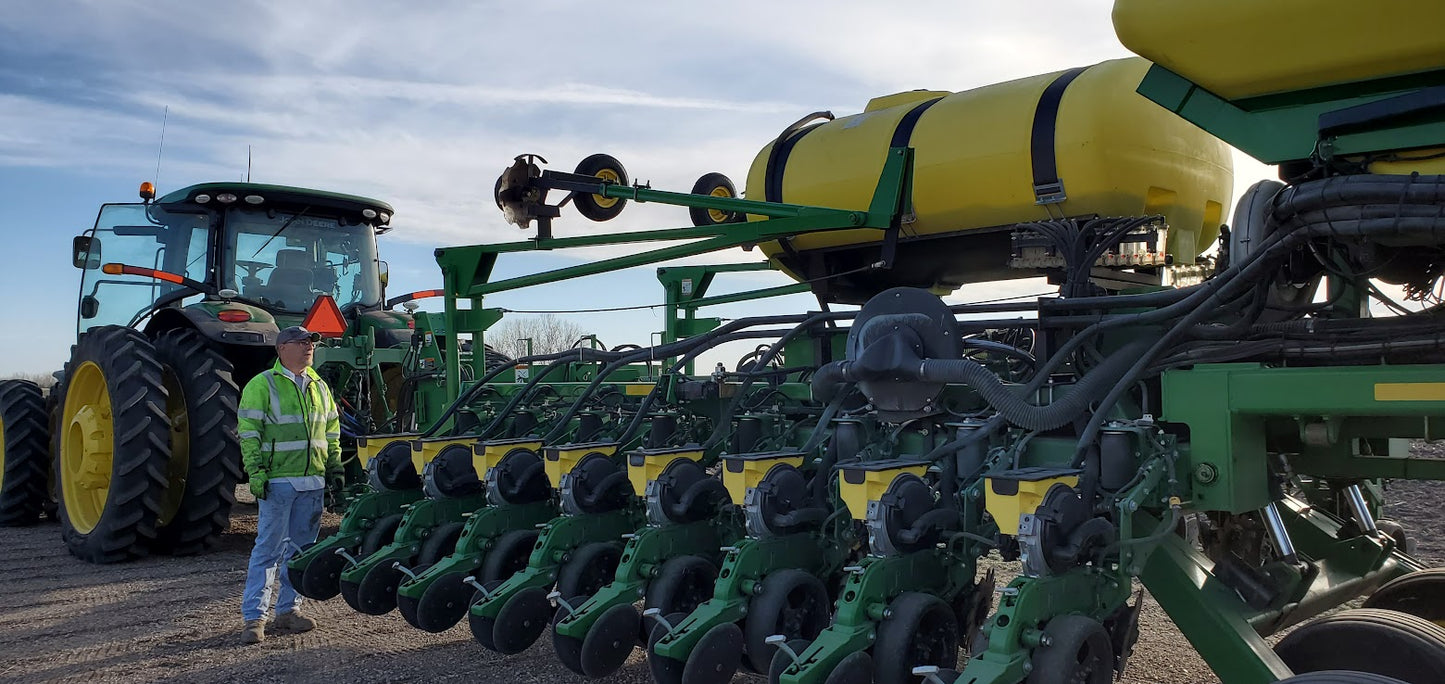

24-row 22" spacing

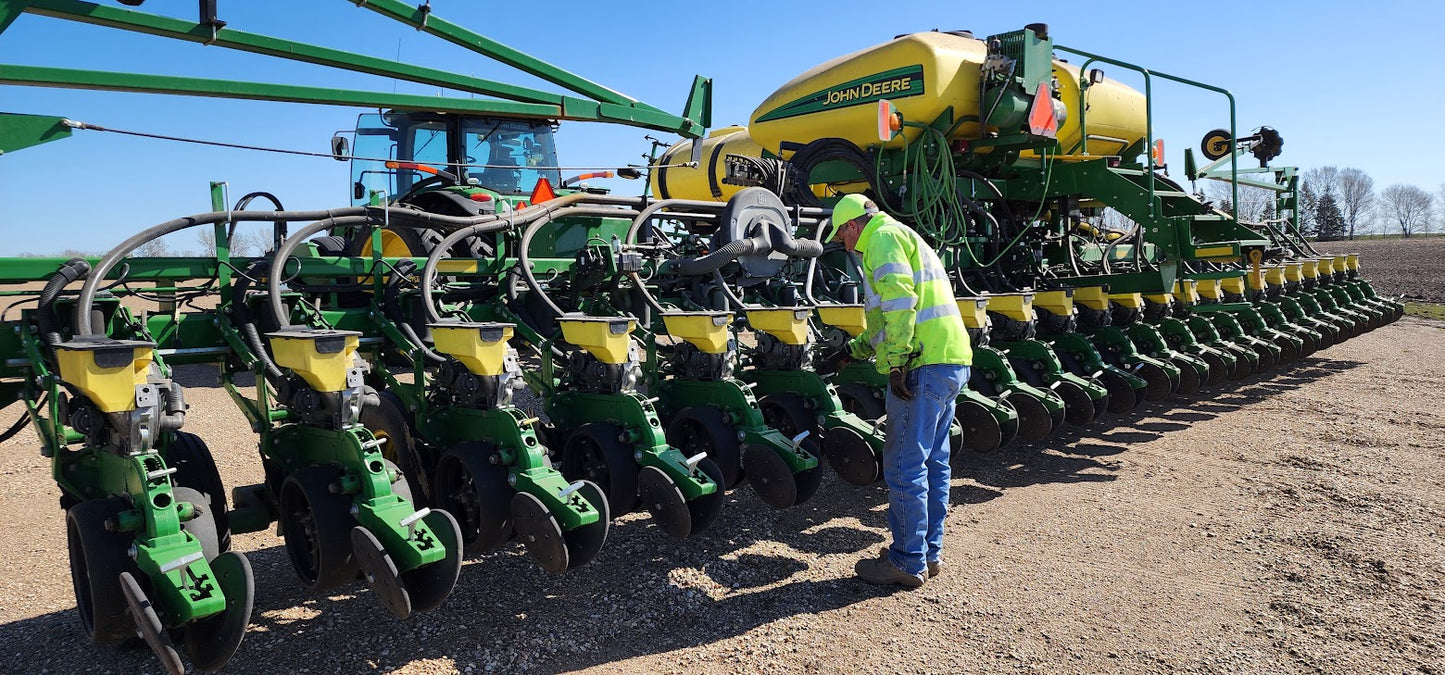

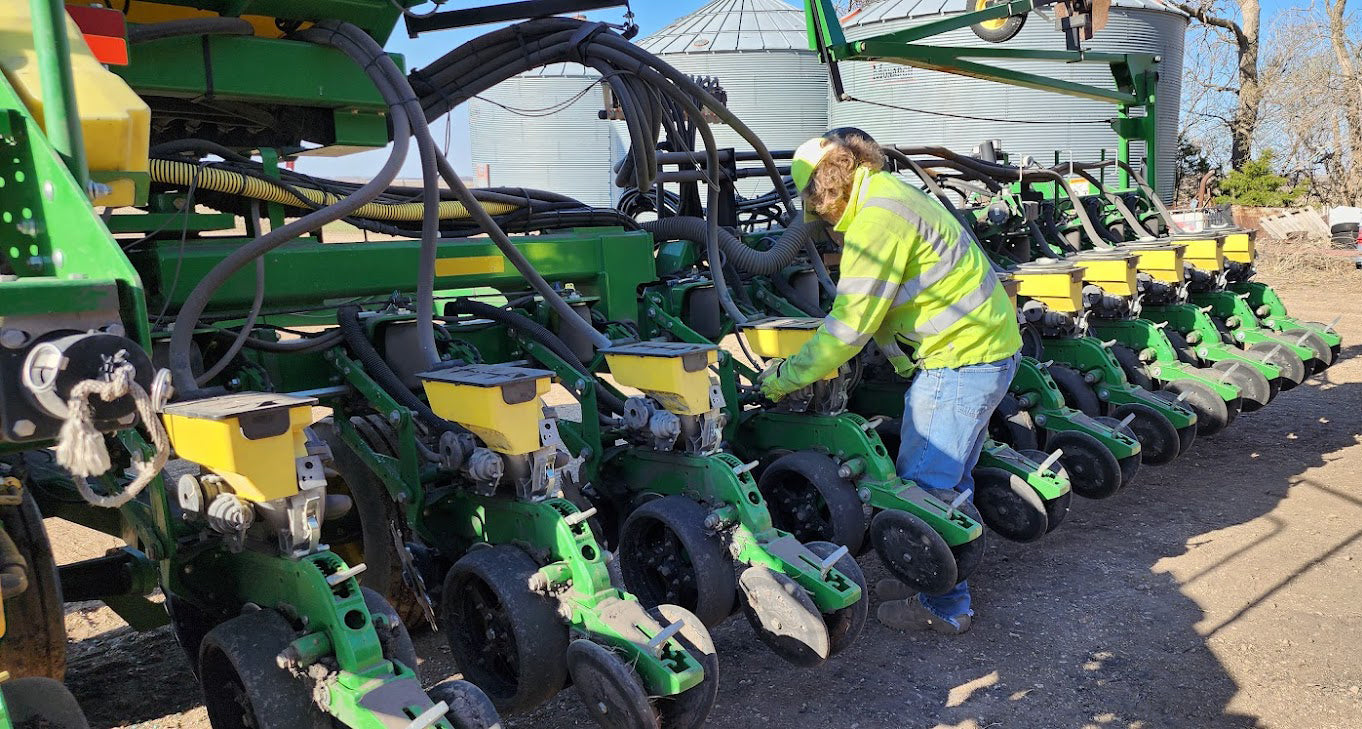

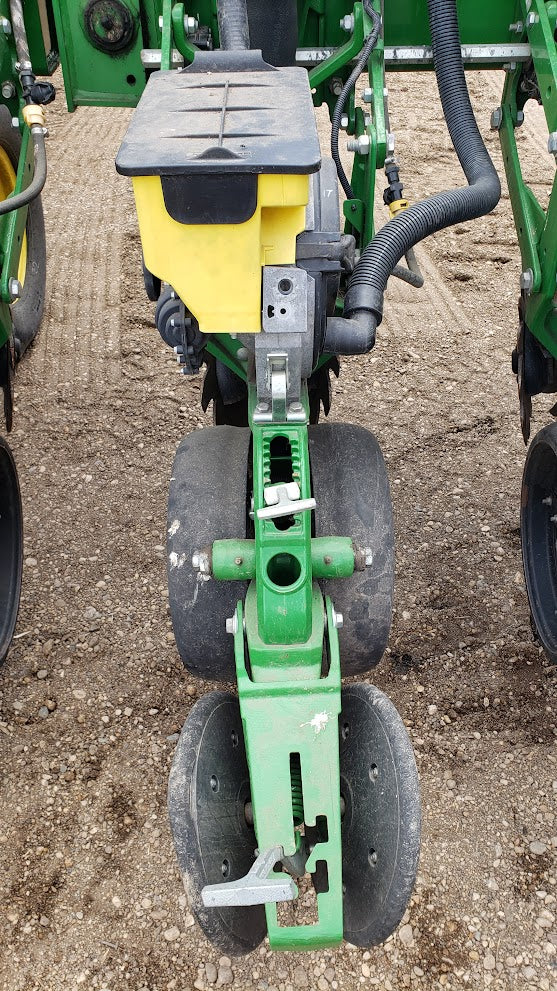

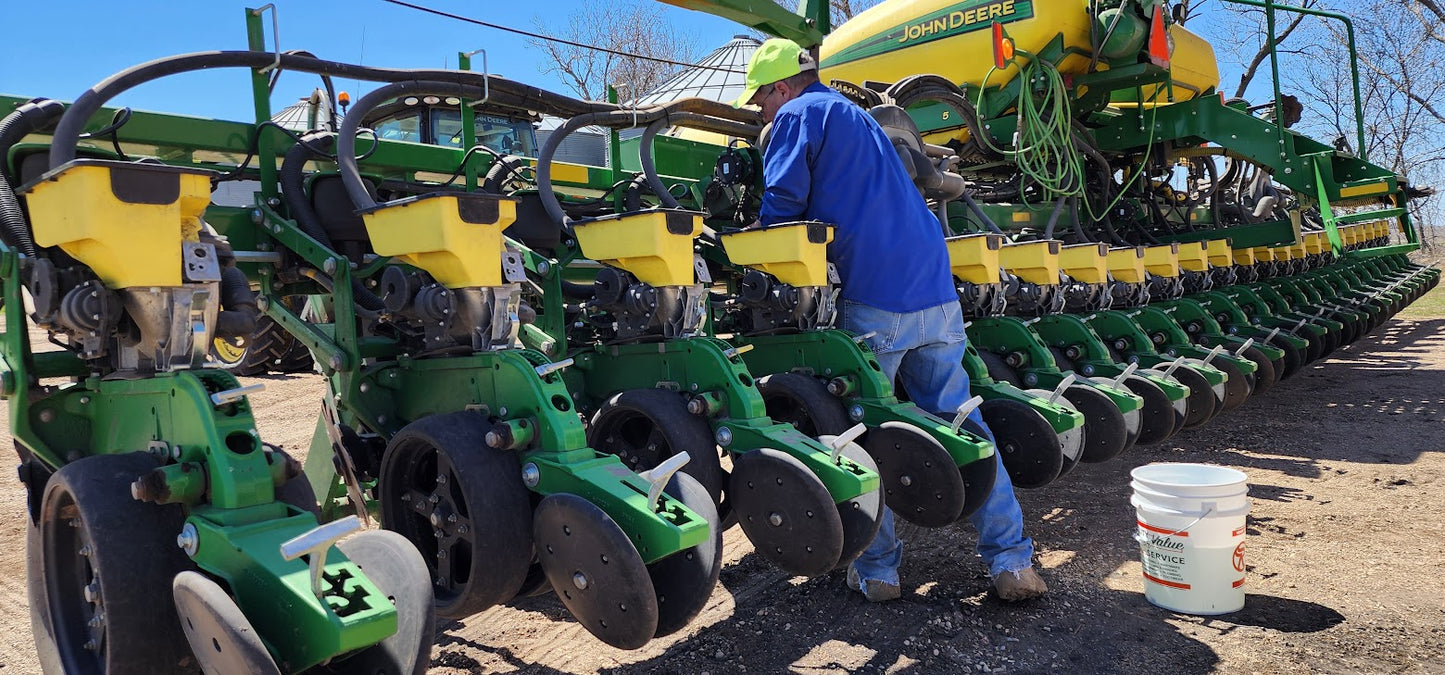

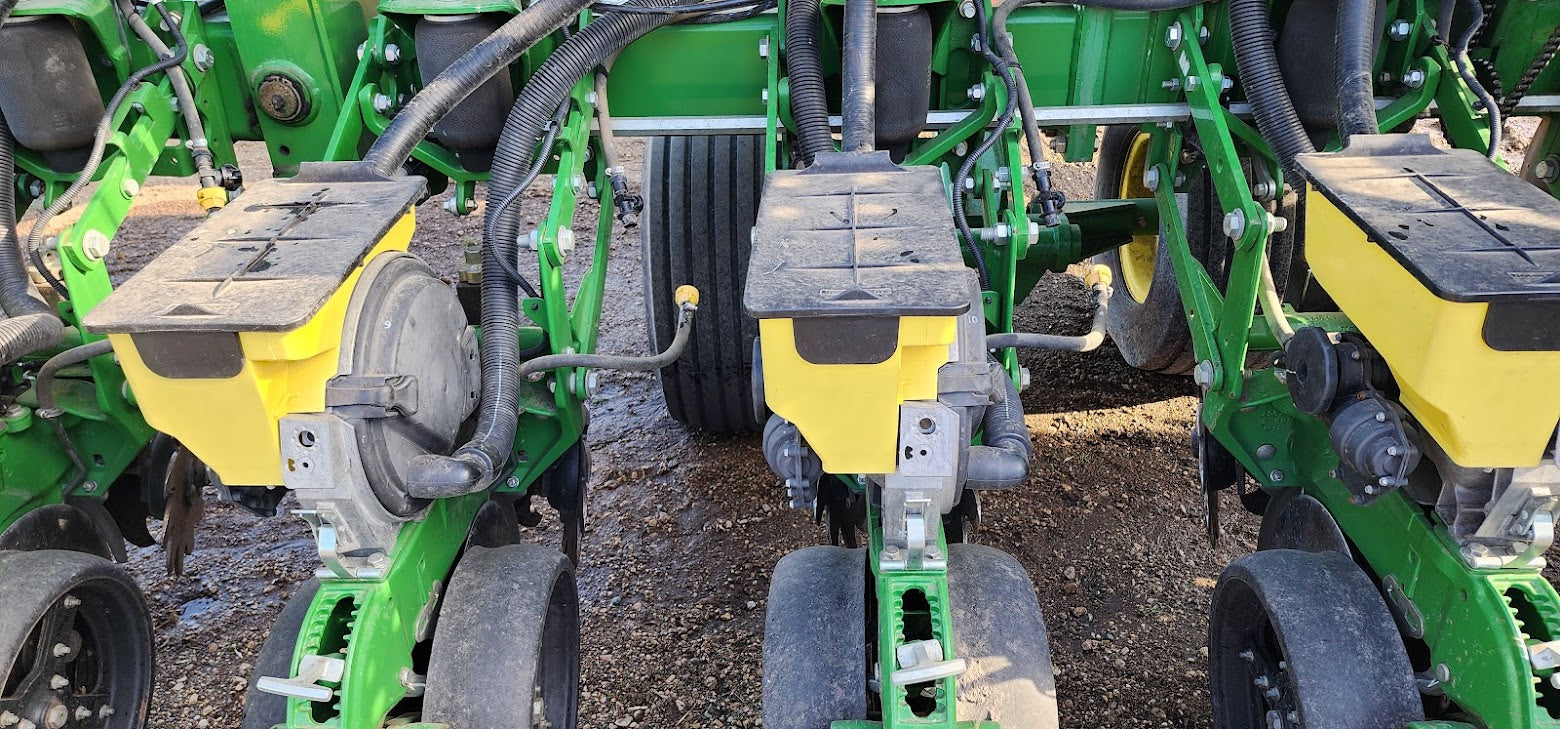

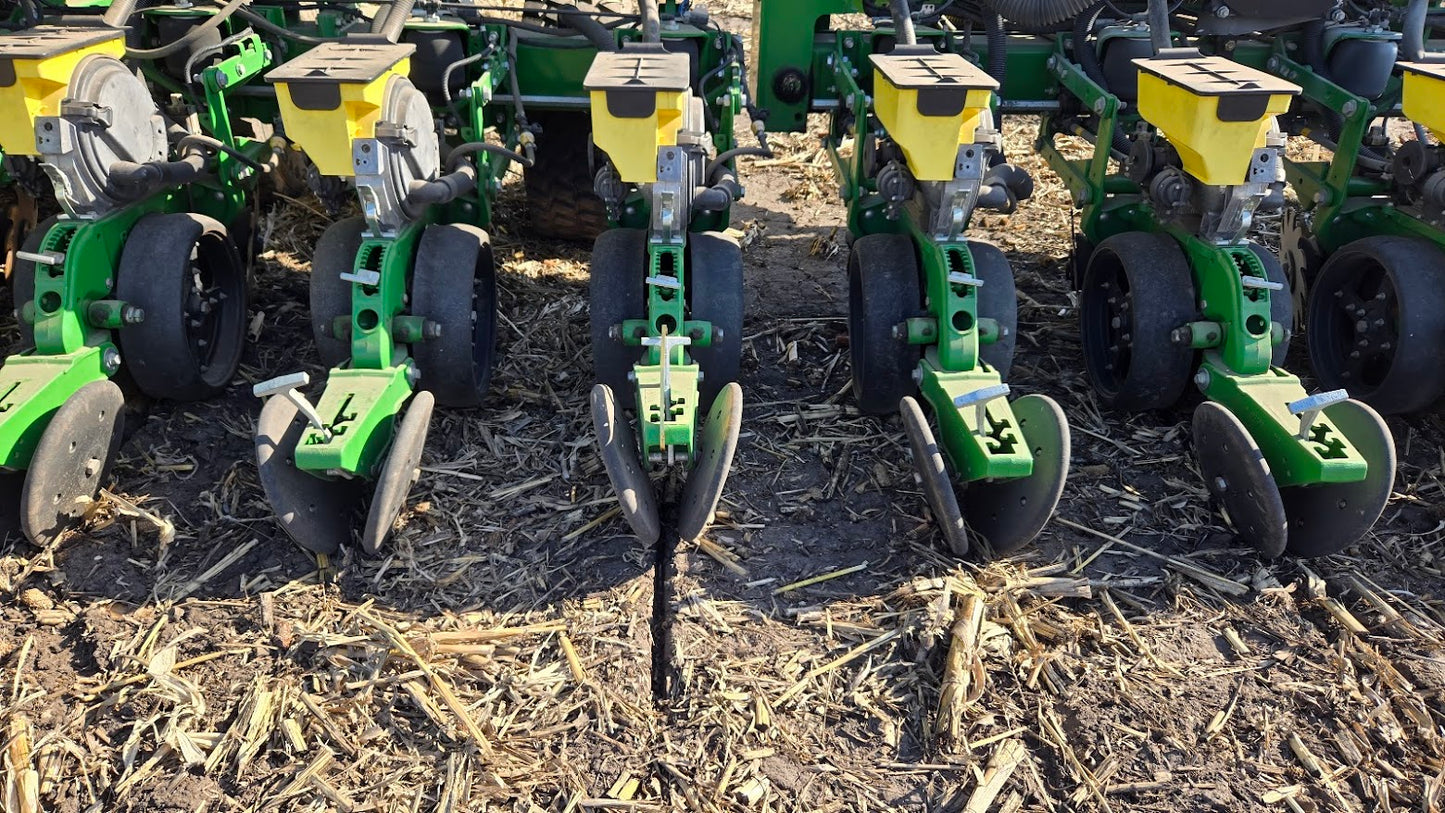

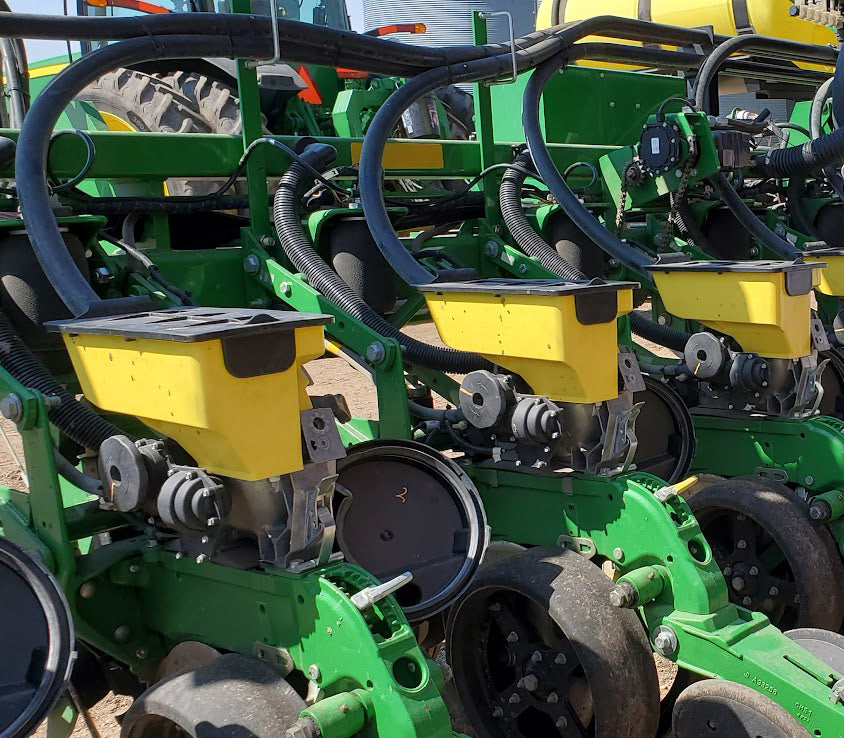

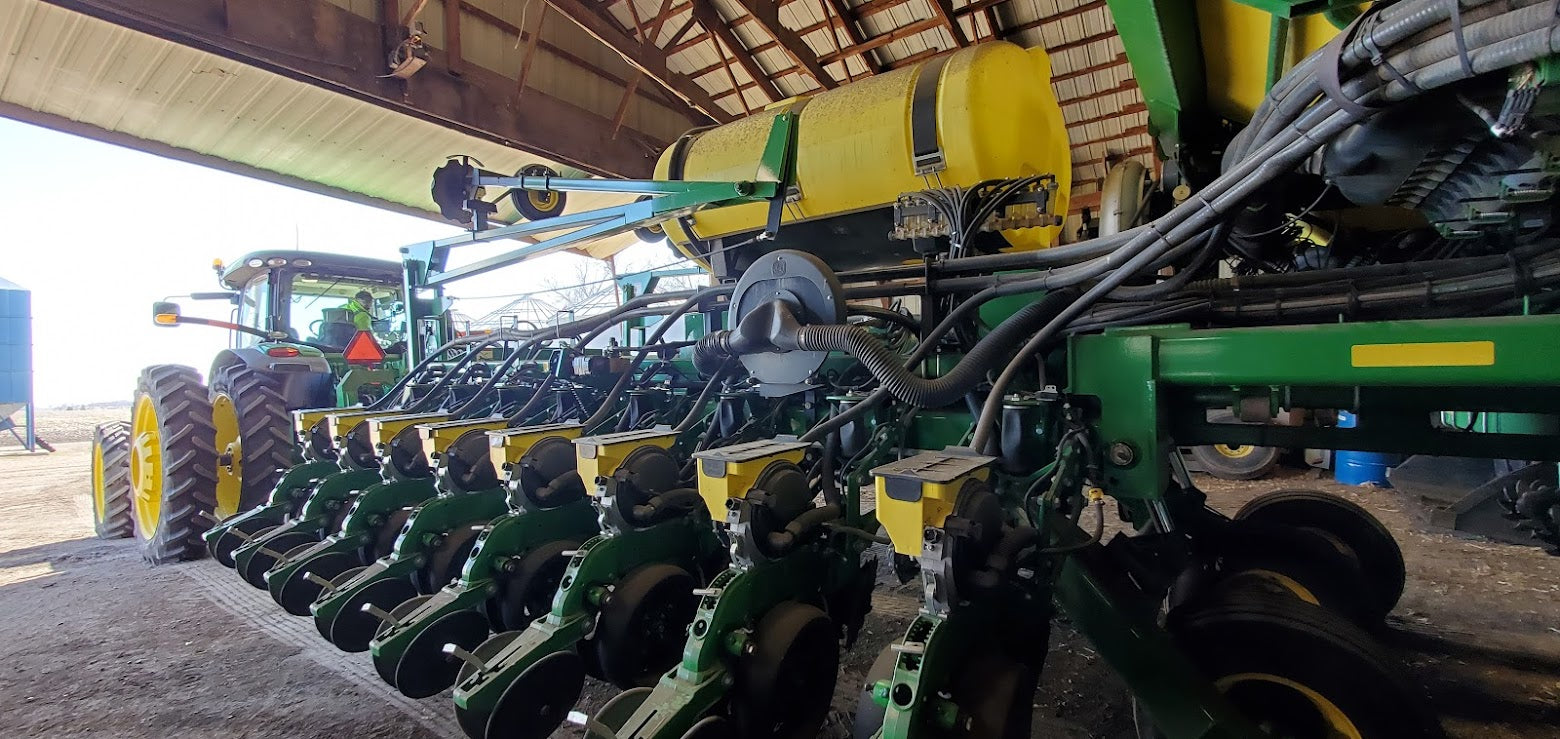

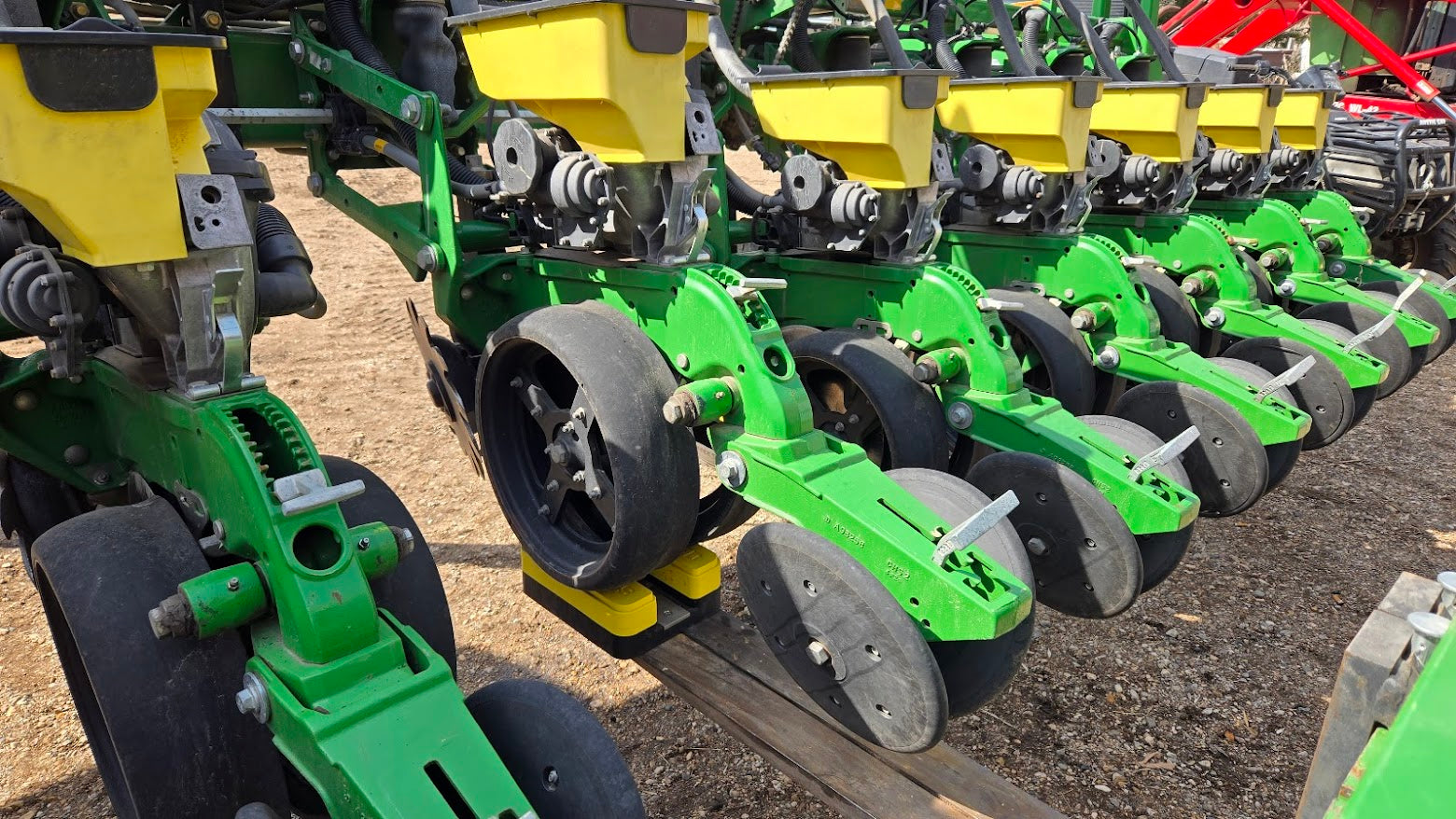

MaxEmerge5 row units with mini-seed hoppers
- ExactEmerge high-speed ready row unit shank

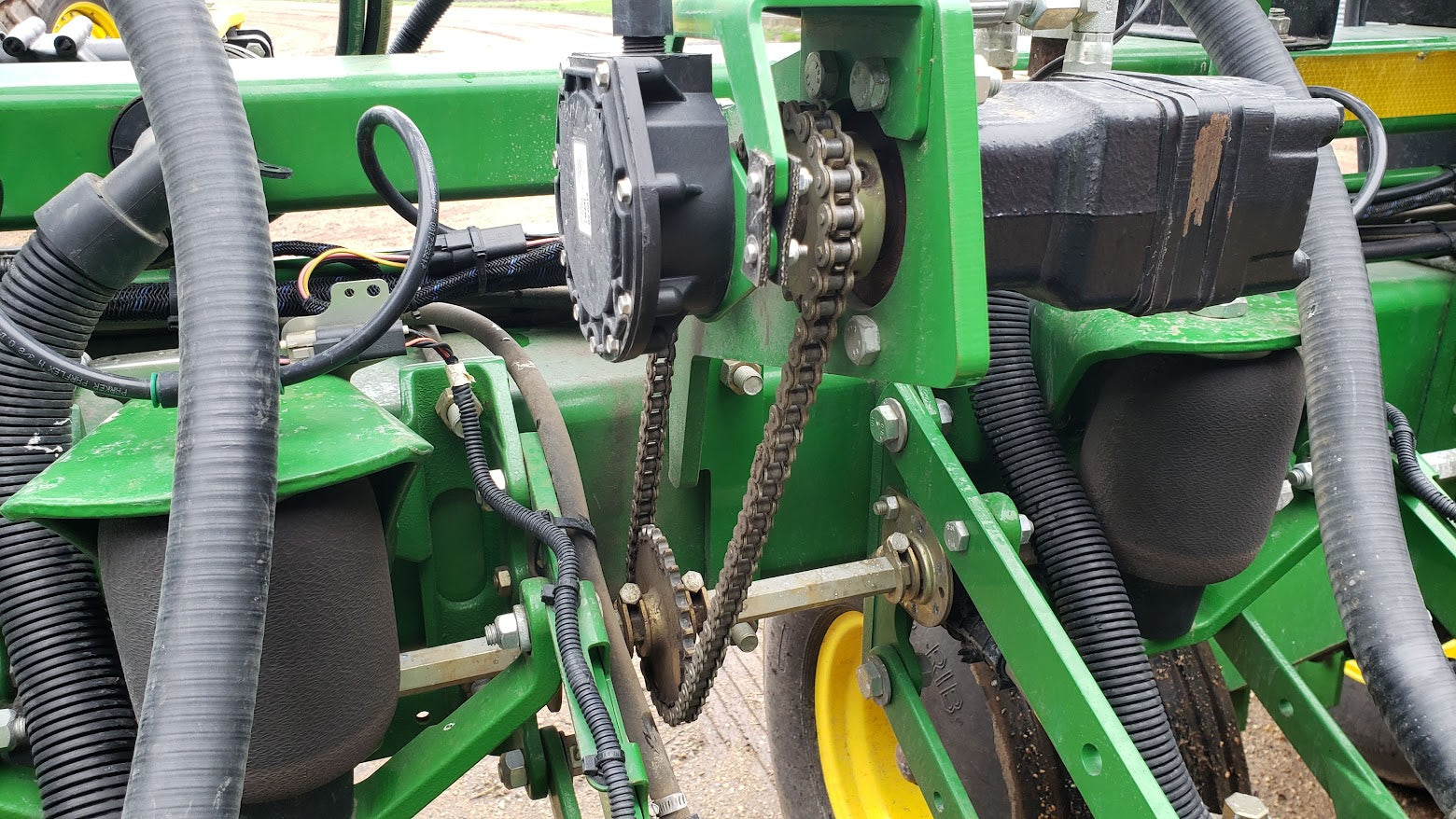

Hydraulic variable rate ProShaft drive seed meters
Category IV drawbar hitch

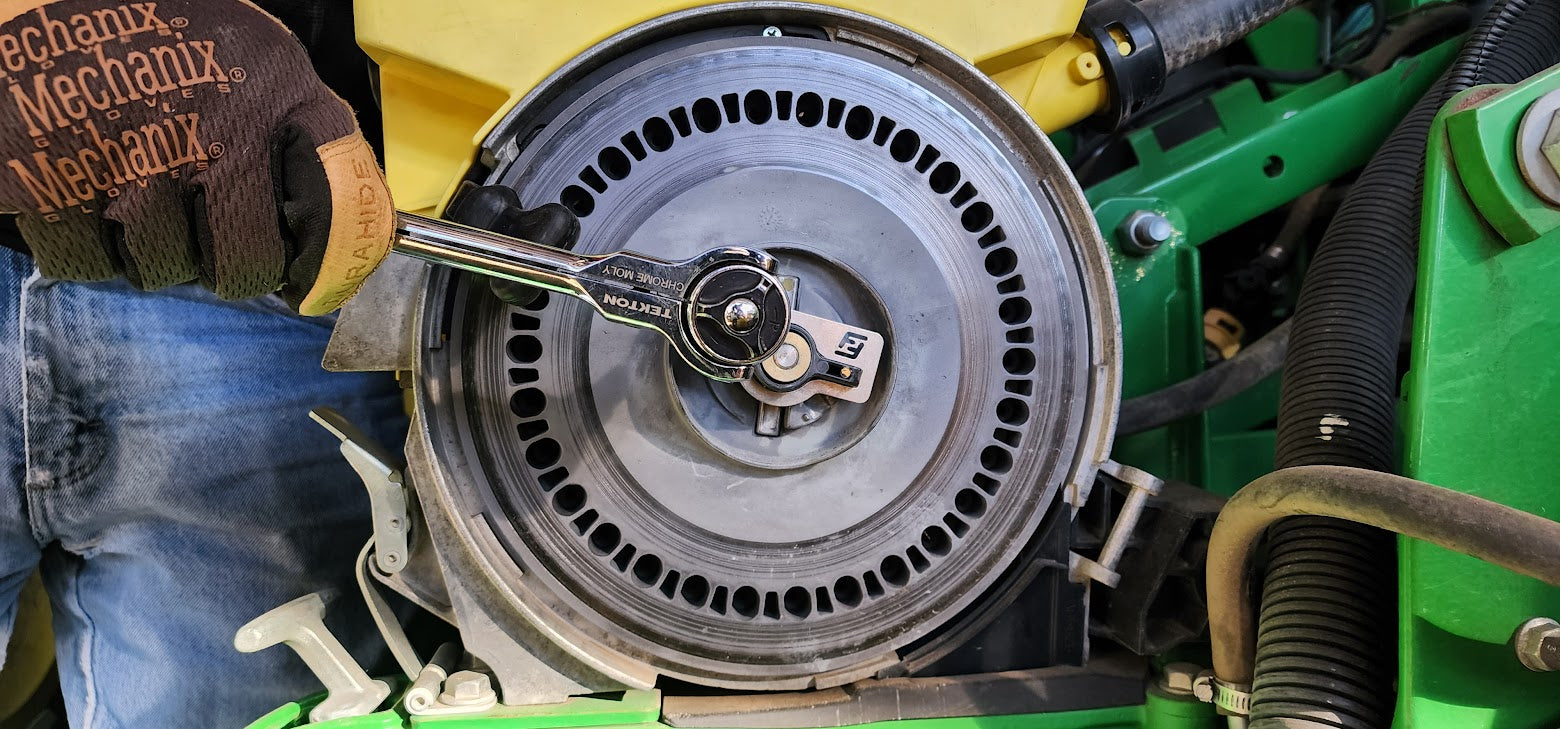

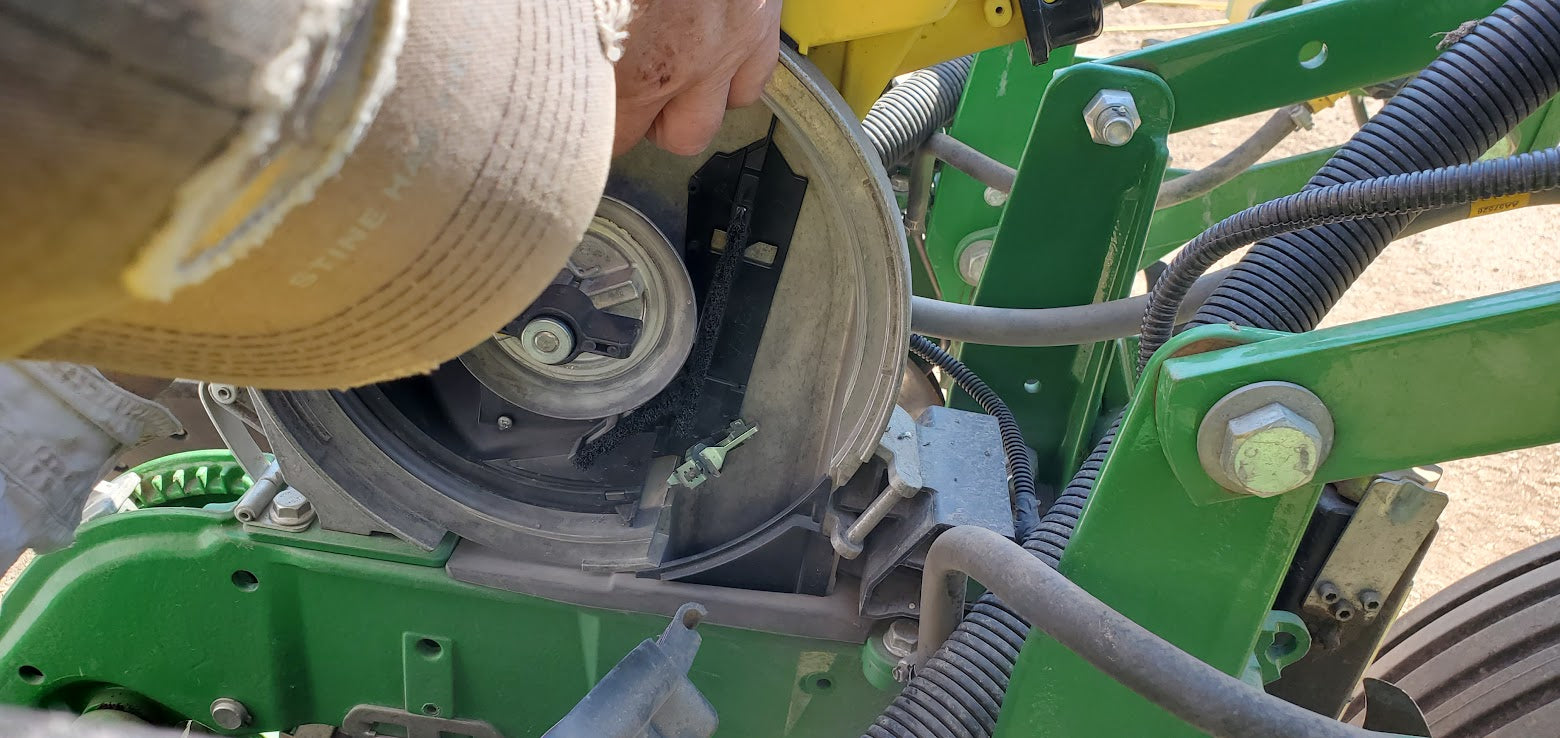

Precision Planting eSet meters (less than 2,000 acres since installation)
- - Set of twenty-four 30-cell Precision Planting eSet corn discs
  - Set of twenty-four 90-cell Dakota Precision Planting single row soybean discs (105 acres)
  - 99+% singulation with any seed size/shape including extreme range with a mix of test plot leftovers
Deere AccuCount seed sensors

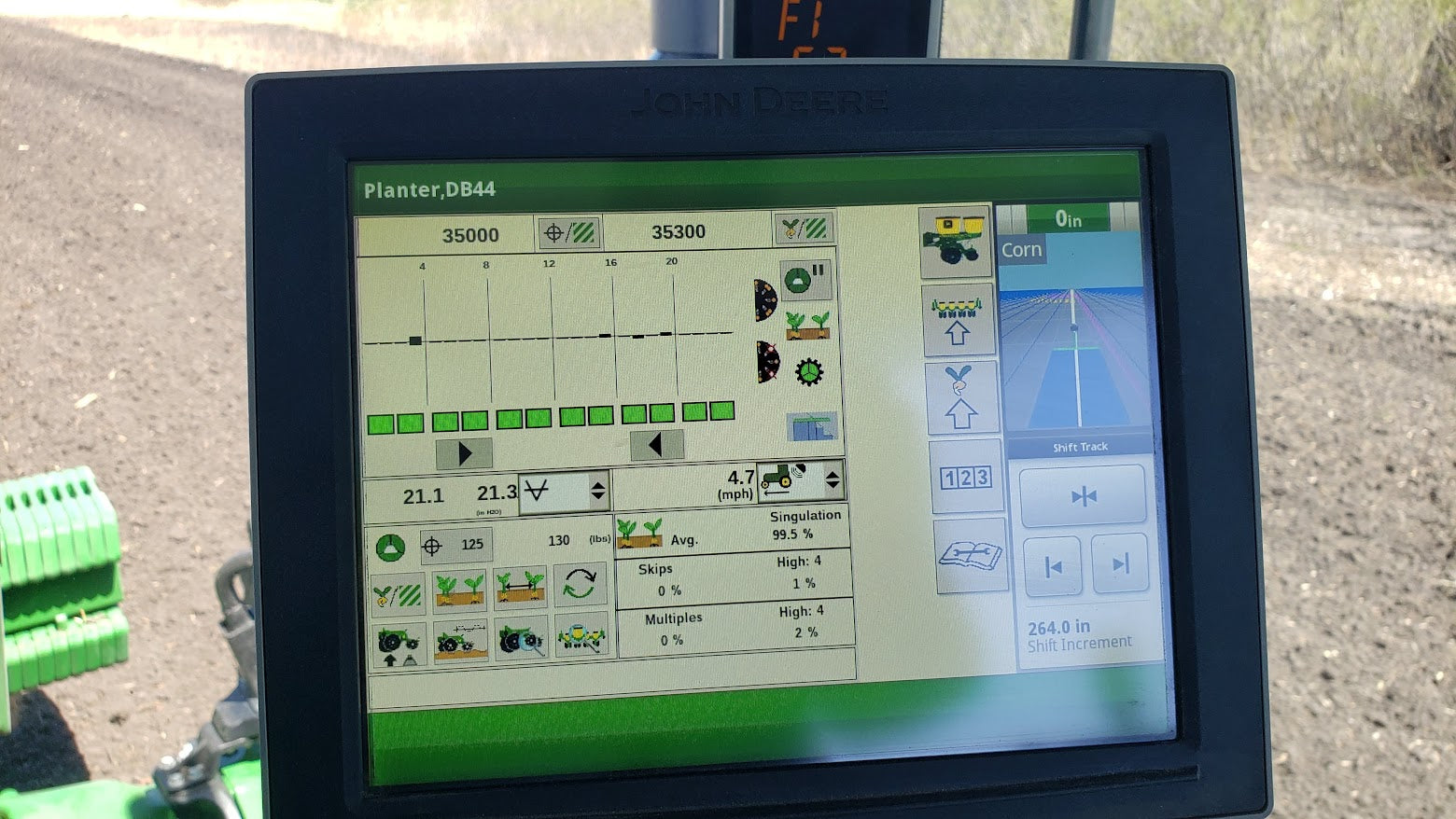

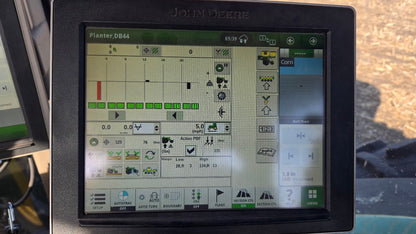

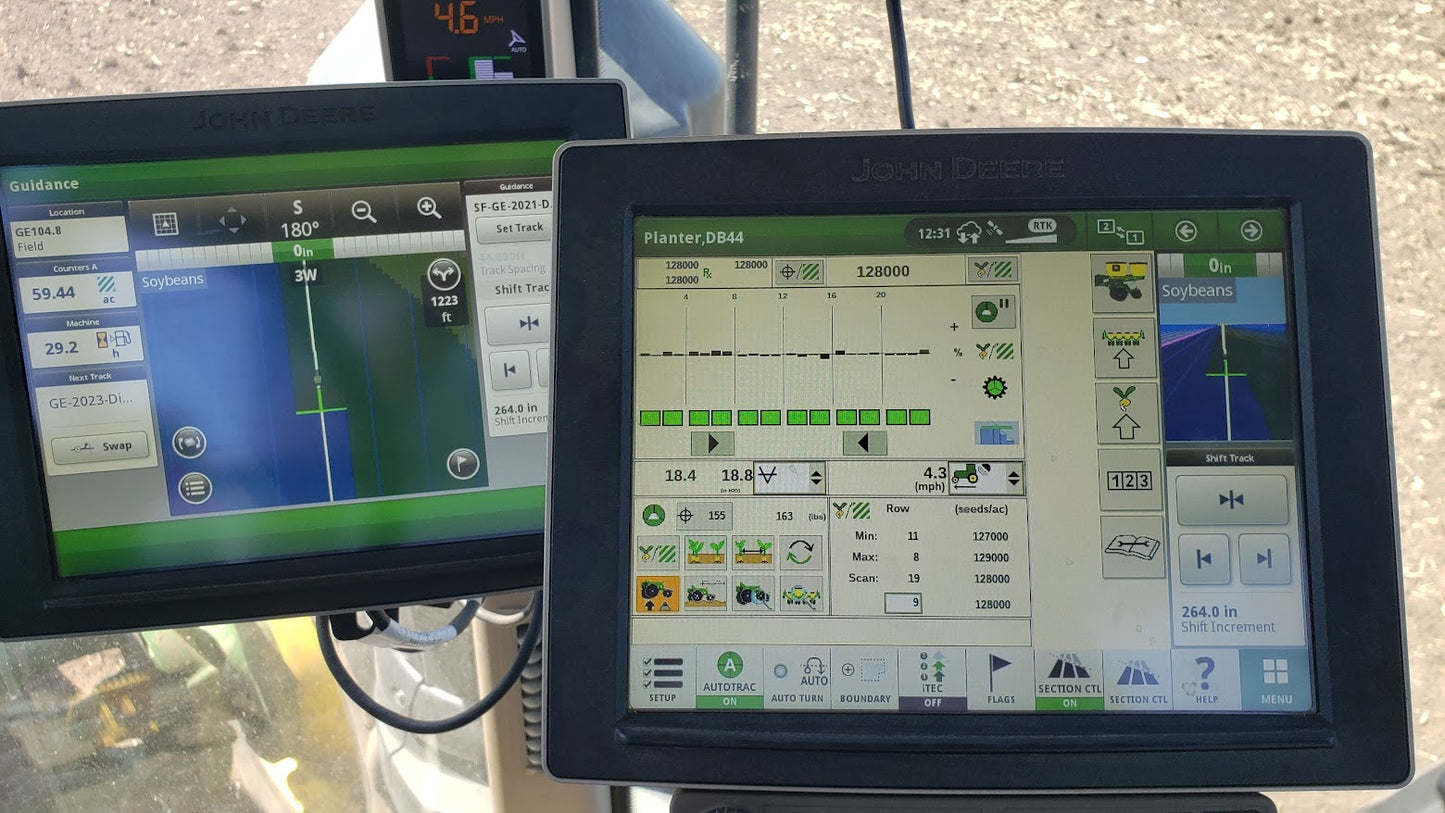

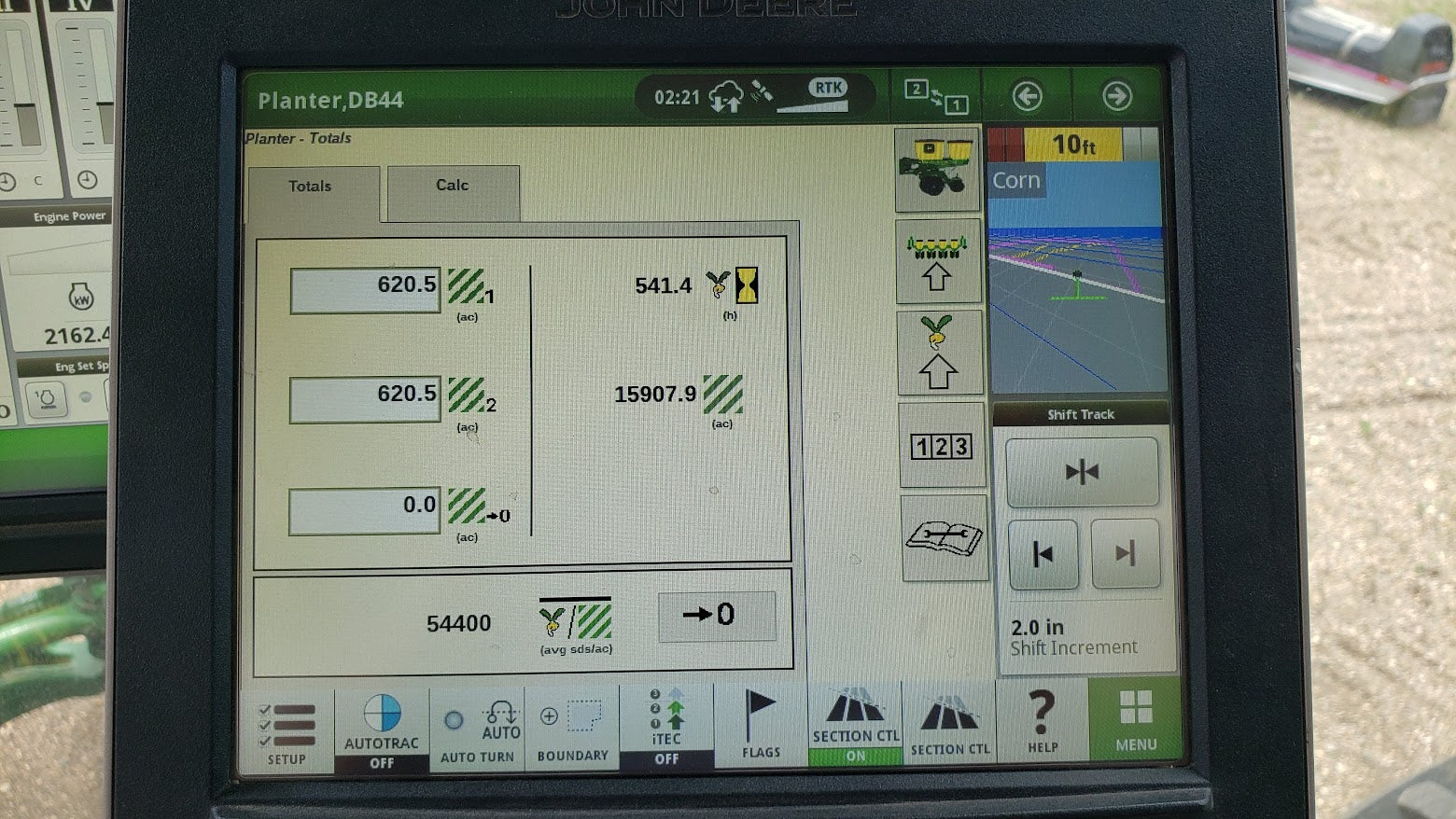

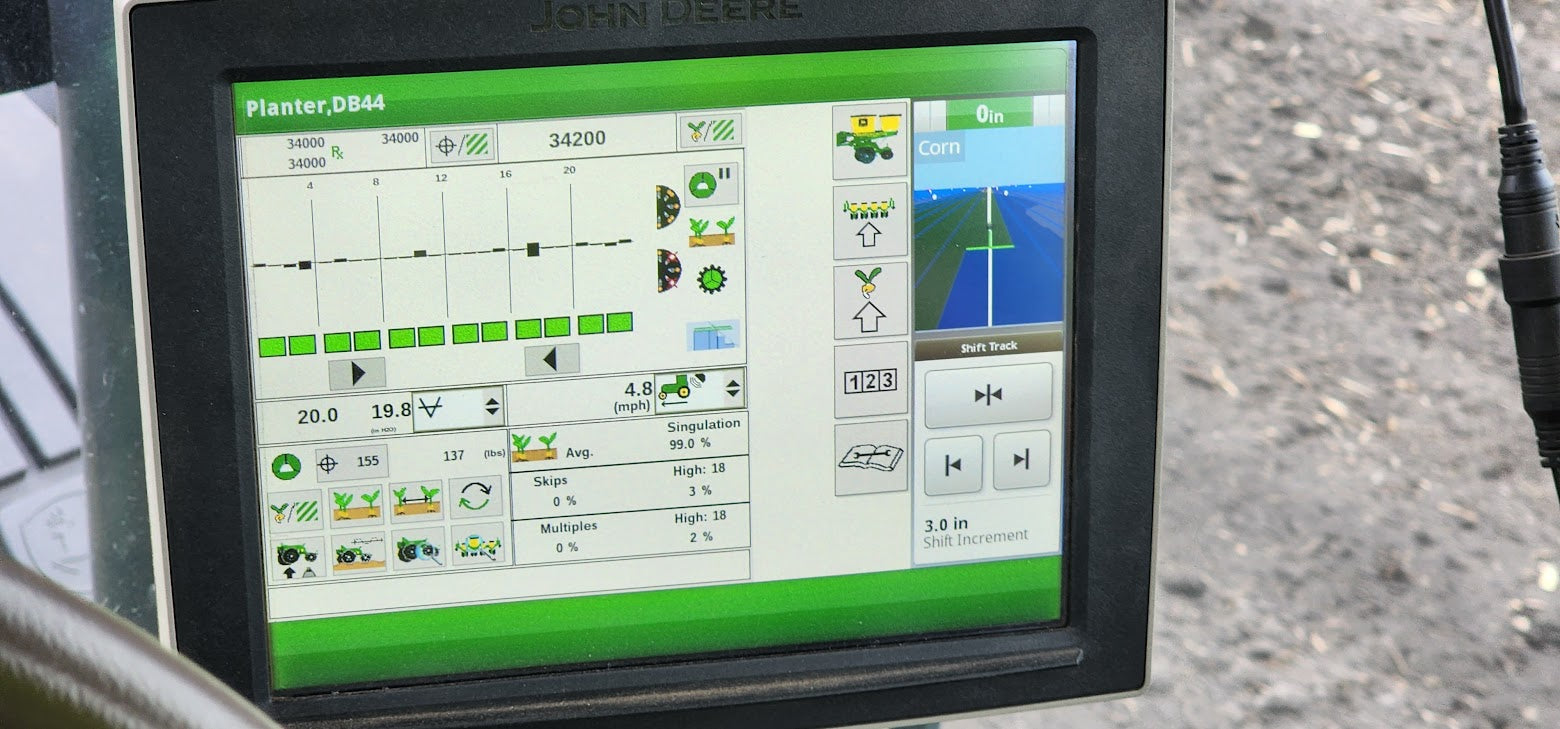

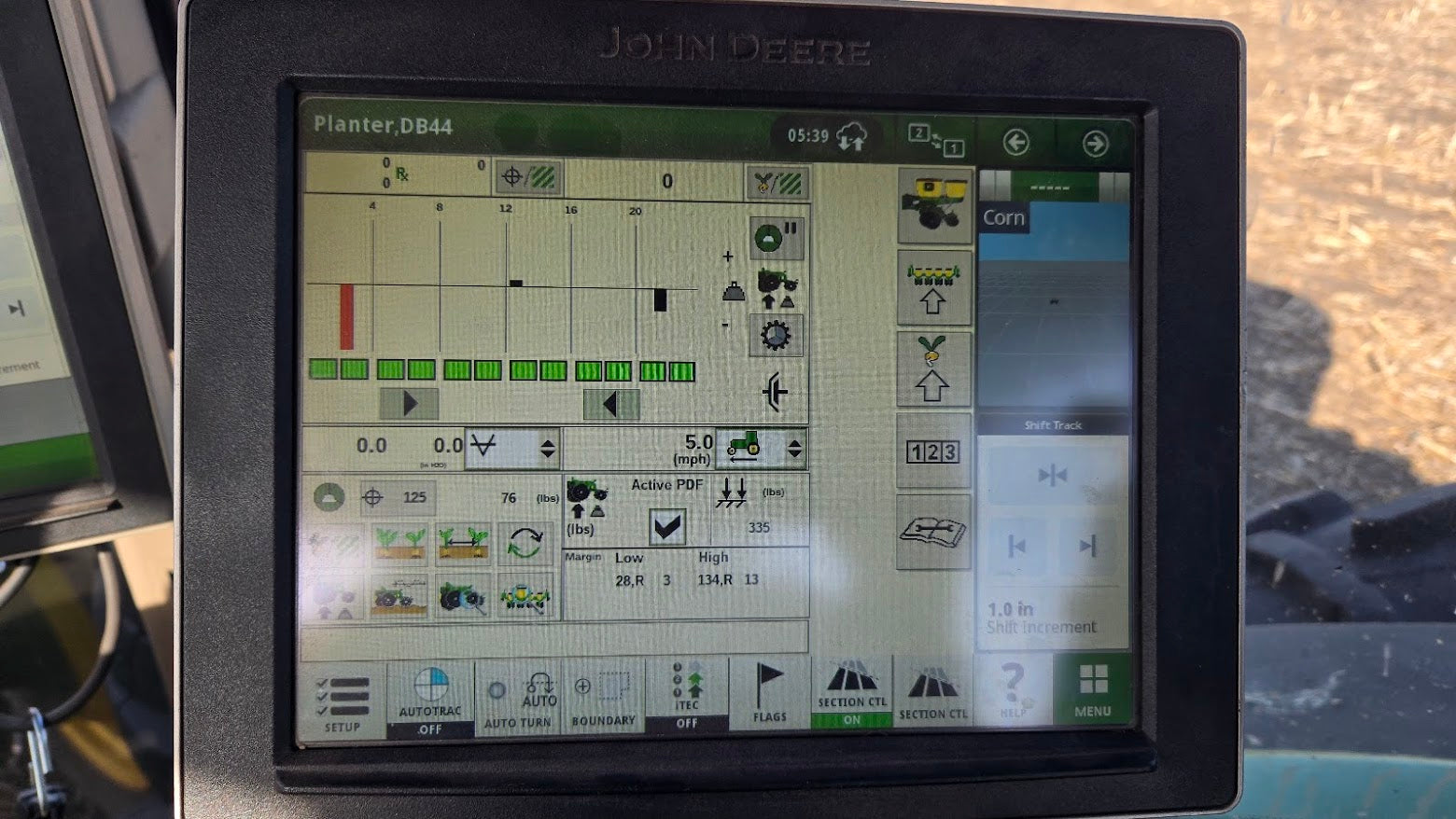

SeedStar XP planter monitor software
- Graphical monitoring for each individual row
  - Population, singulation, spacing, Coefficient of Variation
- Adjust pneumatic downforce and margin on the fly from in the cab
- Measures row unit ride quality

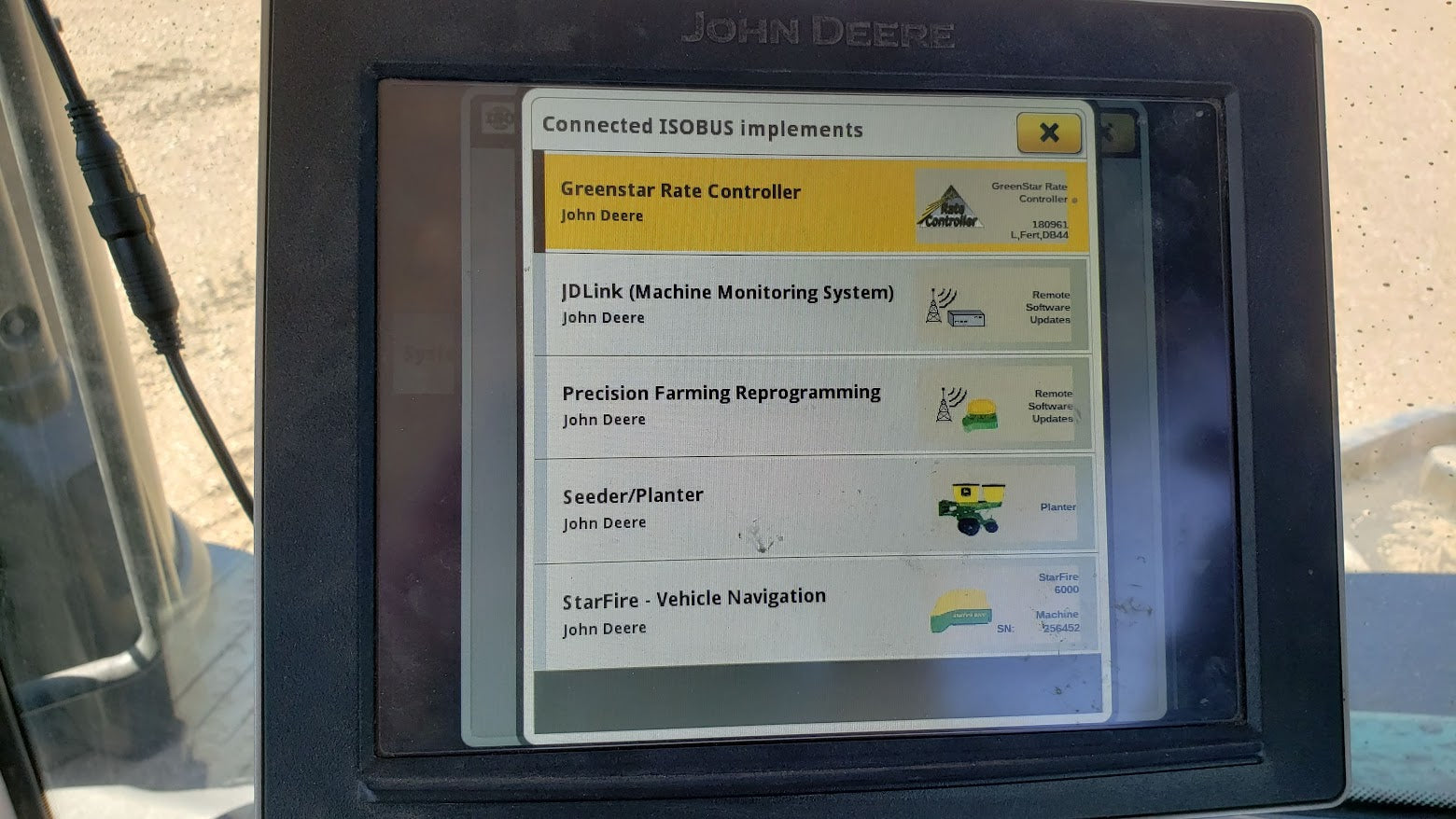

- 4600 armrest display in tractor used for planter monitor
- Compatible with GreenStar 2 (2006) through Greenstar 5 (2026) displays

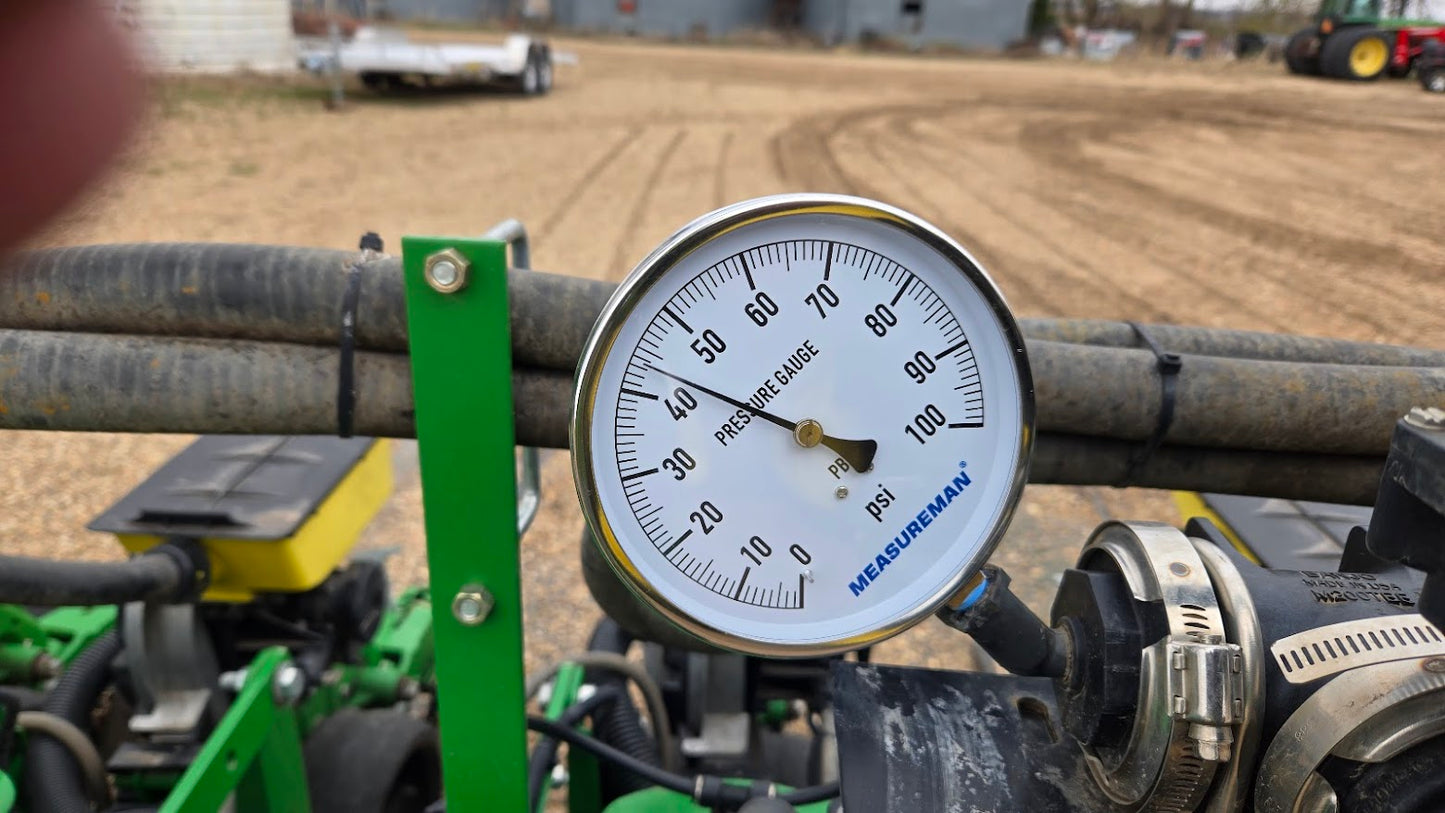

Active pneumatic downforce in three 8-row sections

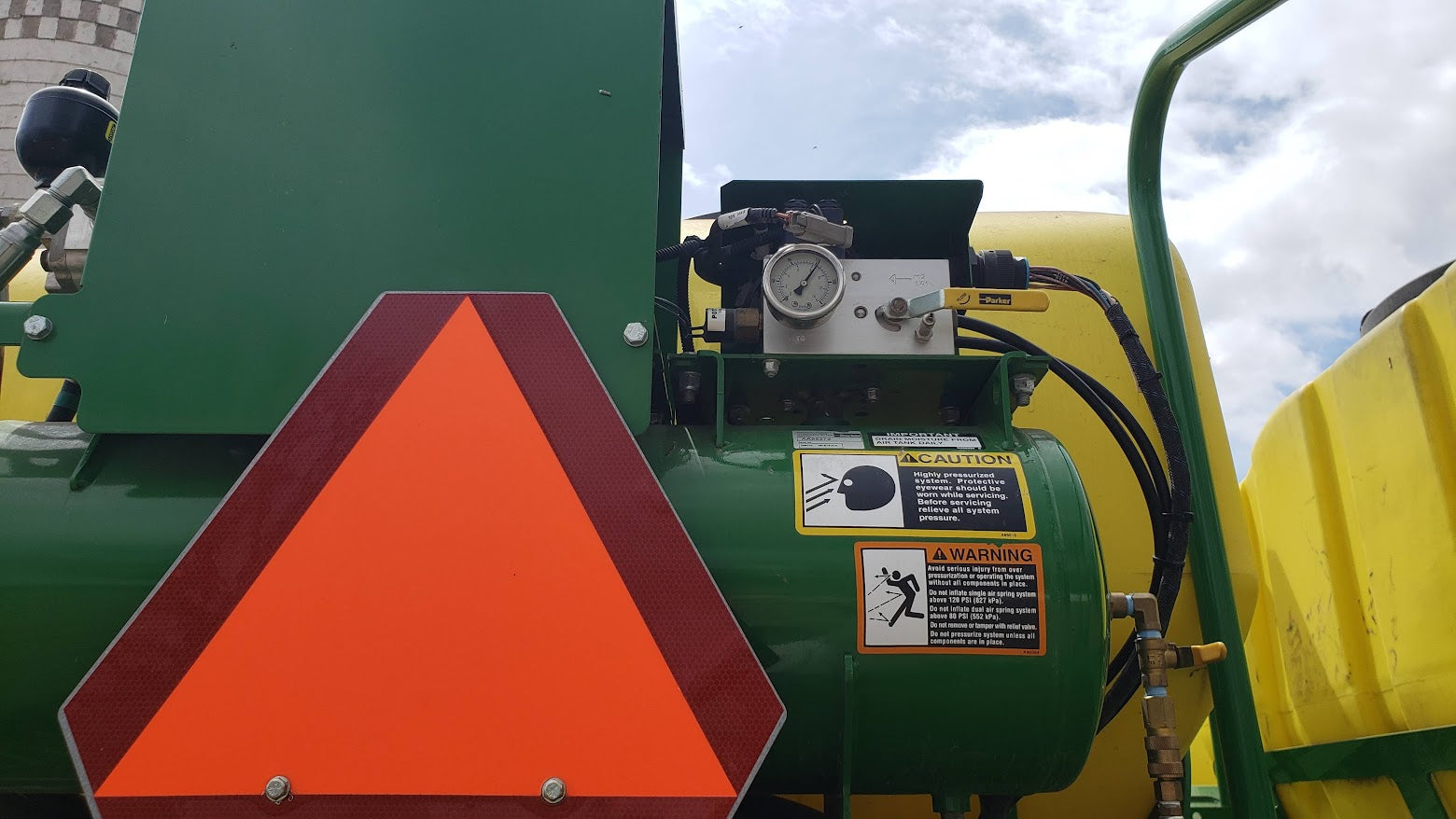

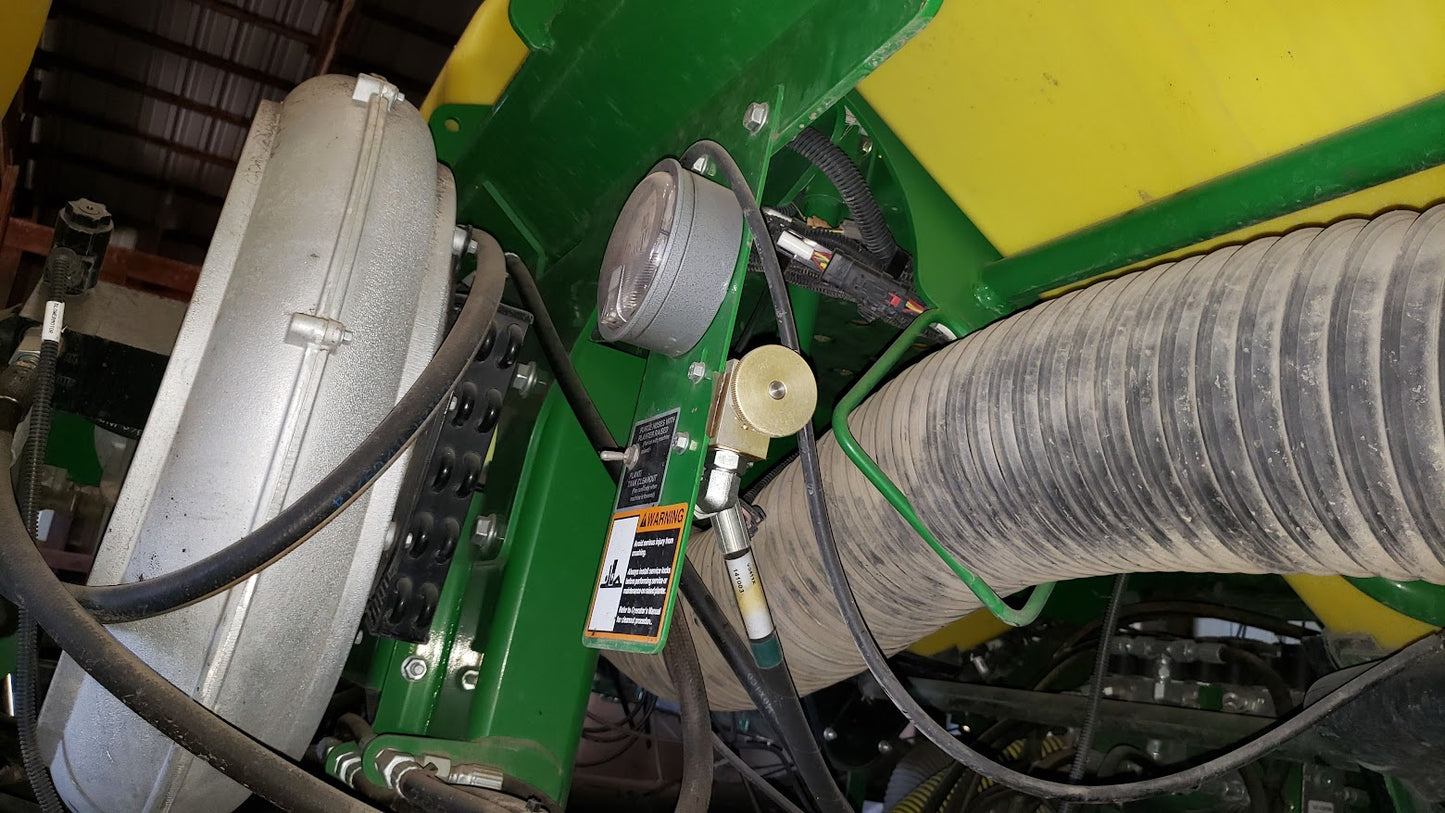

- Hydraulic driven air compressor mounted on rear of planter
- 50' air hose, valve, and quick coupler for airing tires or blow nozzle

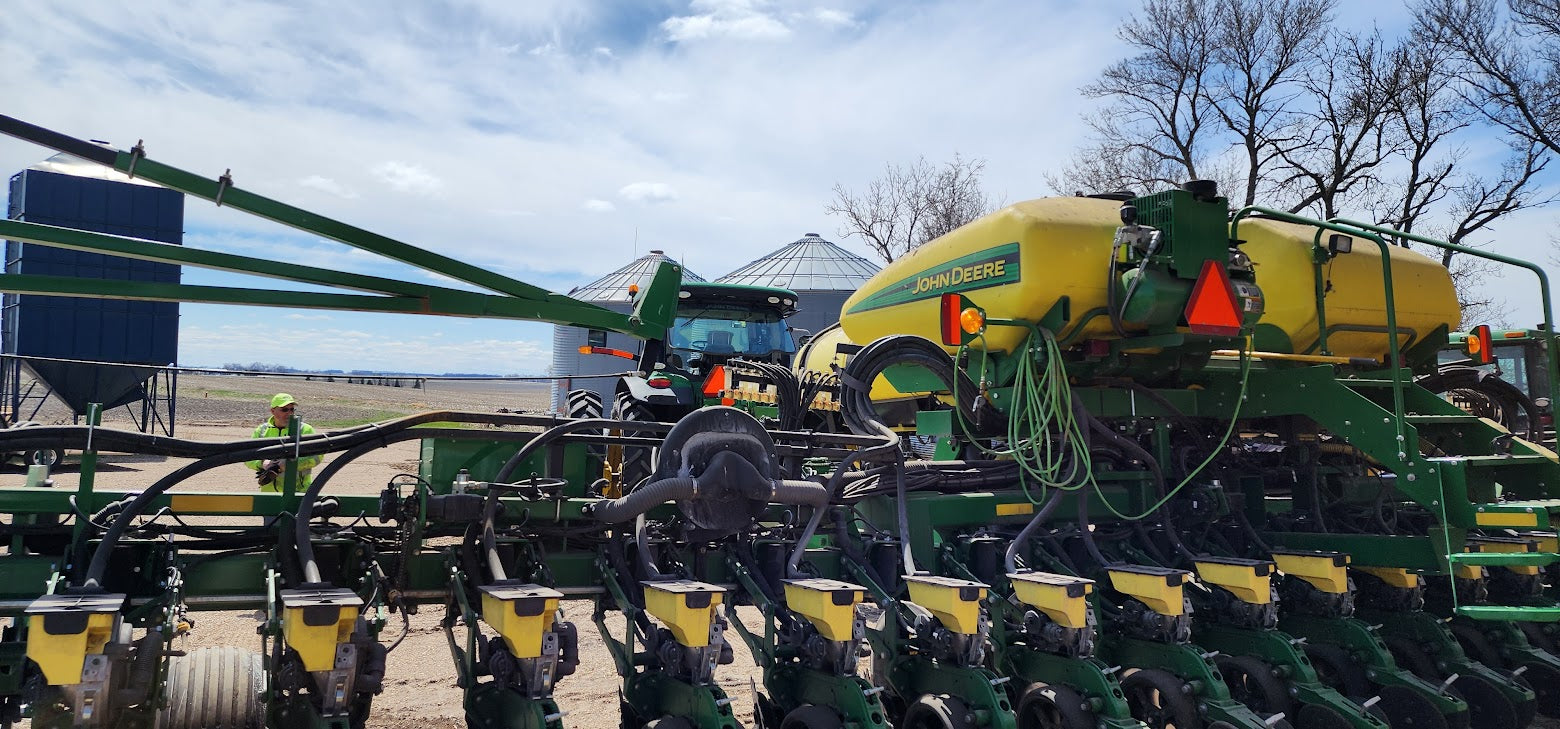

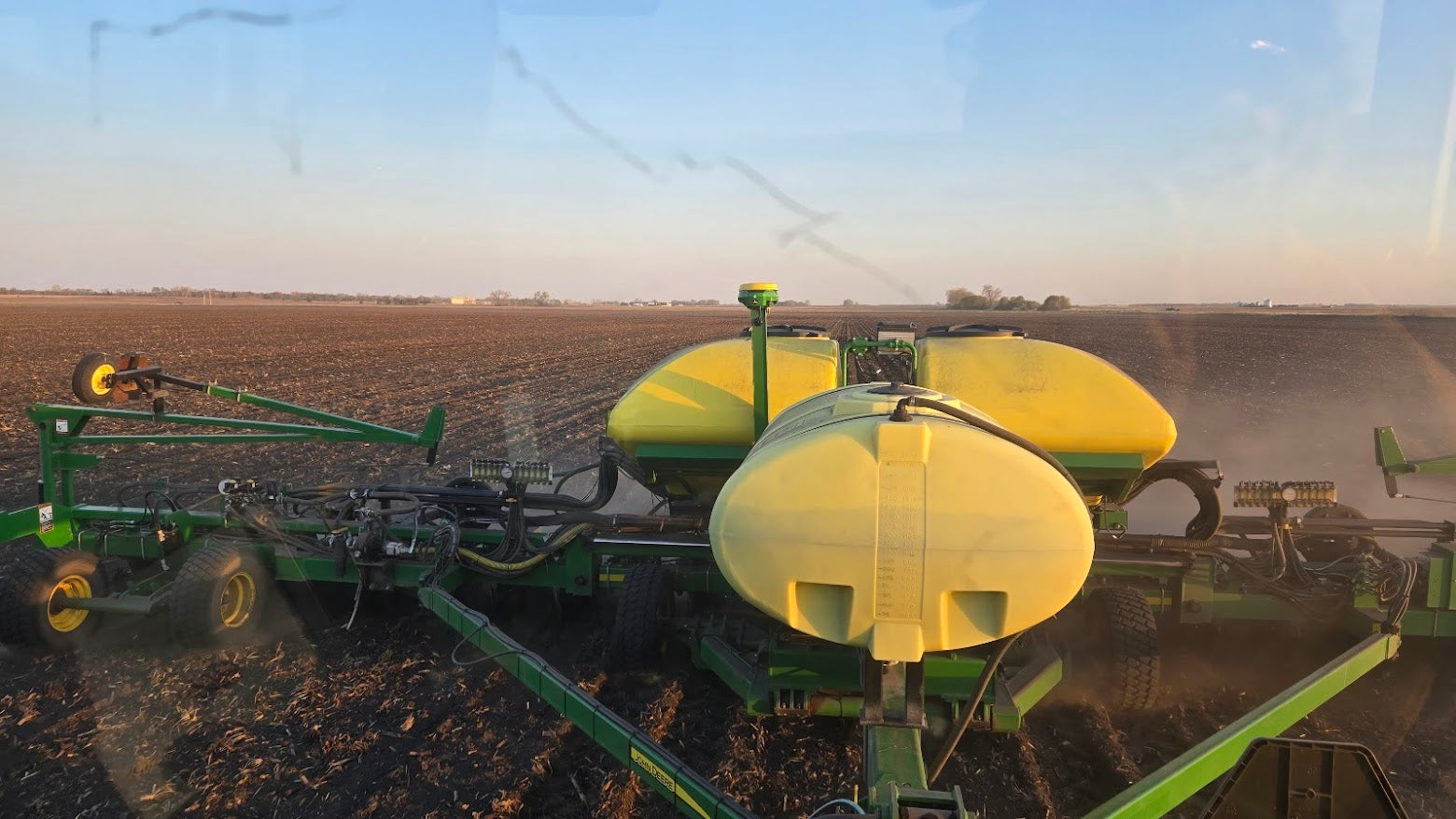

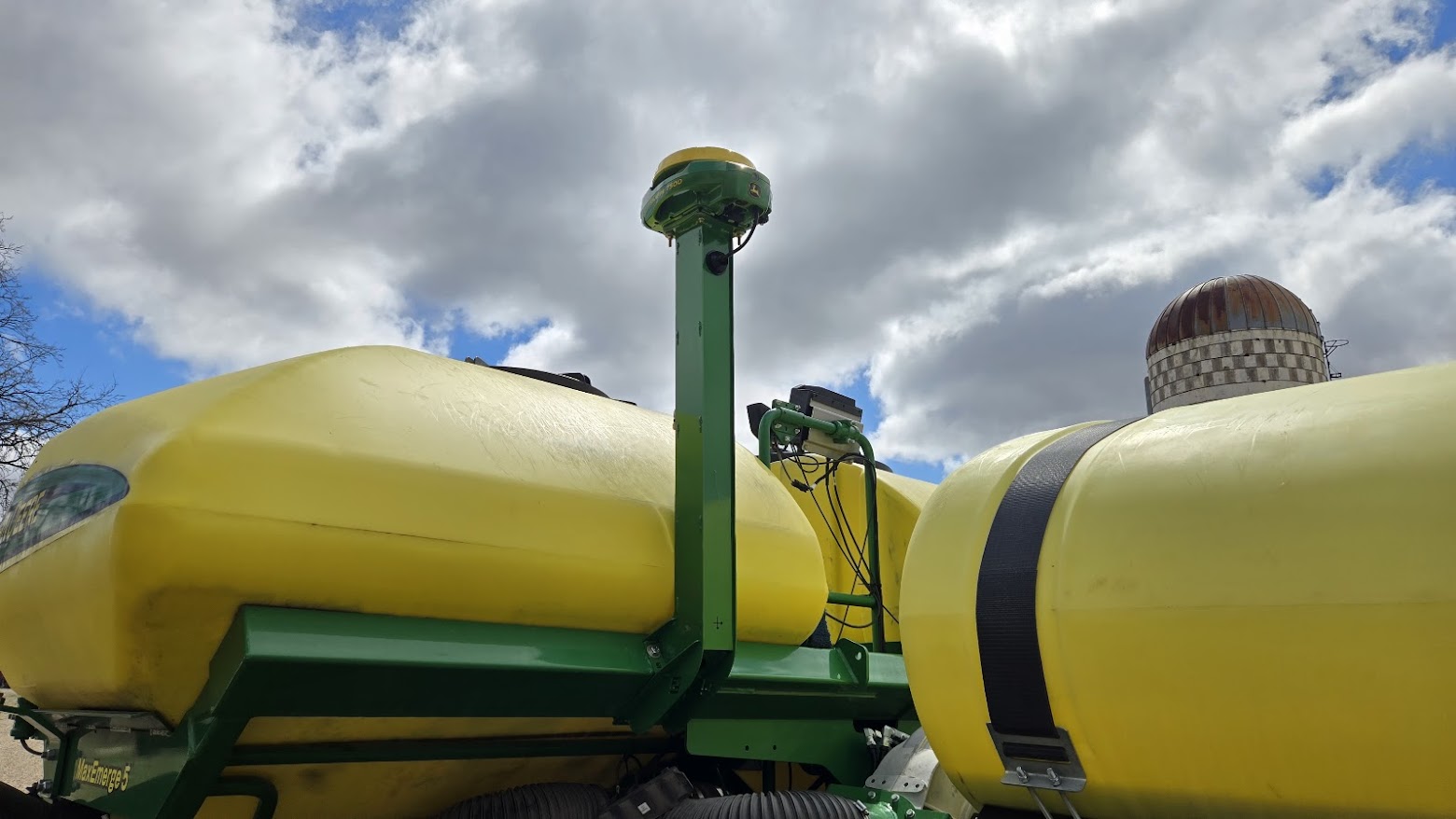

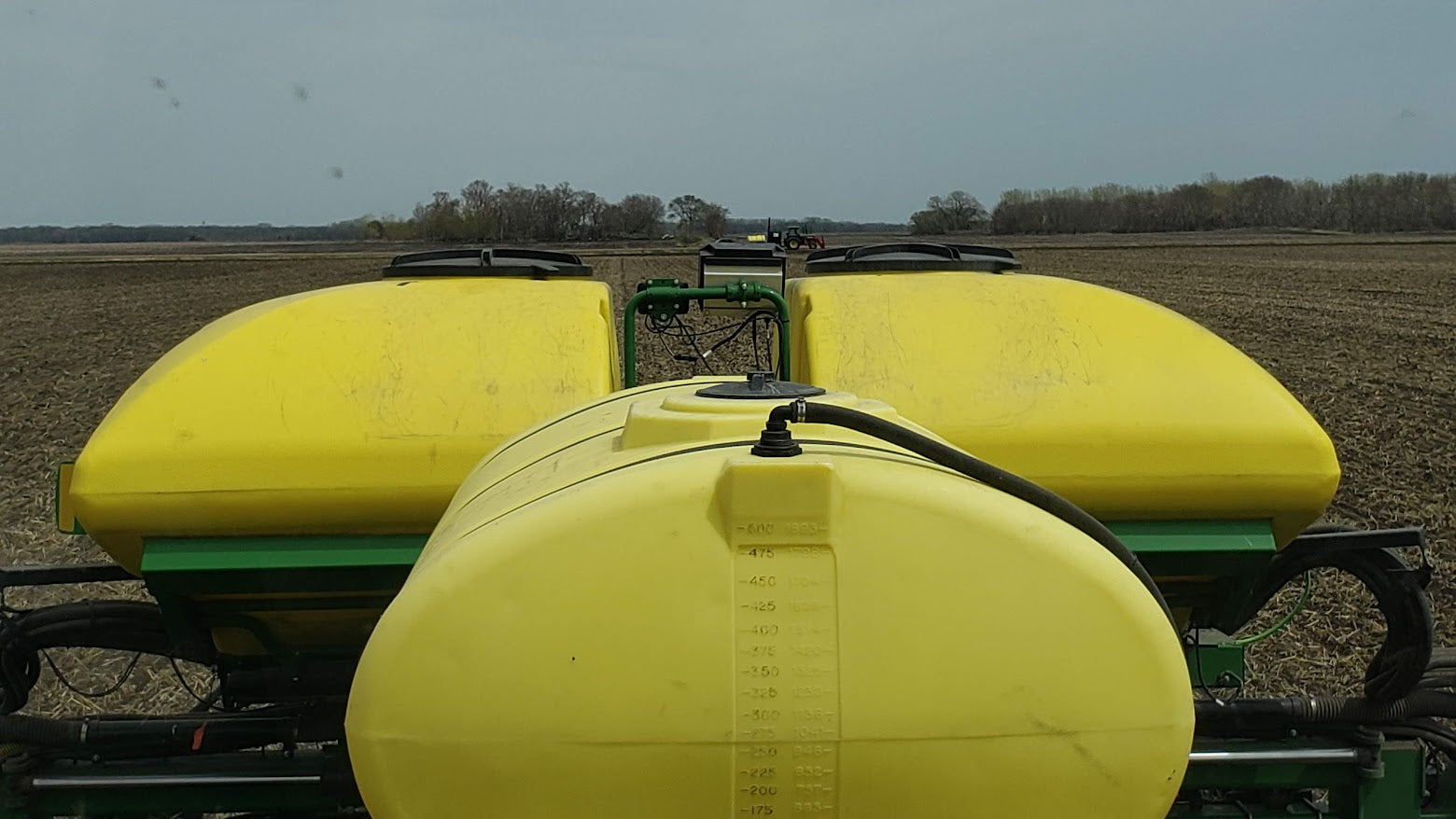

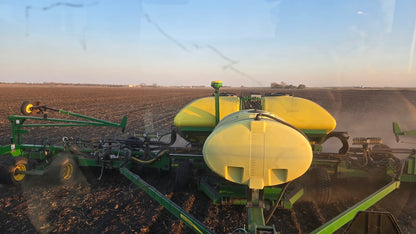

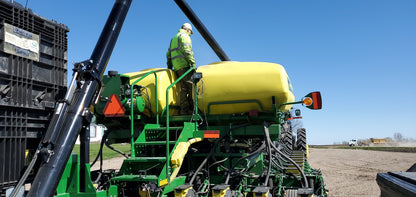

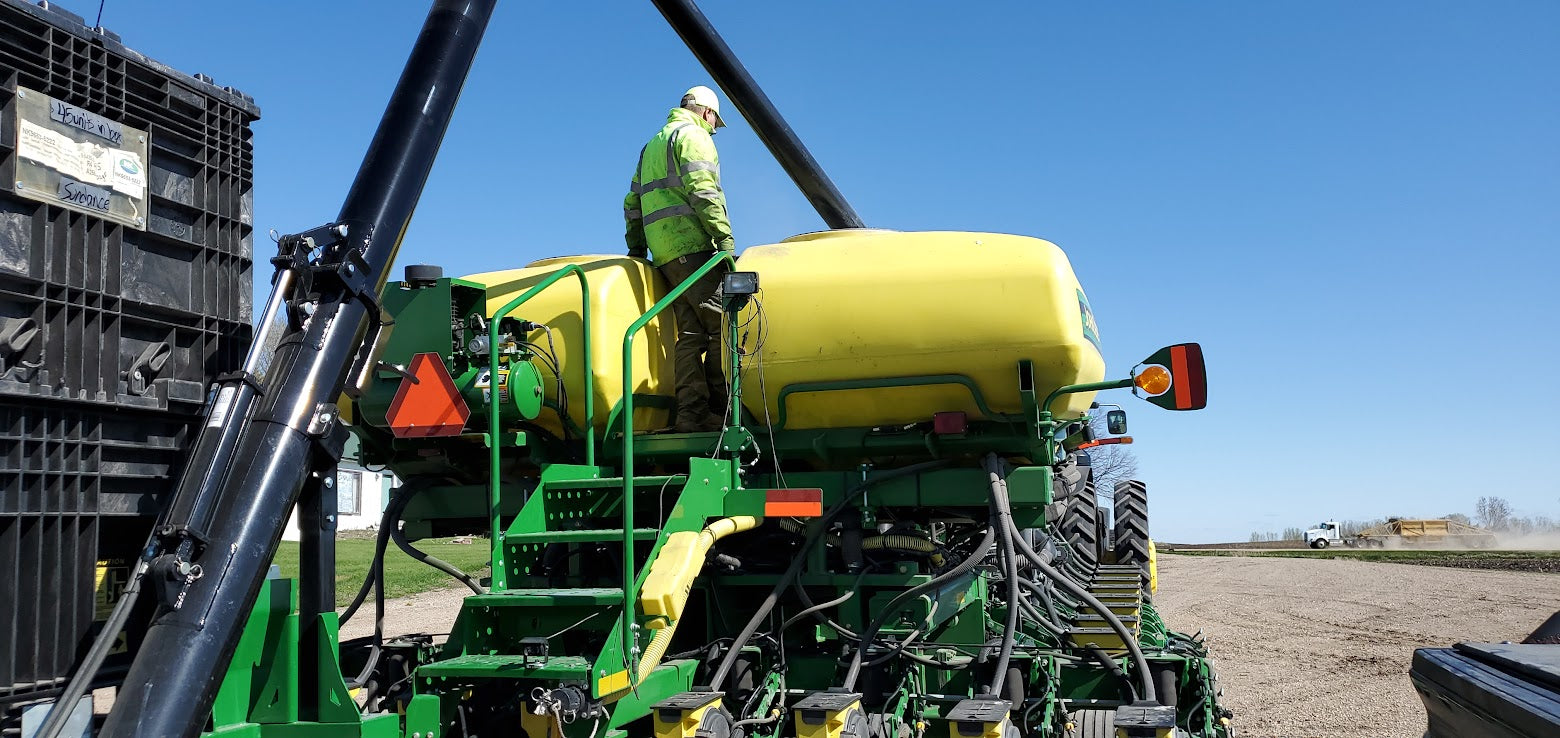

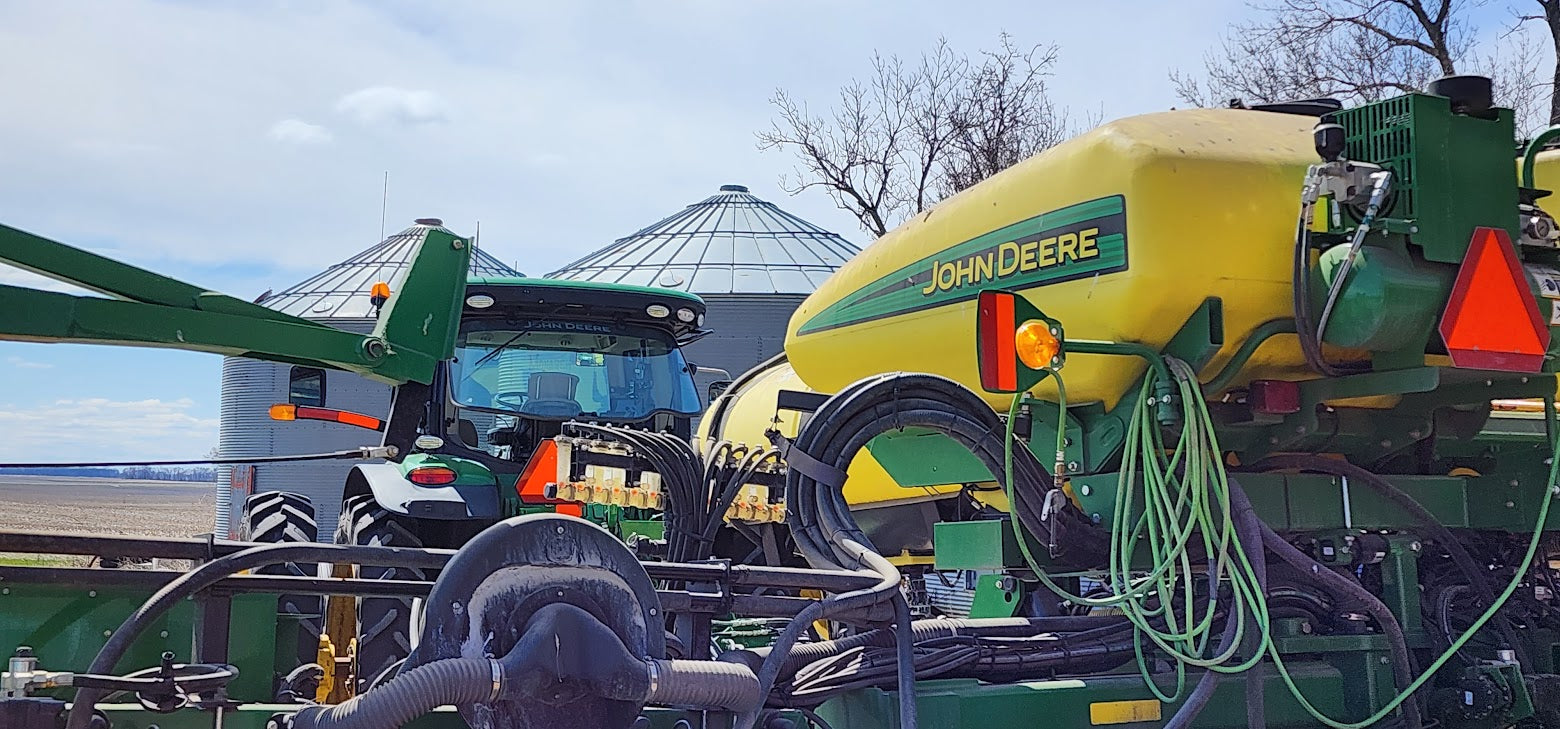

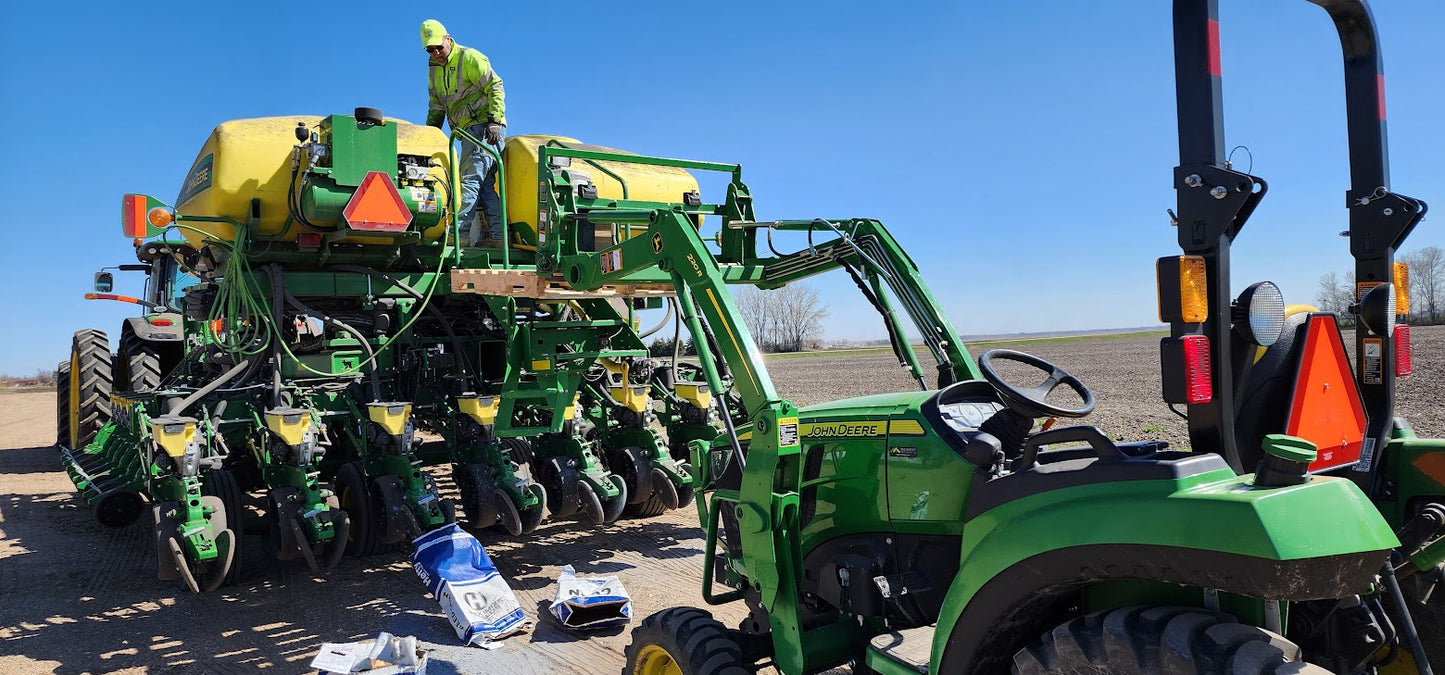

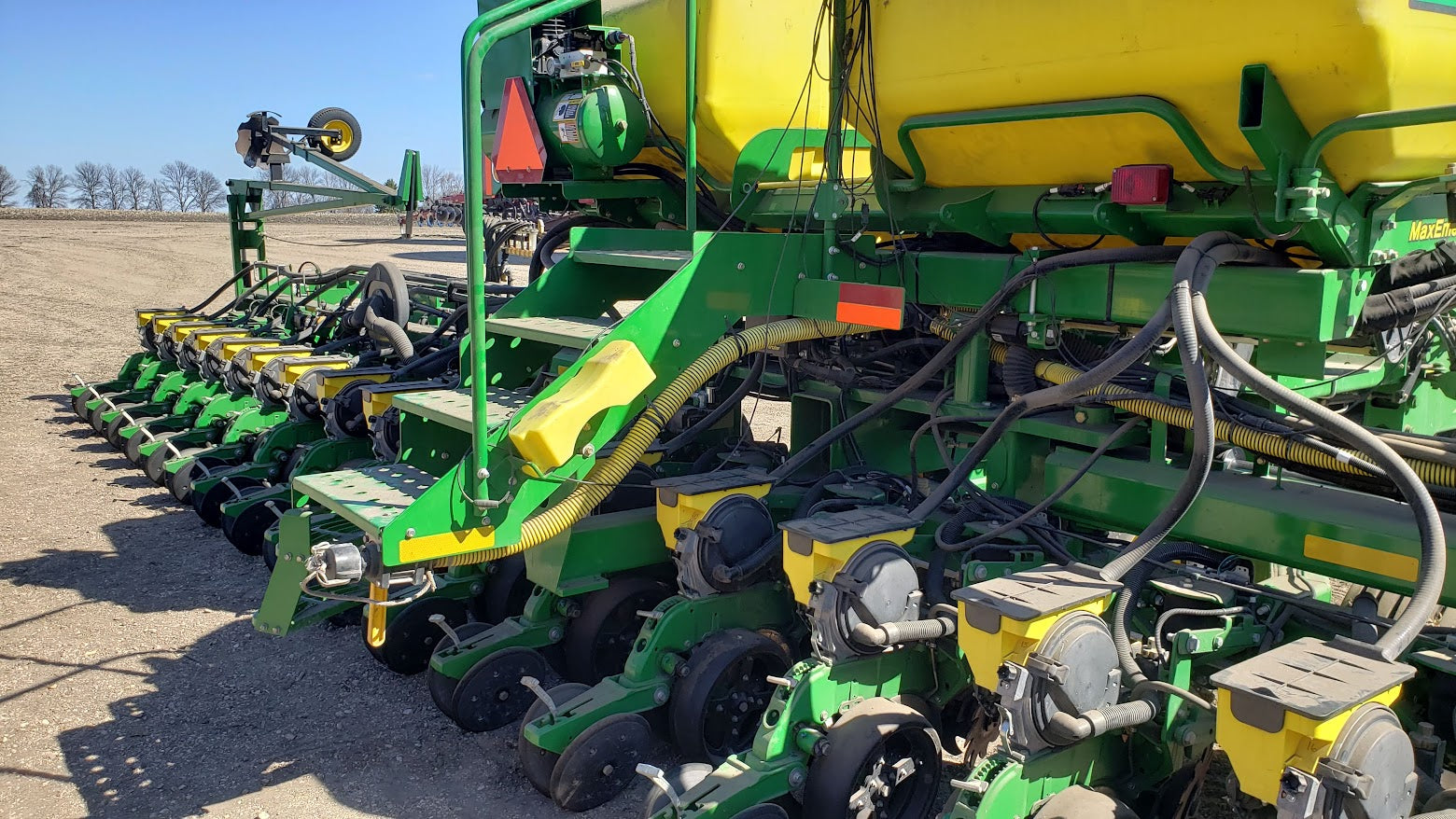

130 bushel dual Central Commodity System (CCS) tanks

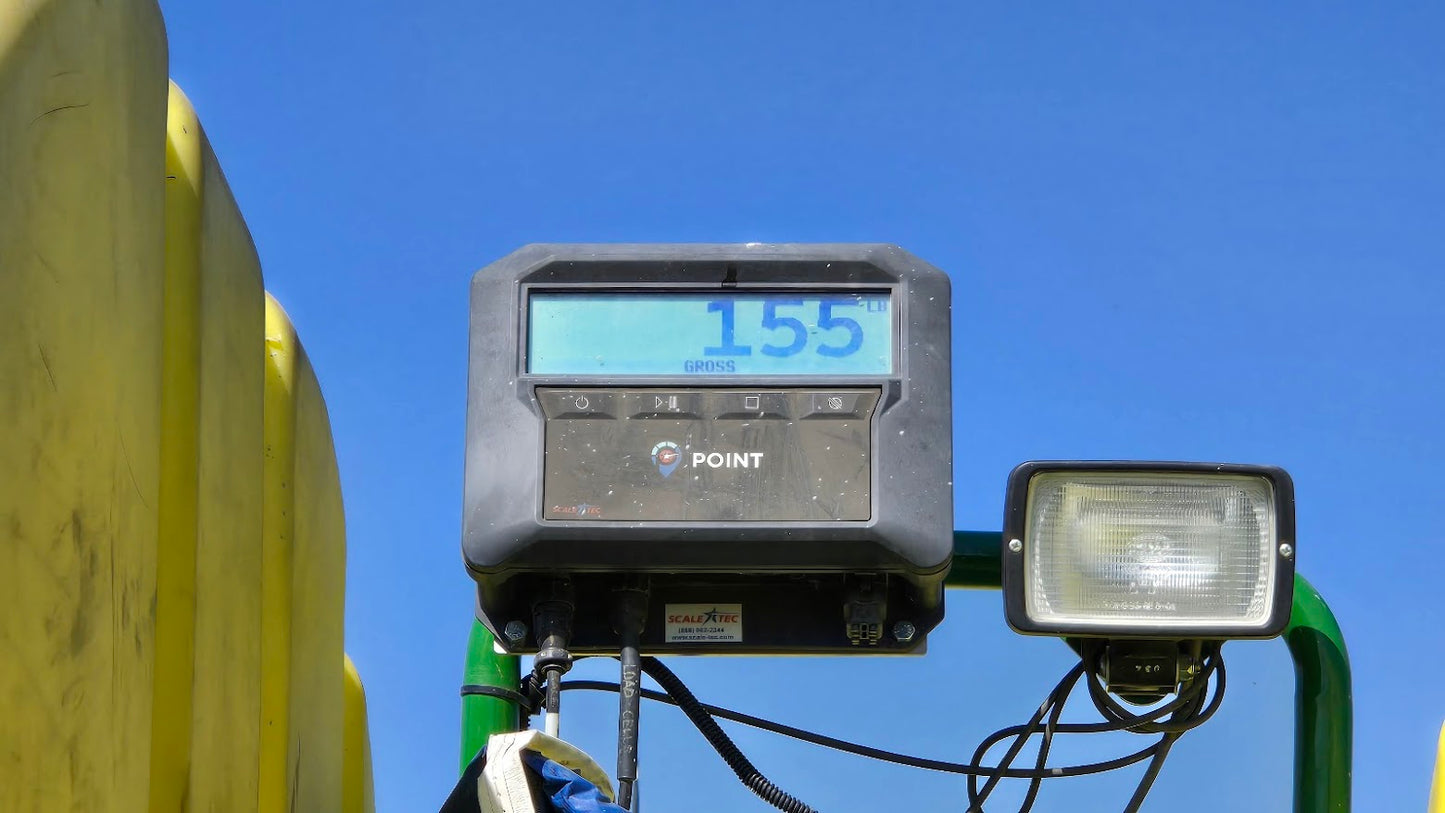

Scale-Tec scale on CCS tanks (new April 2020)

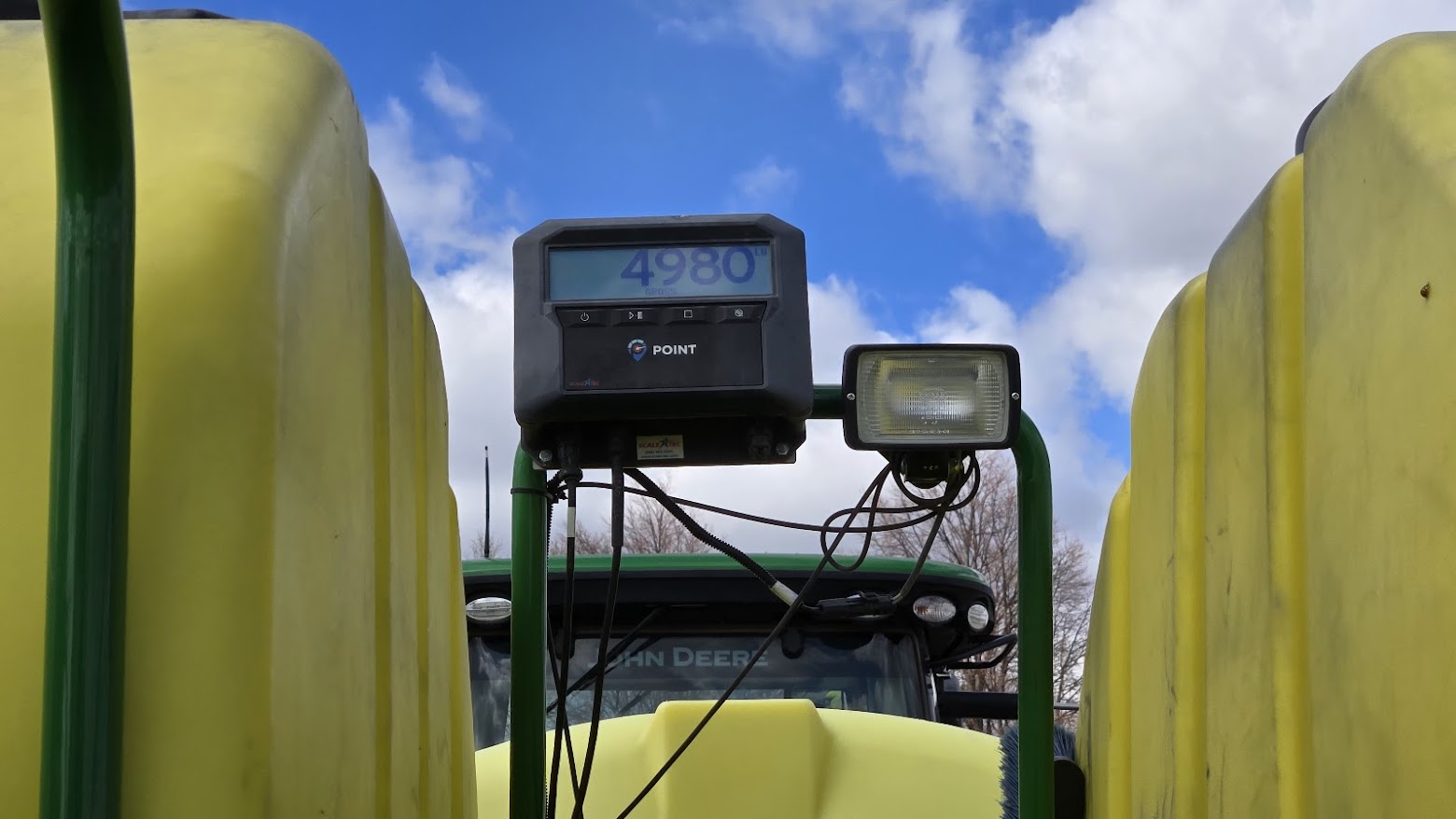

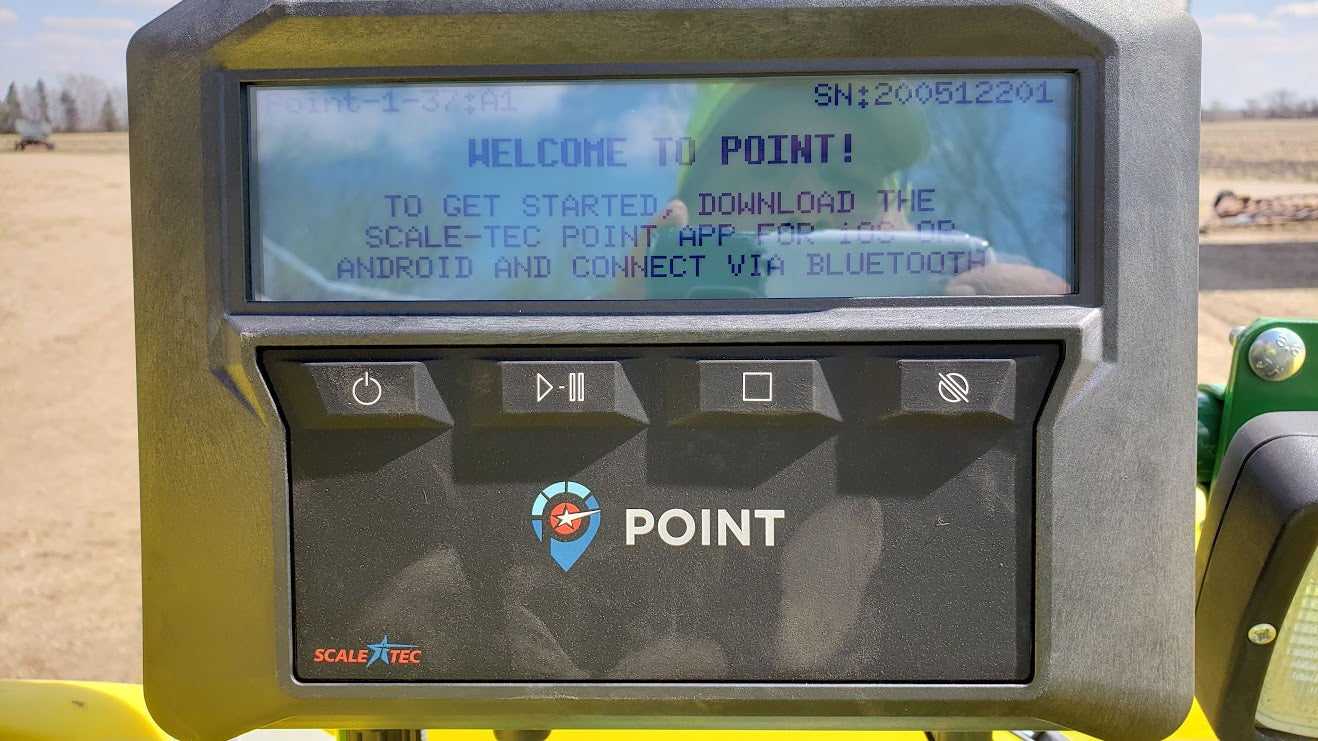

- POINT scale display and controls mounted on planter

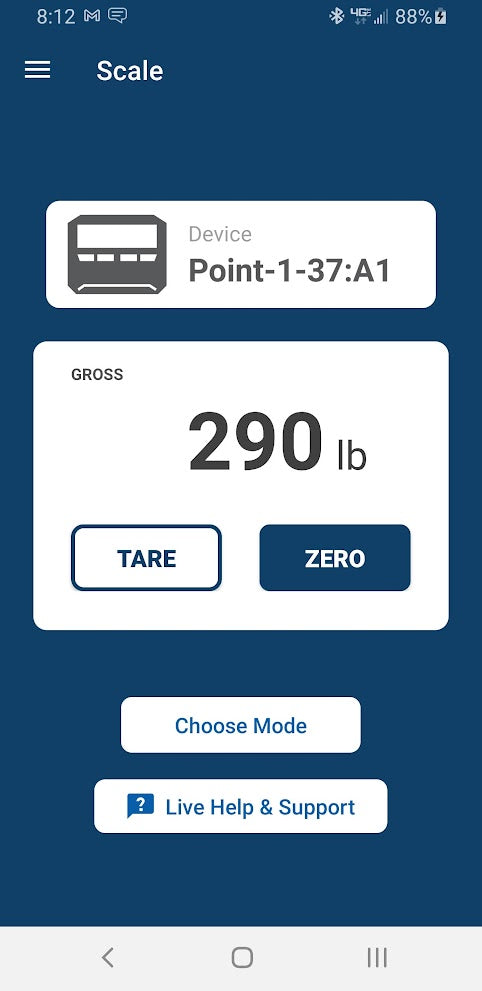

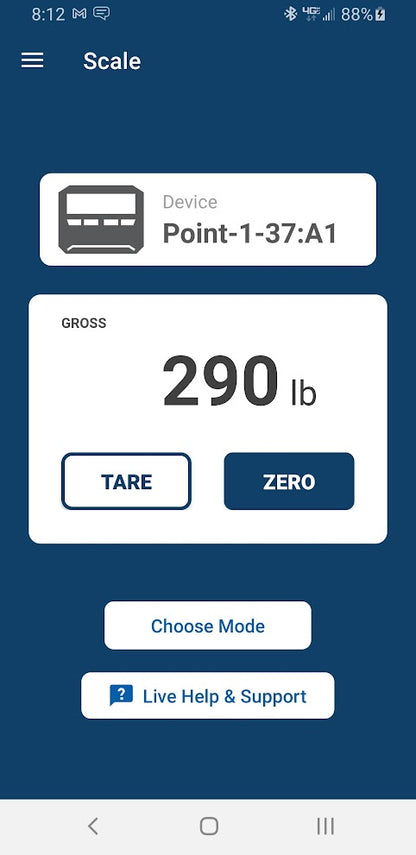

- Auxiliary display and controls via Bluetooth on phone or tablet in tractor cab

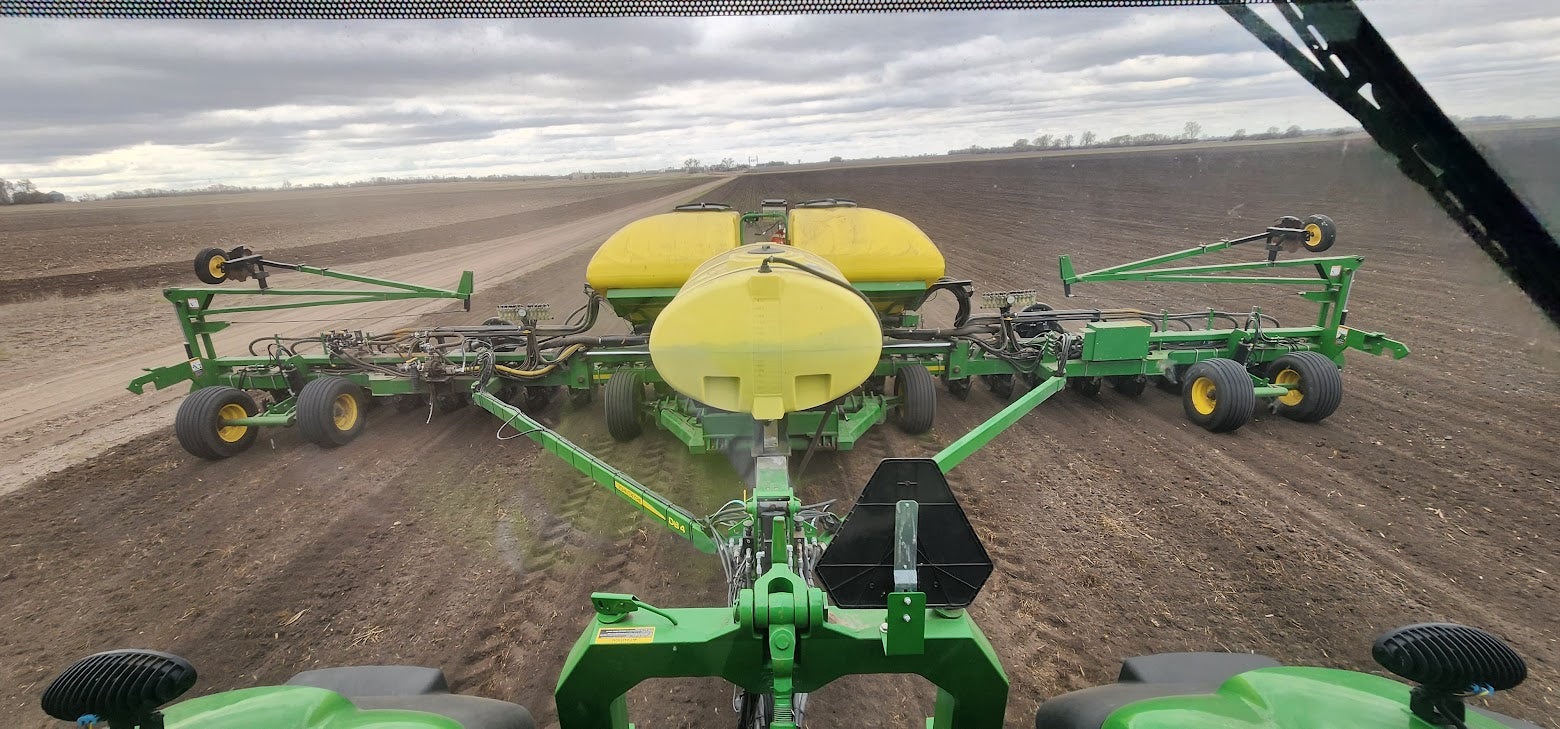

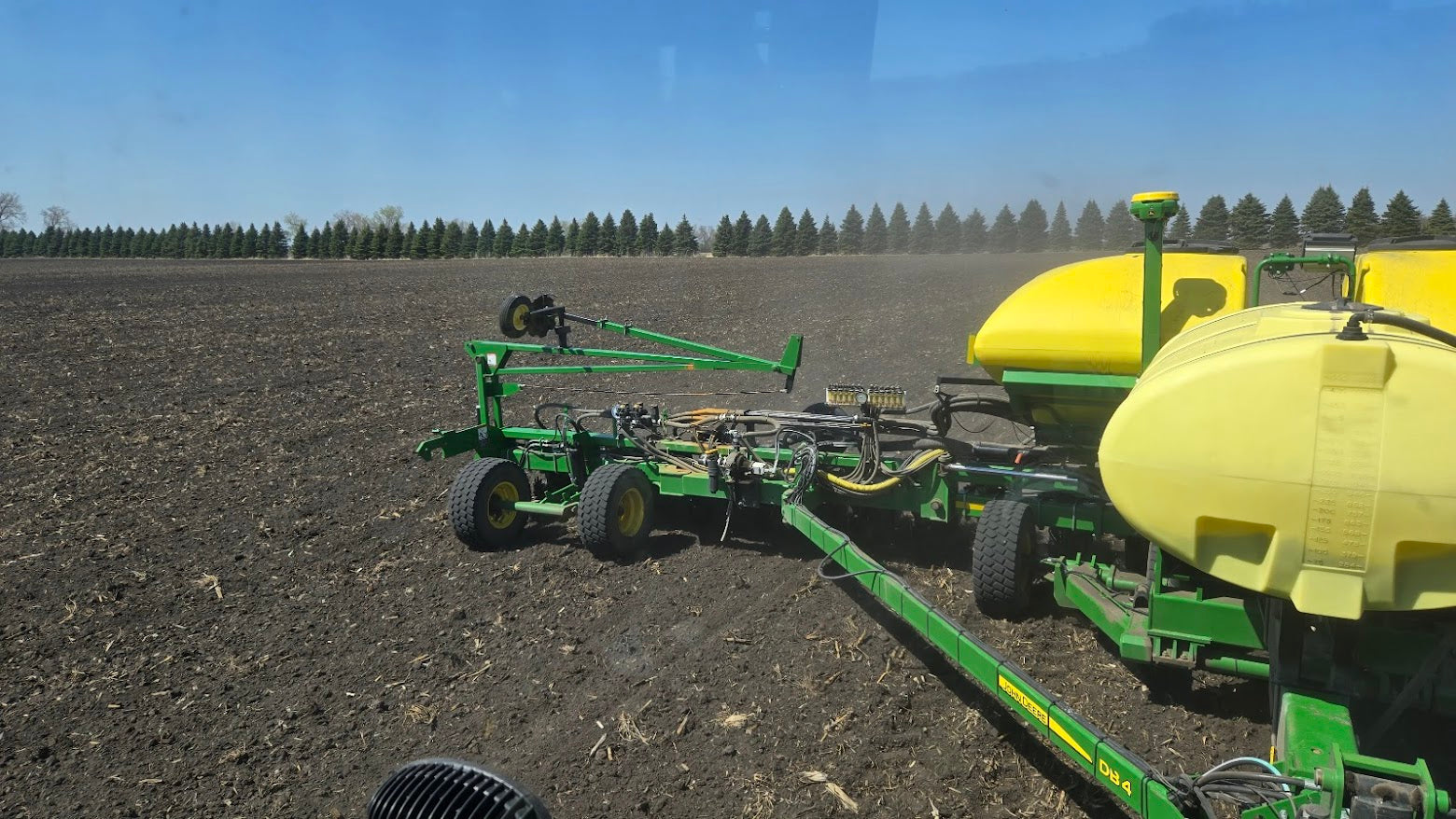

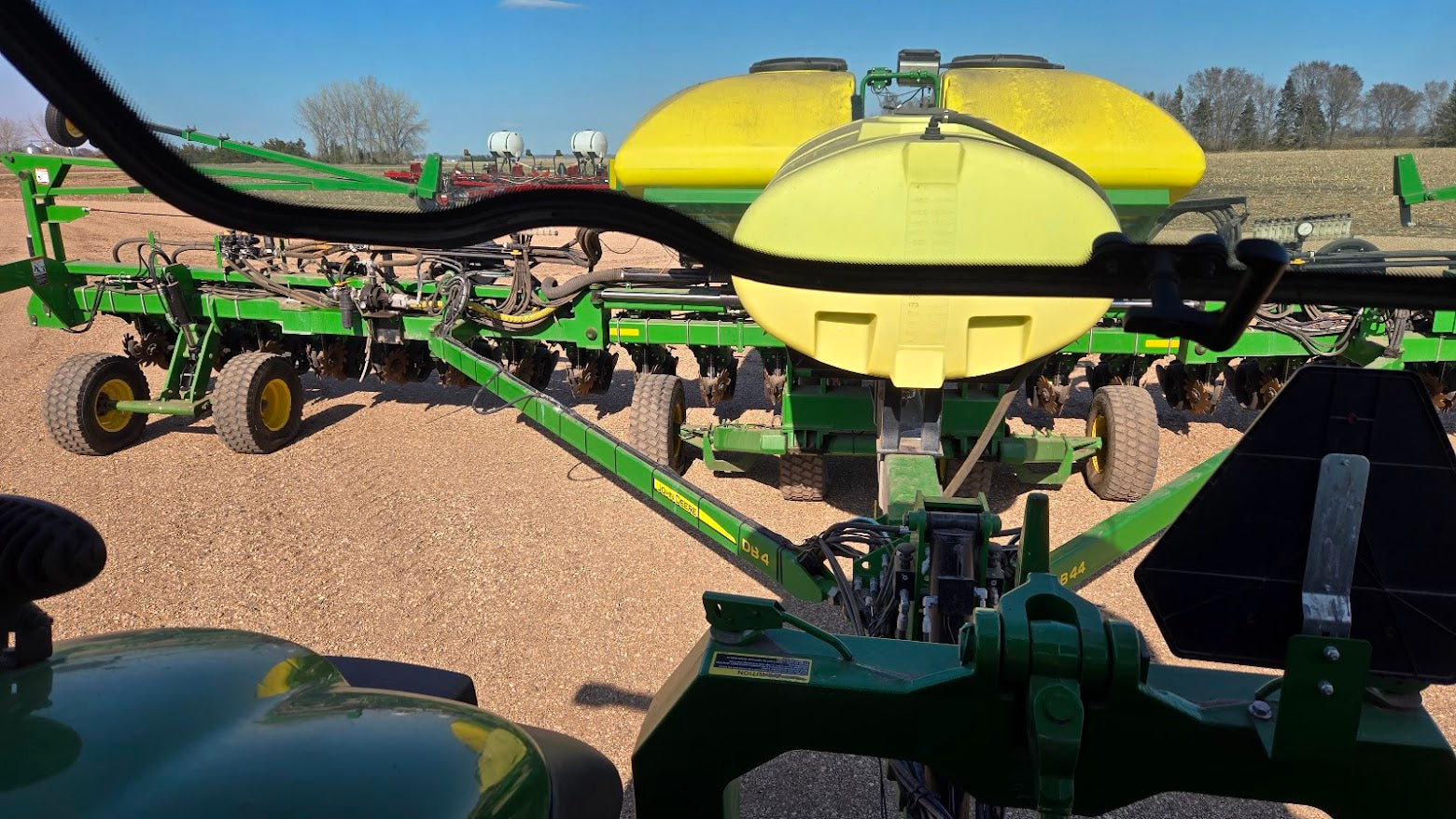

Three section DB frame with no tires between row units

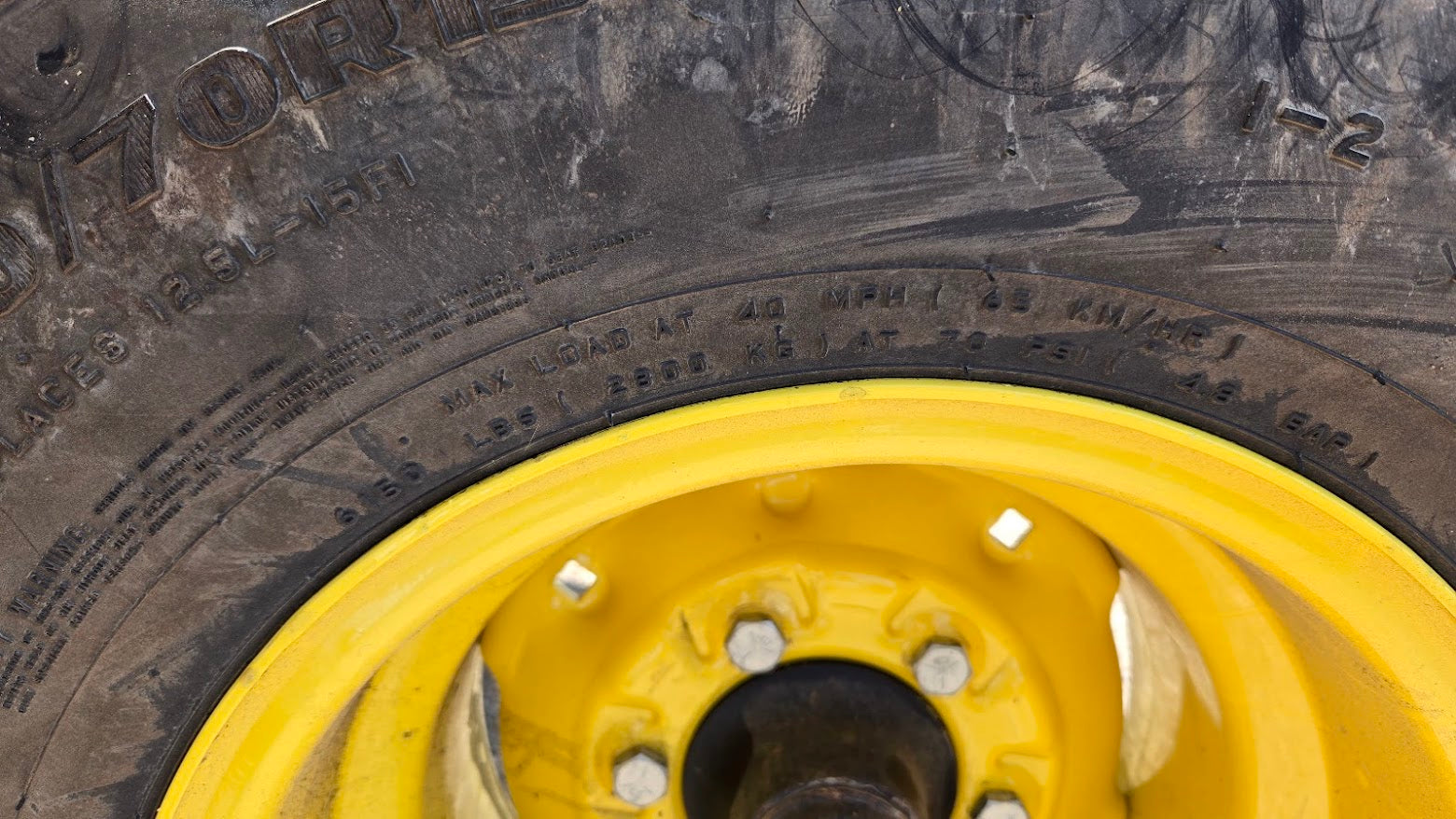

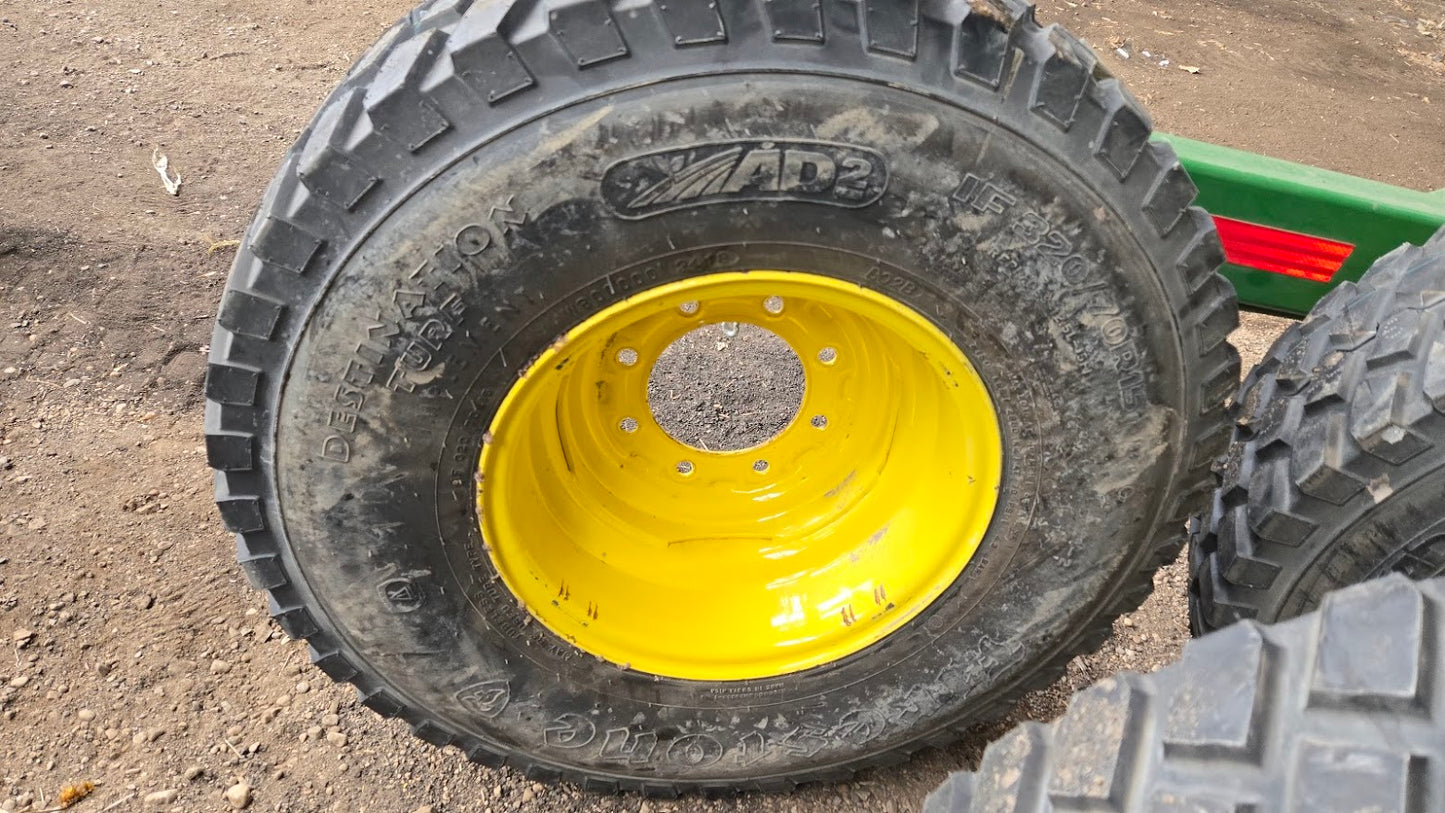

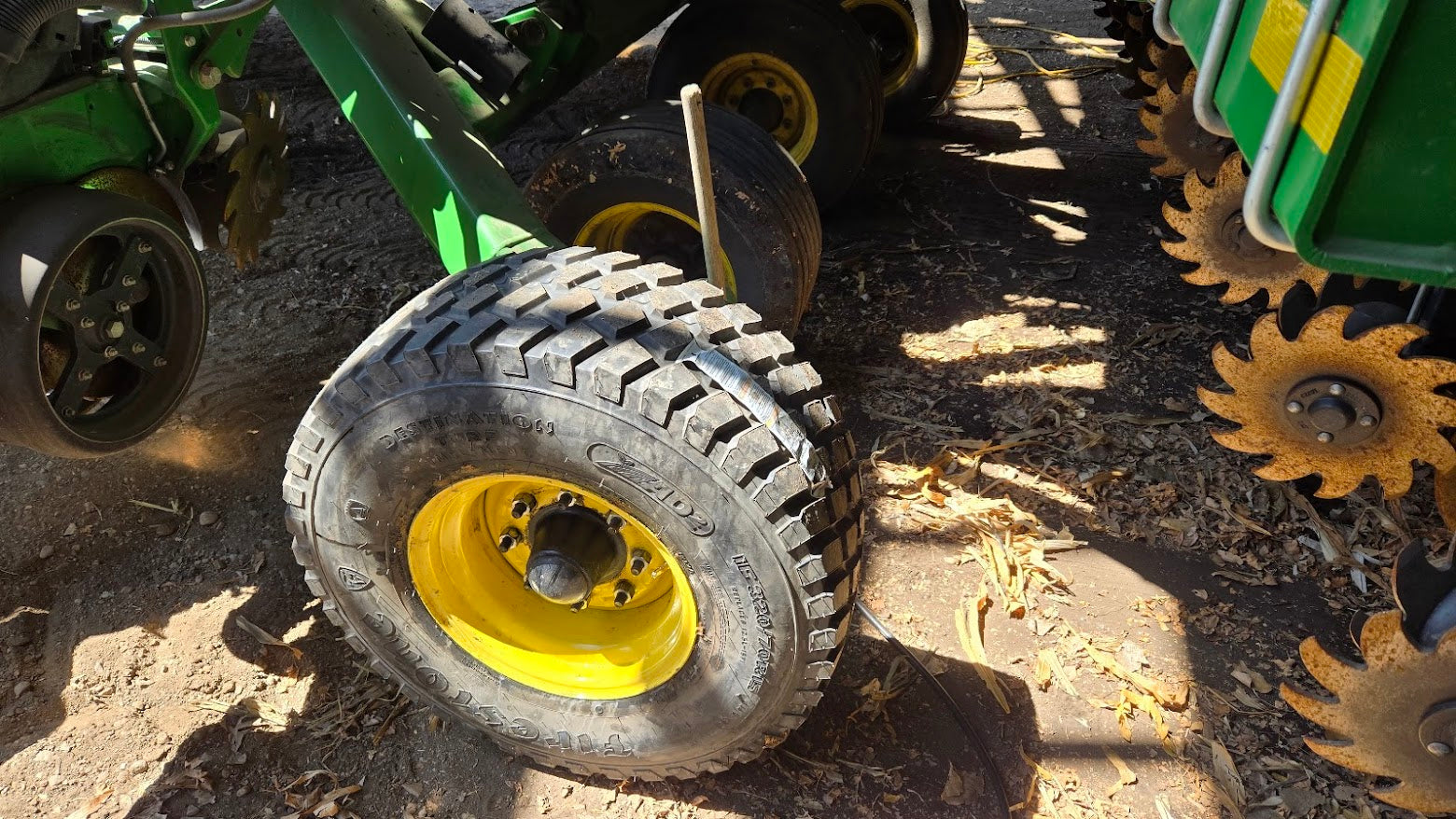

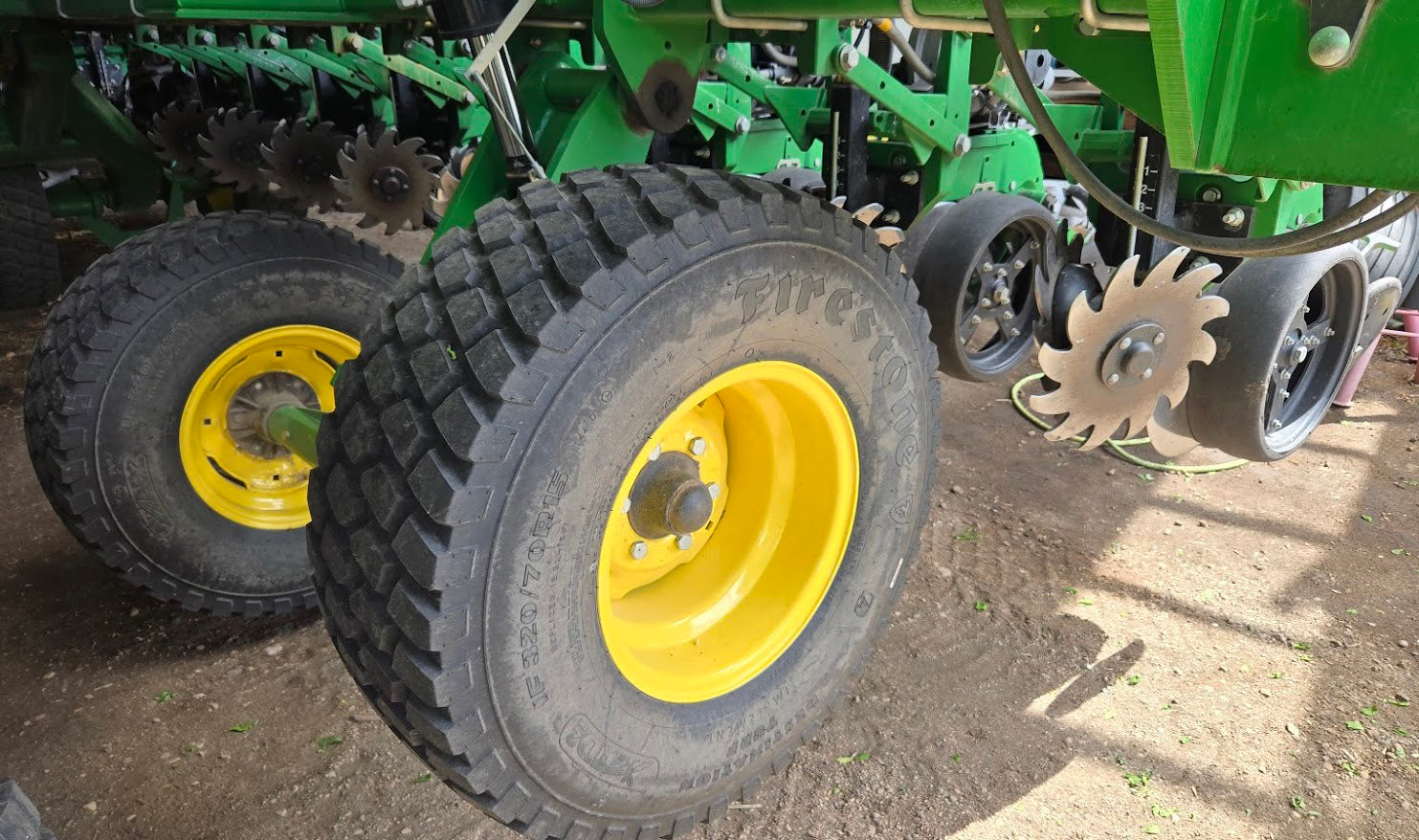

Eight new Firestone IF 320/70R15 Destination Turf tires April 2025
- Reduced pinch rows
- Better turning with less sinking in wet soil

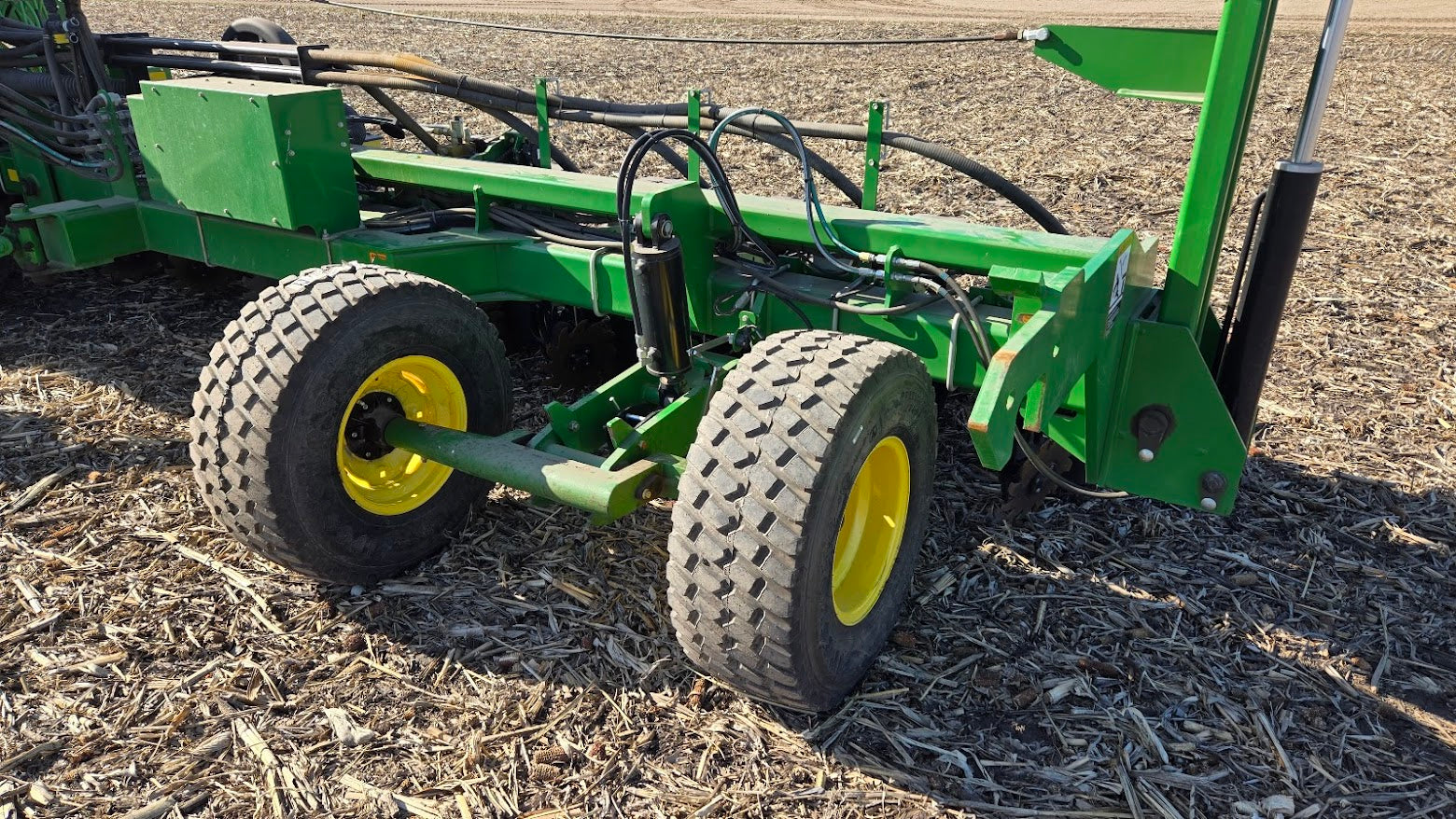

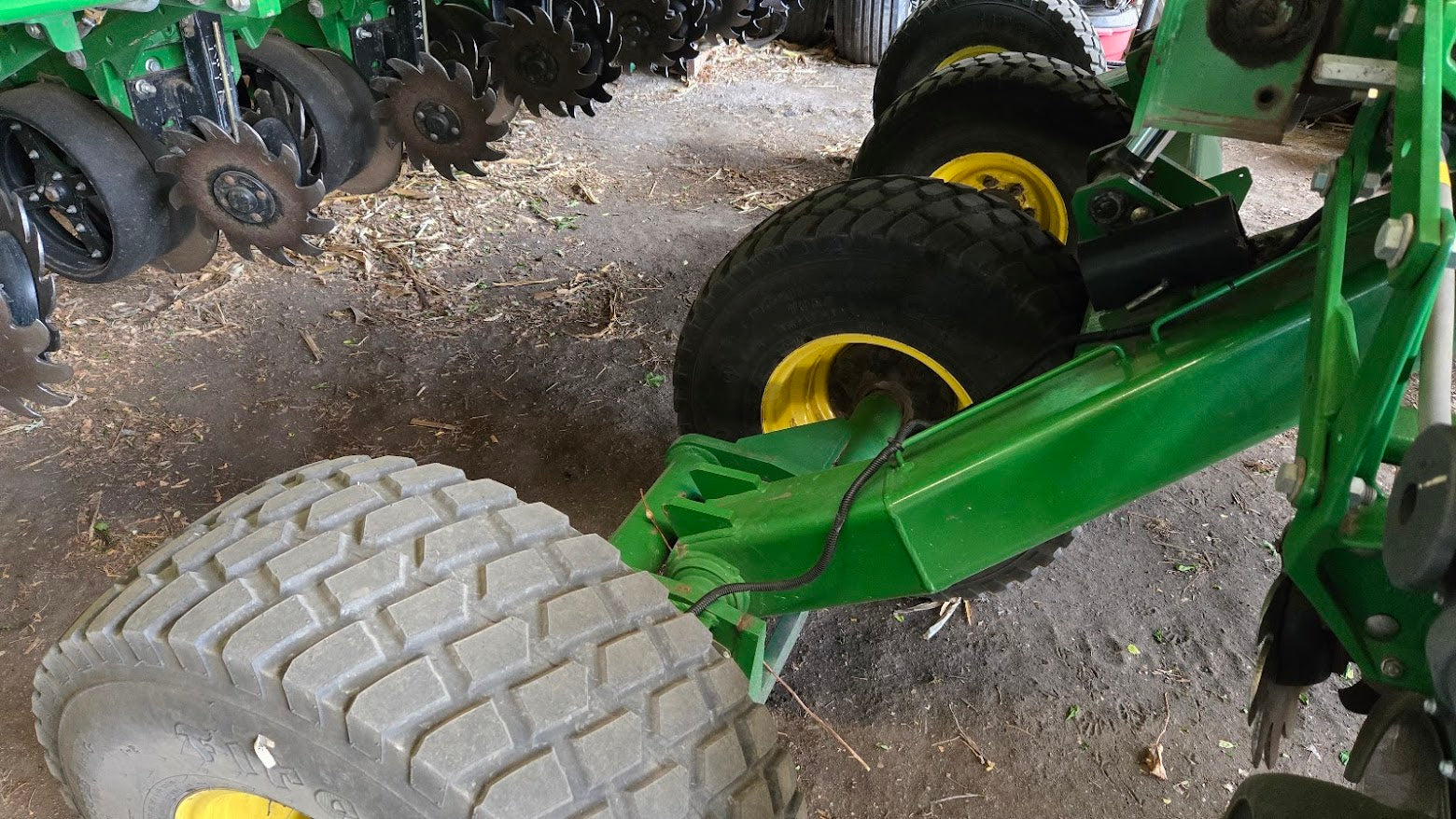

Walking tandem dual center mainframe wheels
Walking tandem dual wing wheels
12-section row control (2-rows each section)

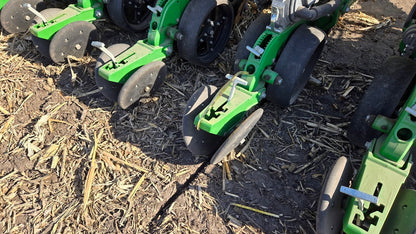

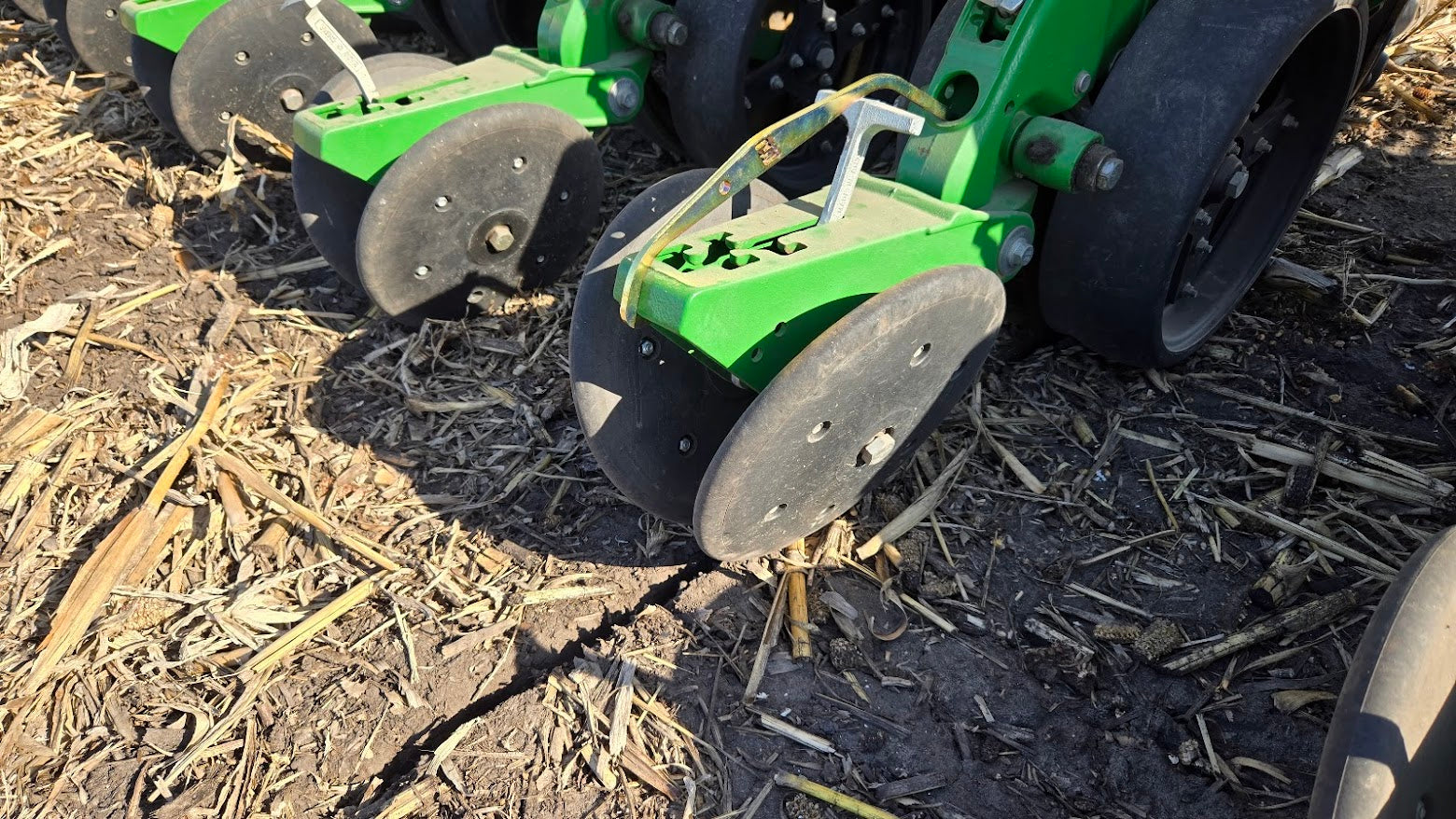

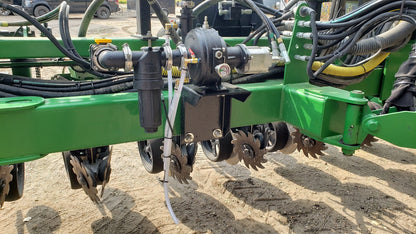

Yetter screw adjust SharkTooth row cleaners

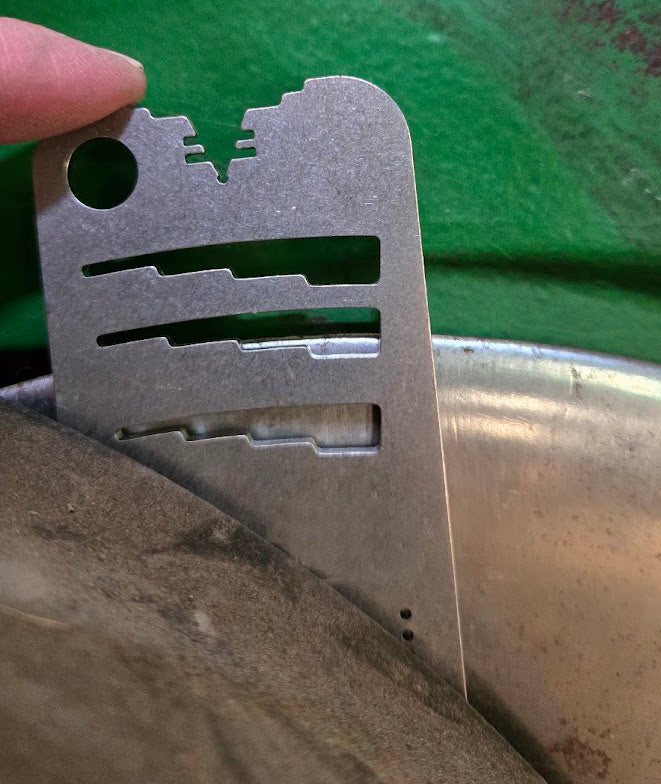

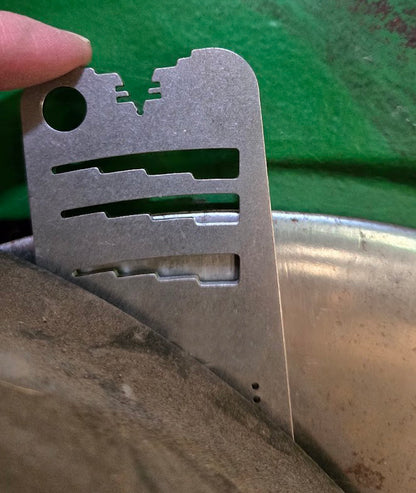

Seed opener disks measure 14.7"

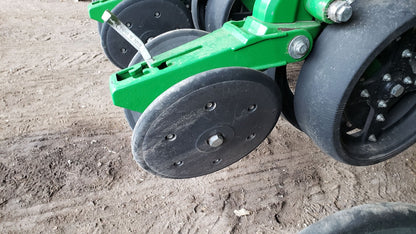

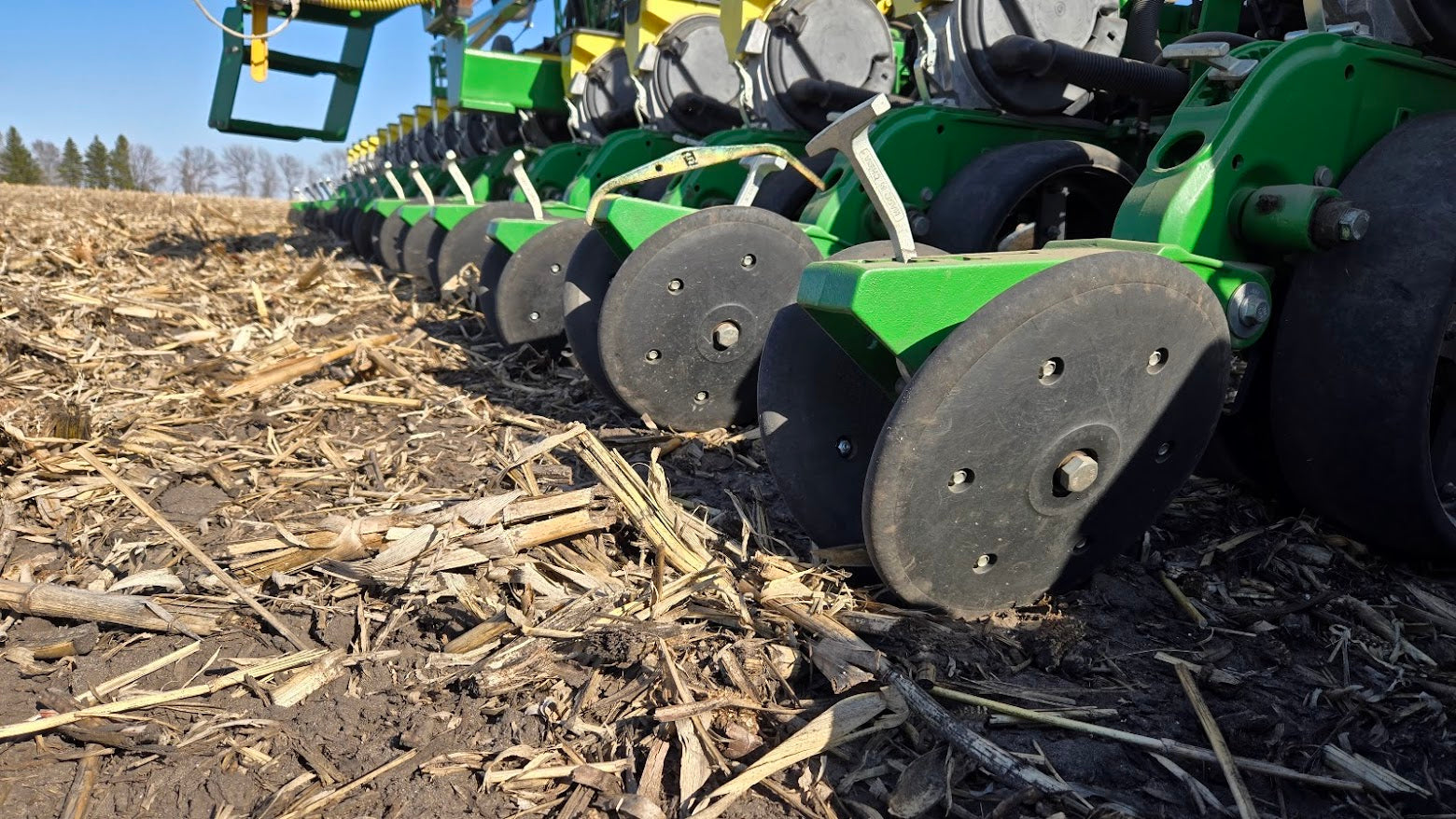

Deere standard rubber tire closing wheels

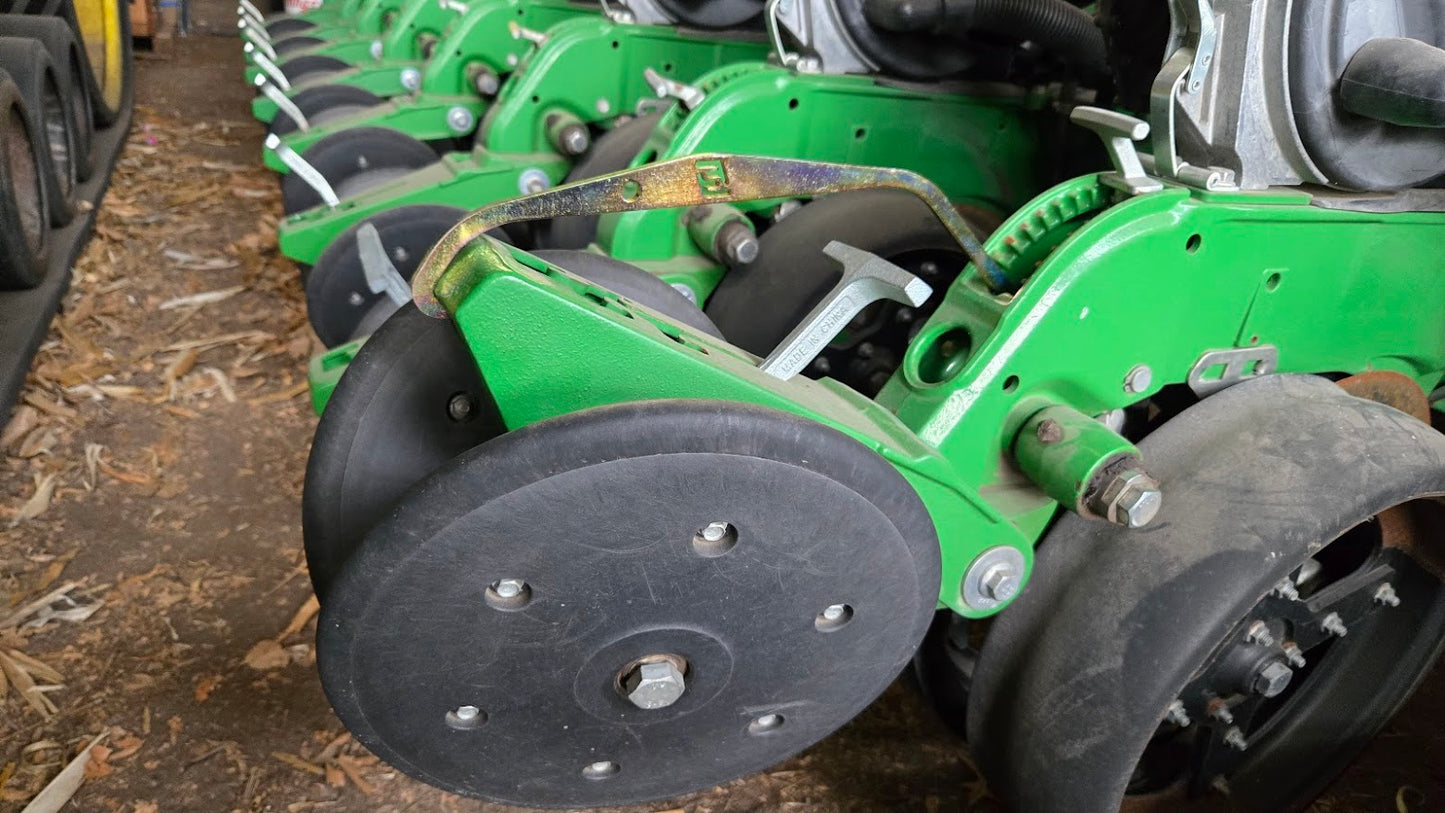

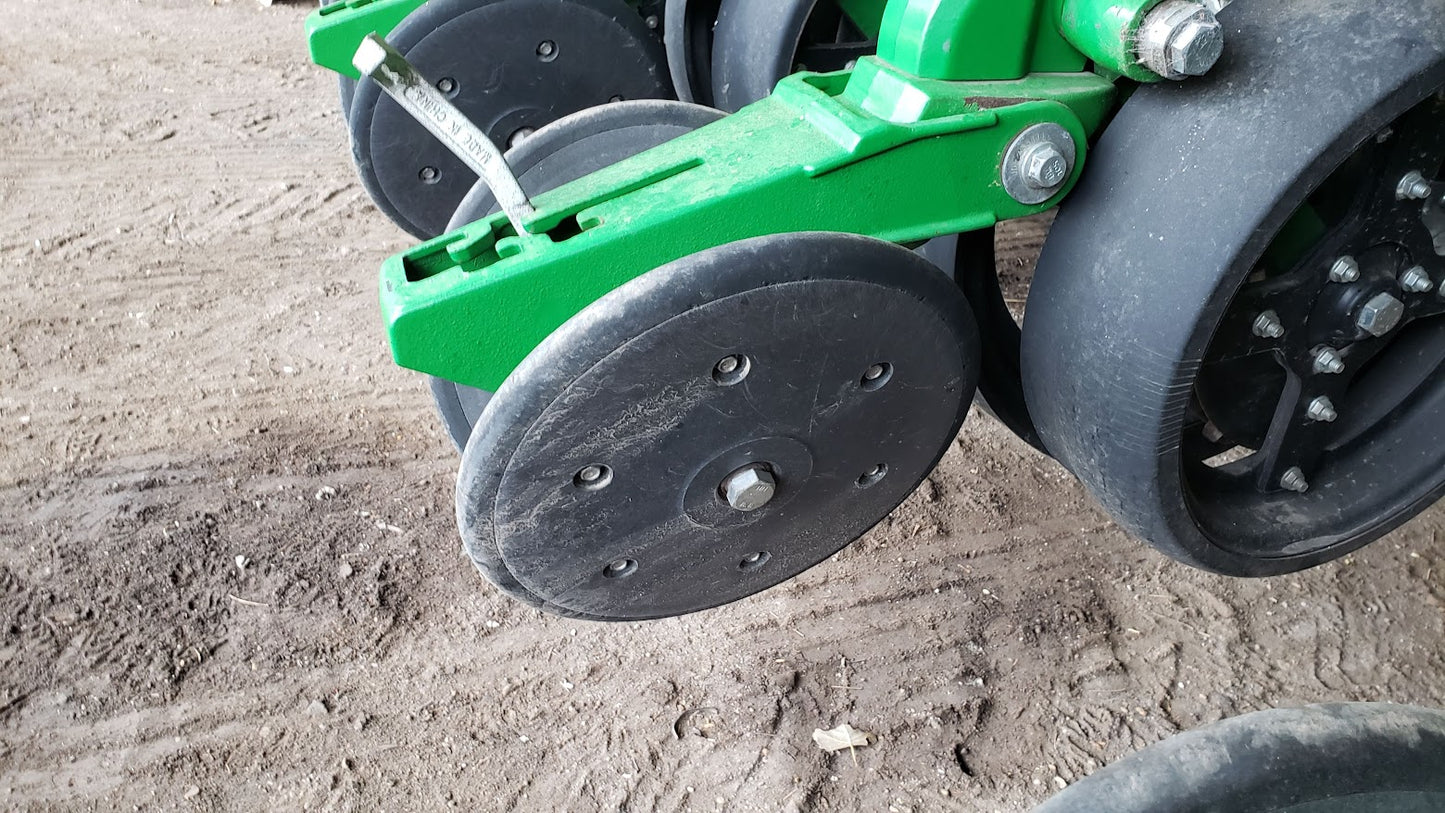

Spoked row unit gauge wheels
Comes with in-tractor-cab mounted
- Planter fold-box
- Manual planter three 8-row section control box (never used)
- Liquid fertilizer system master switch

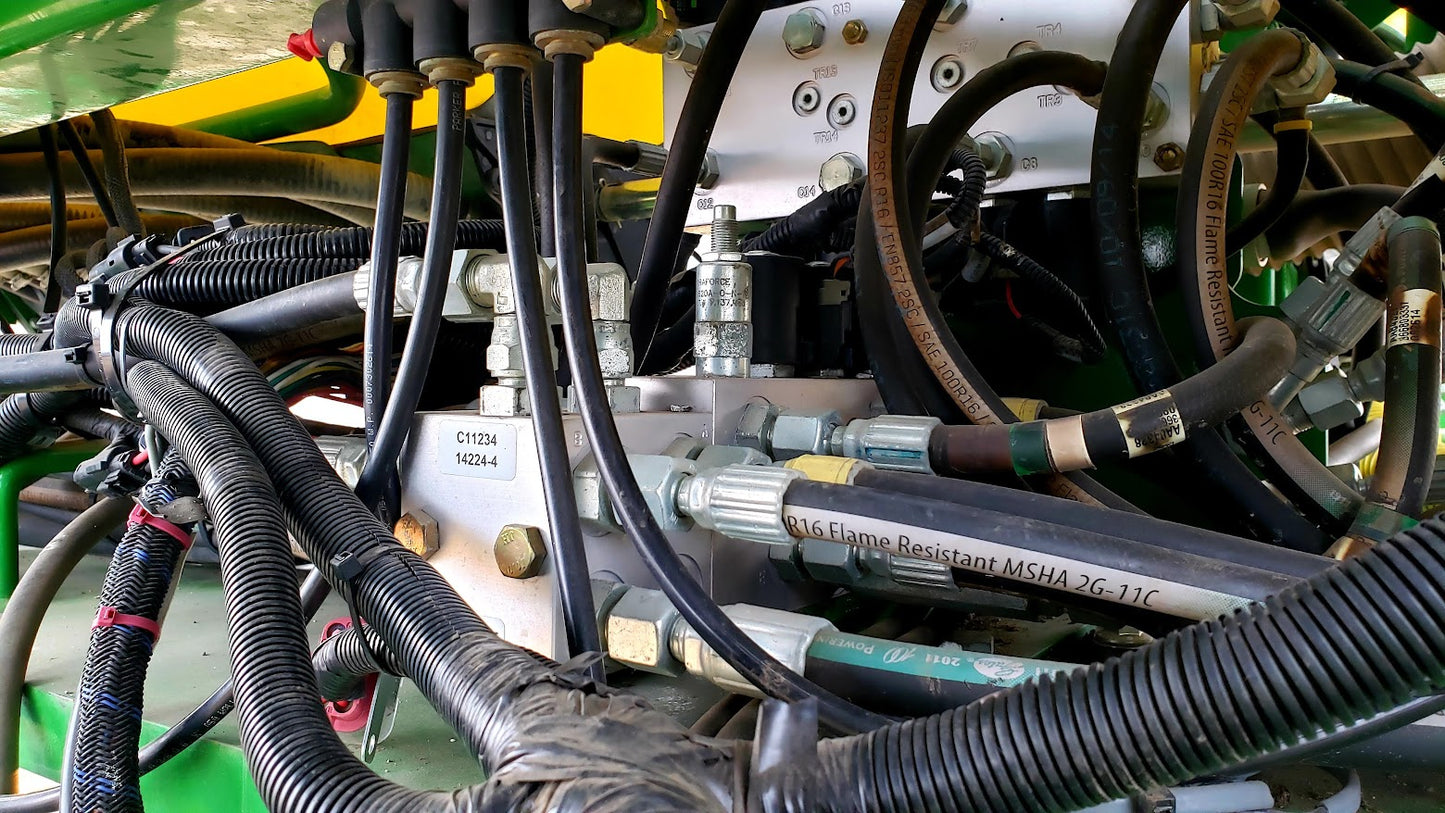

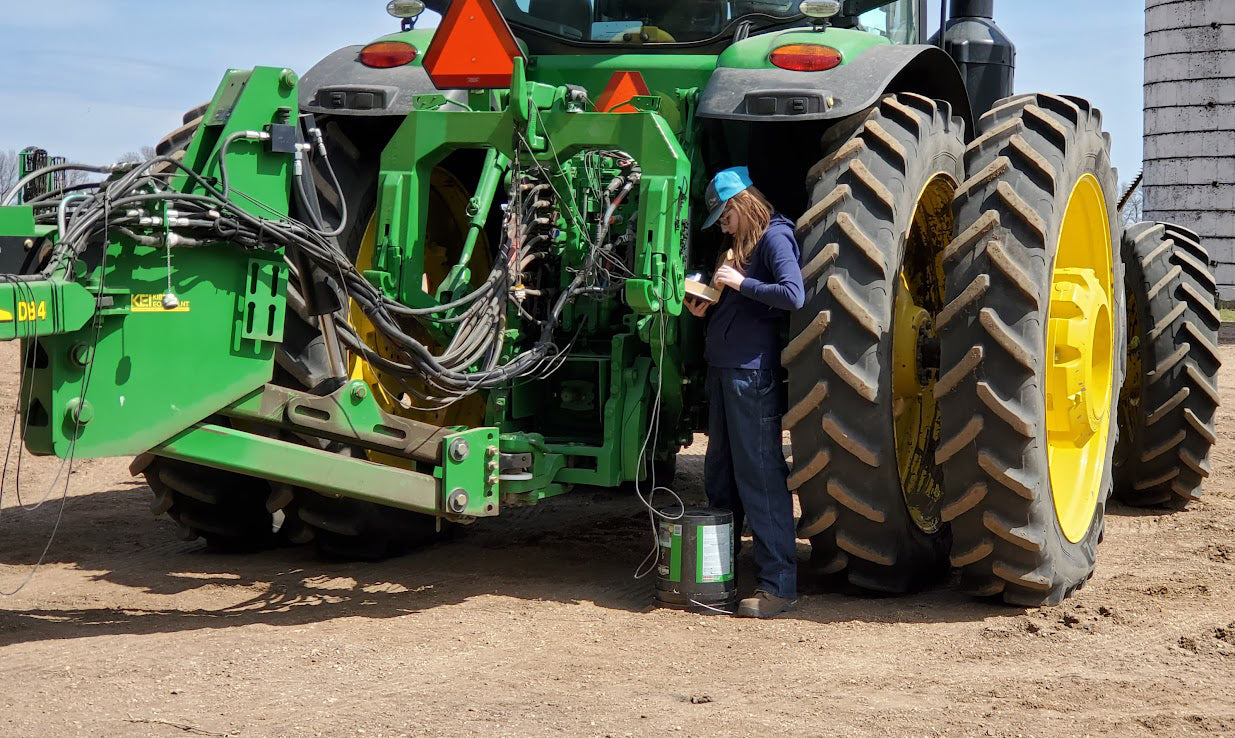

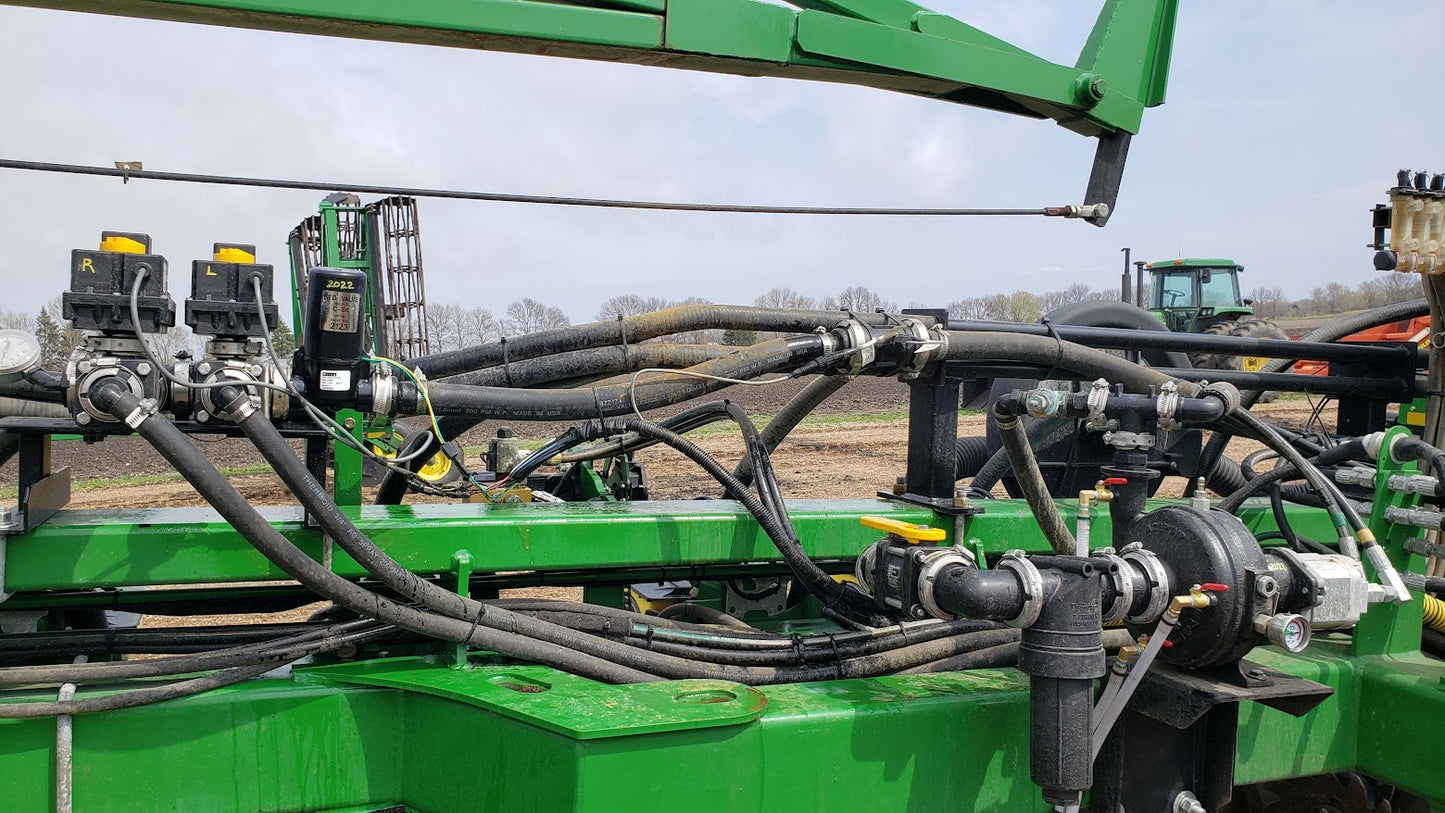

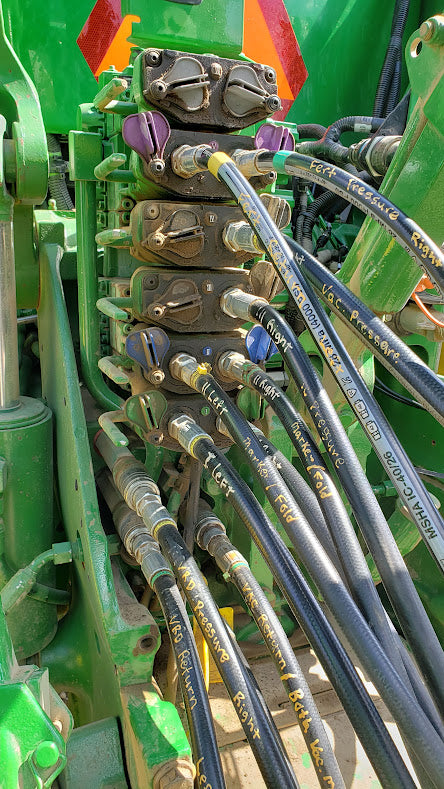

Hydraulic connections
- SCV1 = Lift
- SCV2 = Fold
- SCV3 = Vacuum Fan 1 pressure (LH 12-rows)
- SCV4 = Vacuum Fan 2 pressure (RH 12-rows)
- SCV5 = Liquid Fertilizer Pump
- Aux1 = Variable rate drive return (RH)
- Aux2 = Variable rate drive return (LH)
- Aux3 = Vacuum motor return (RH & LH)
- Case drain = Vacuum motor case drain

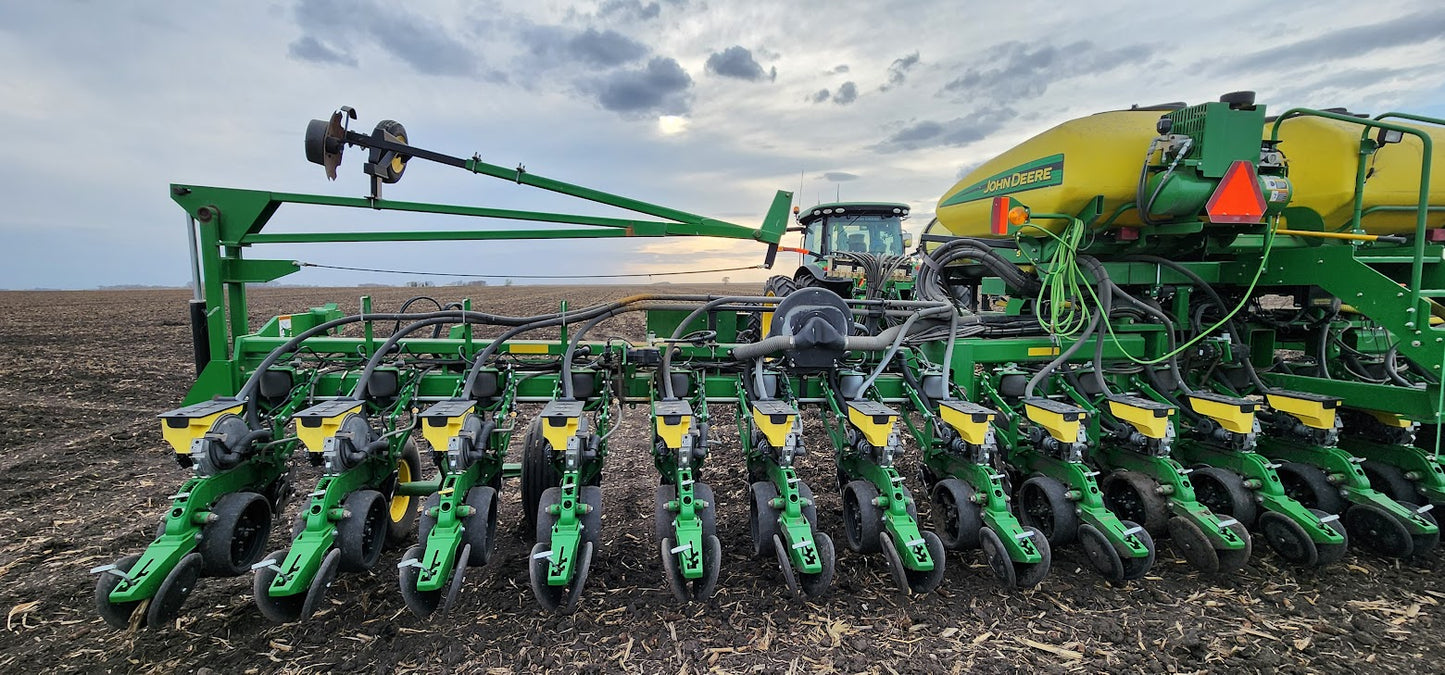

Factory 16" notched disk hydraulic folding markers (used for a grand total of 100' during my ownership)

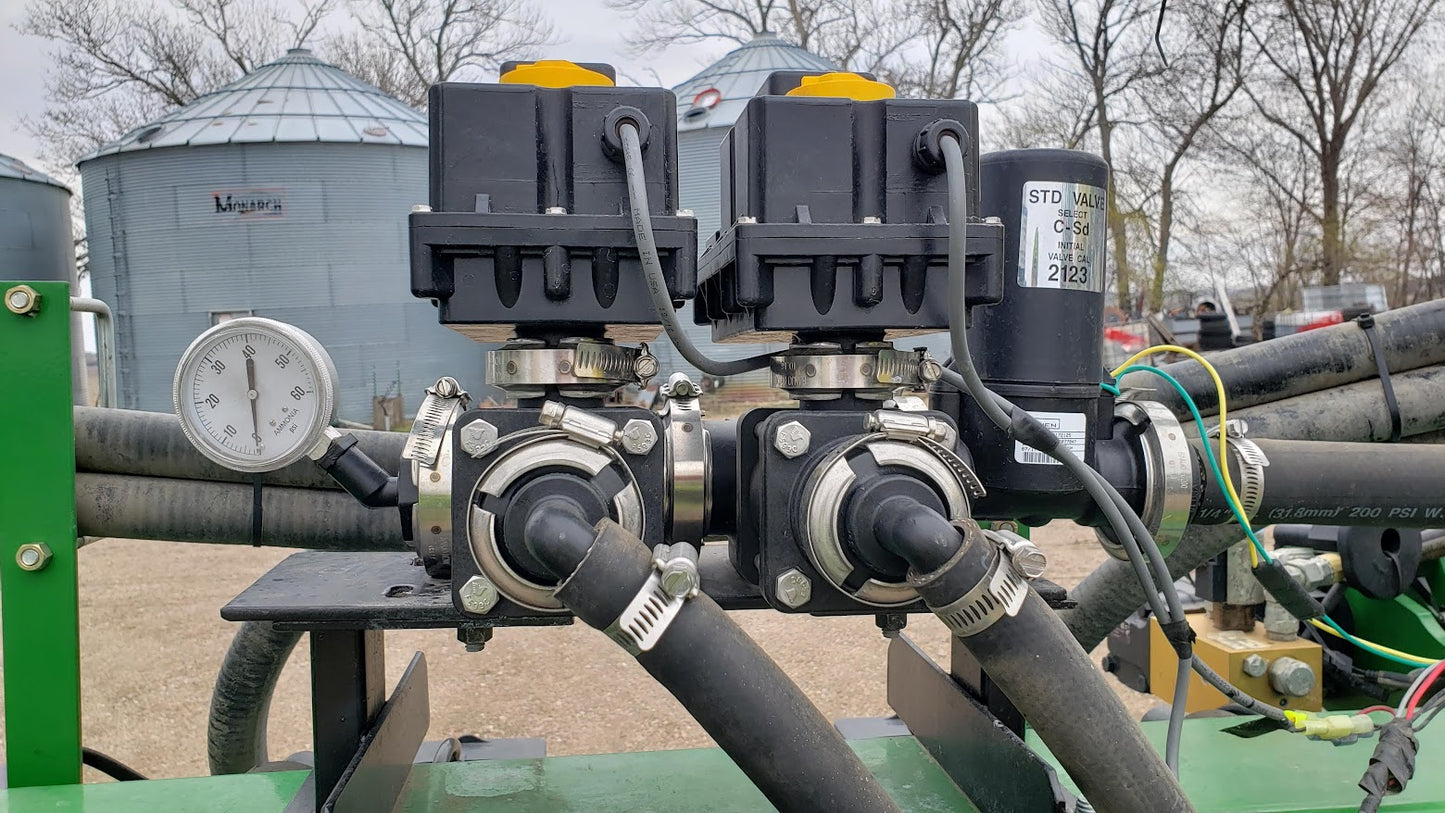

Liquid fertilizer system new April 2020

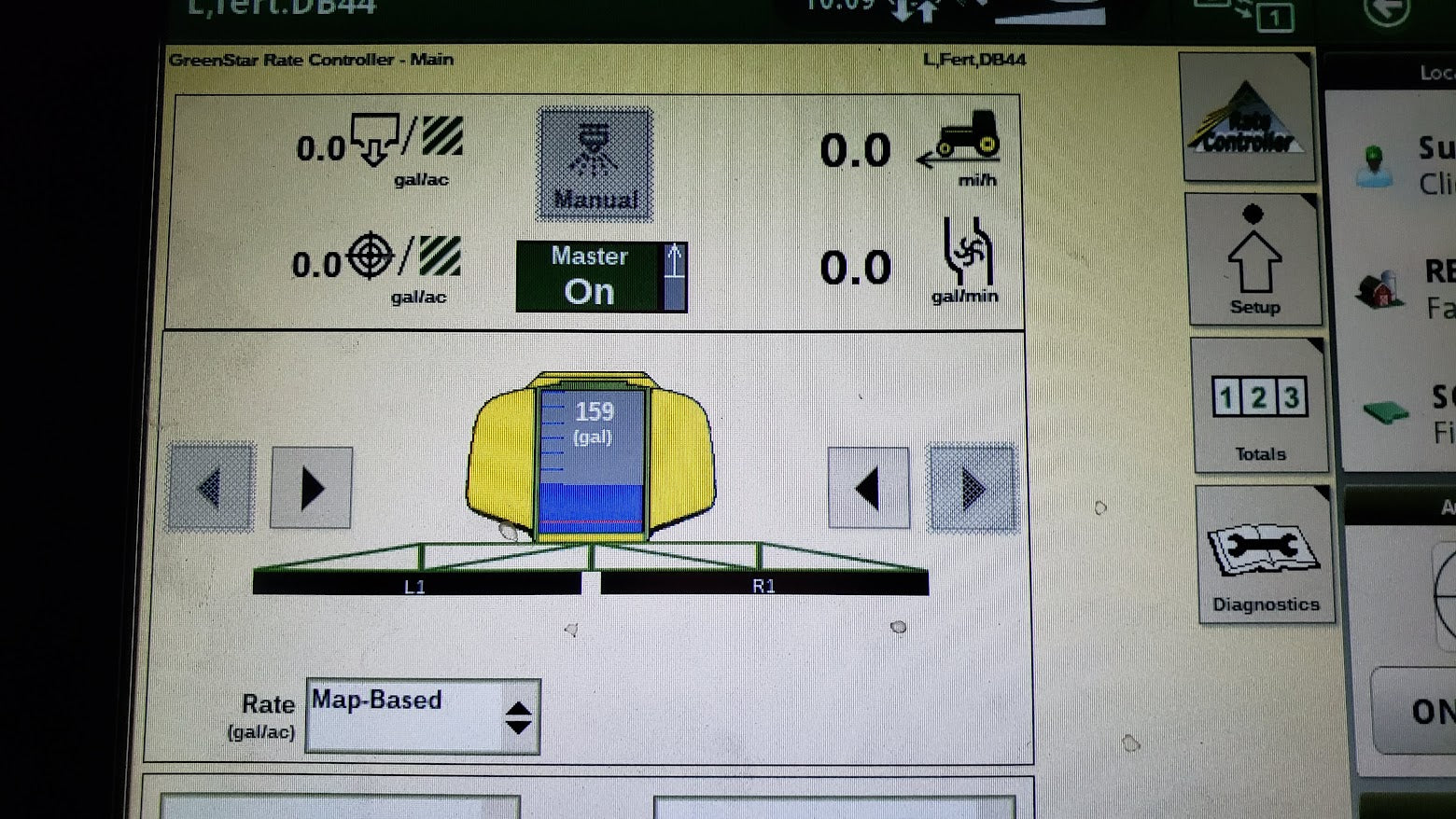

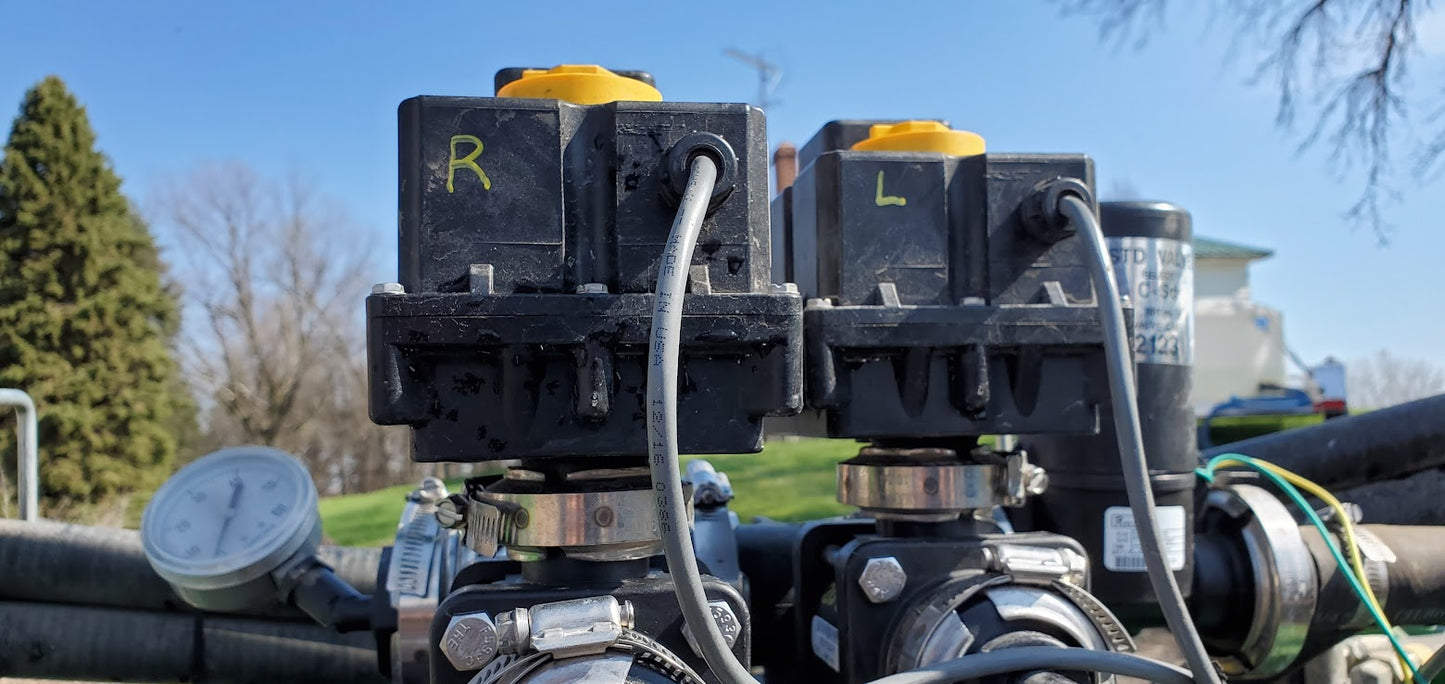

- Planter mounted Deere GreenStar2 liquid fertilizer variable rate controller
- 2-section (12-row)

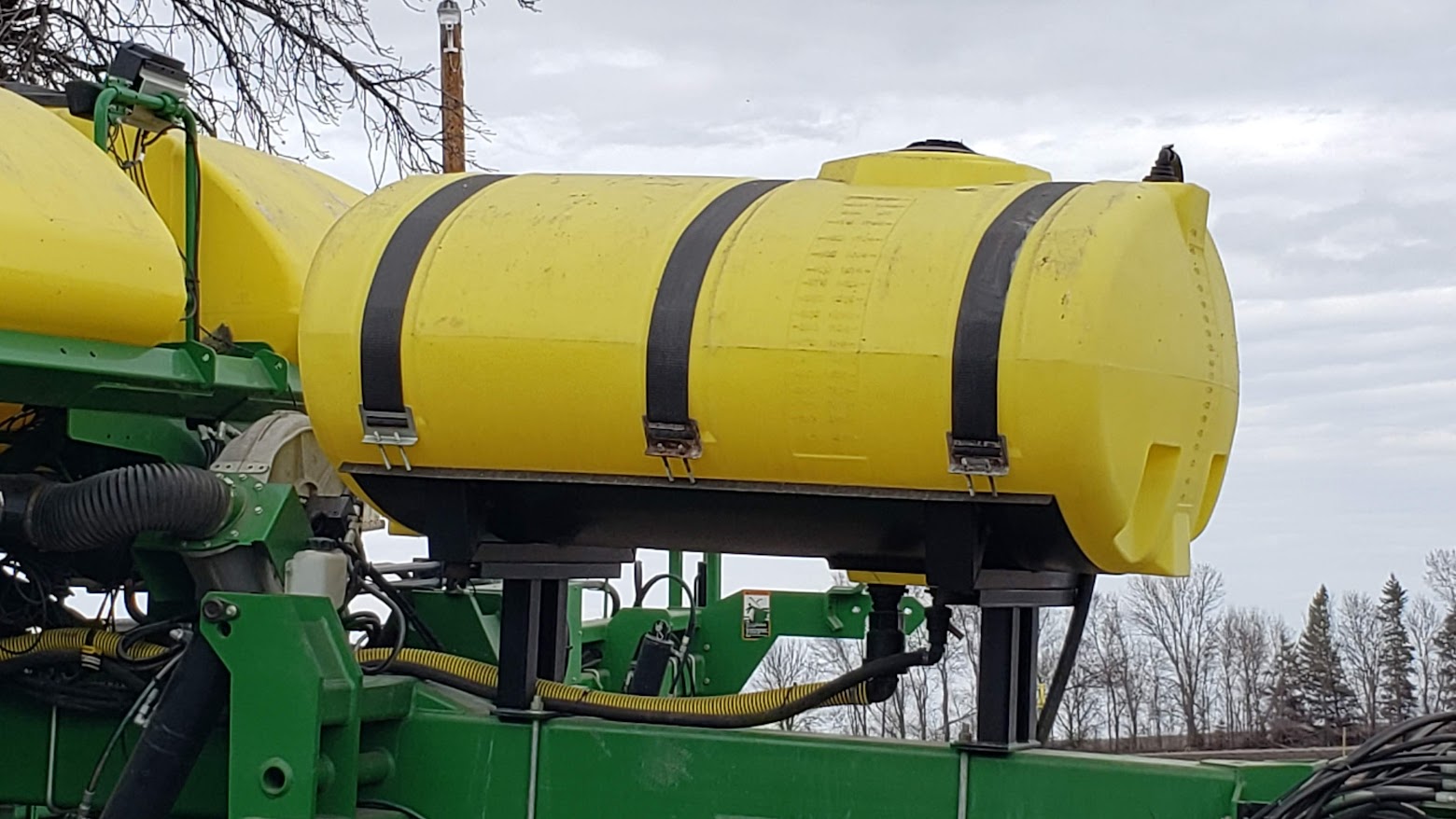

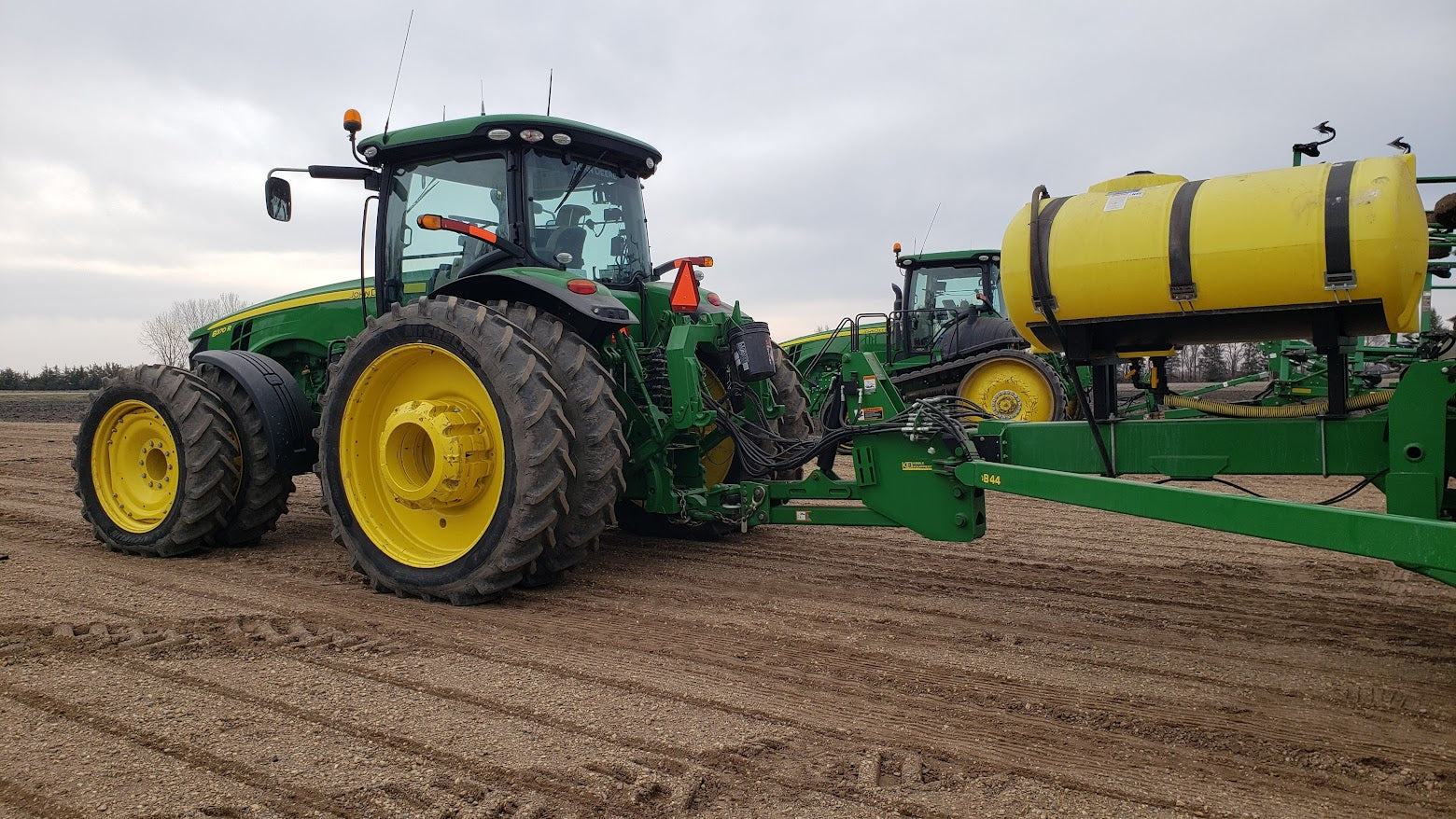

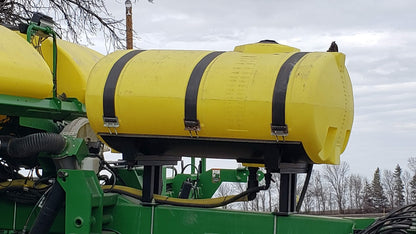

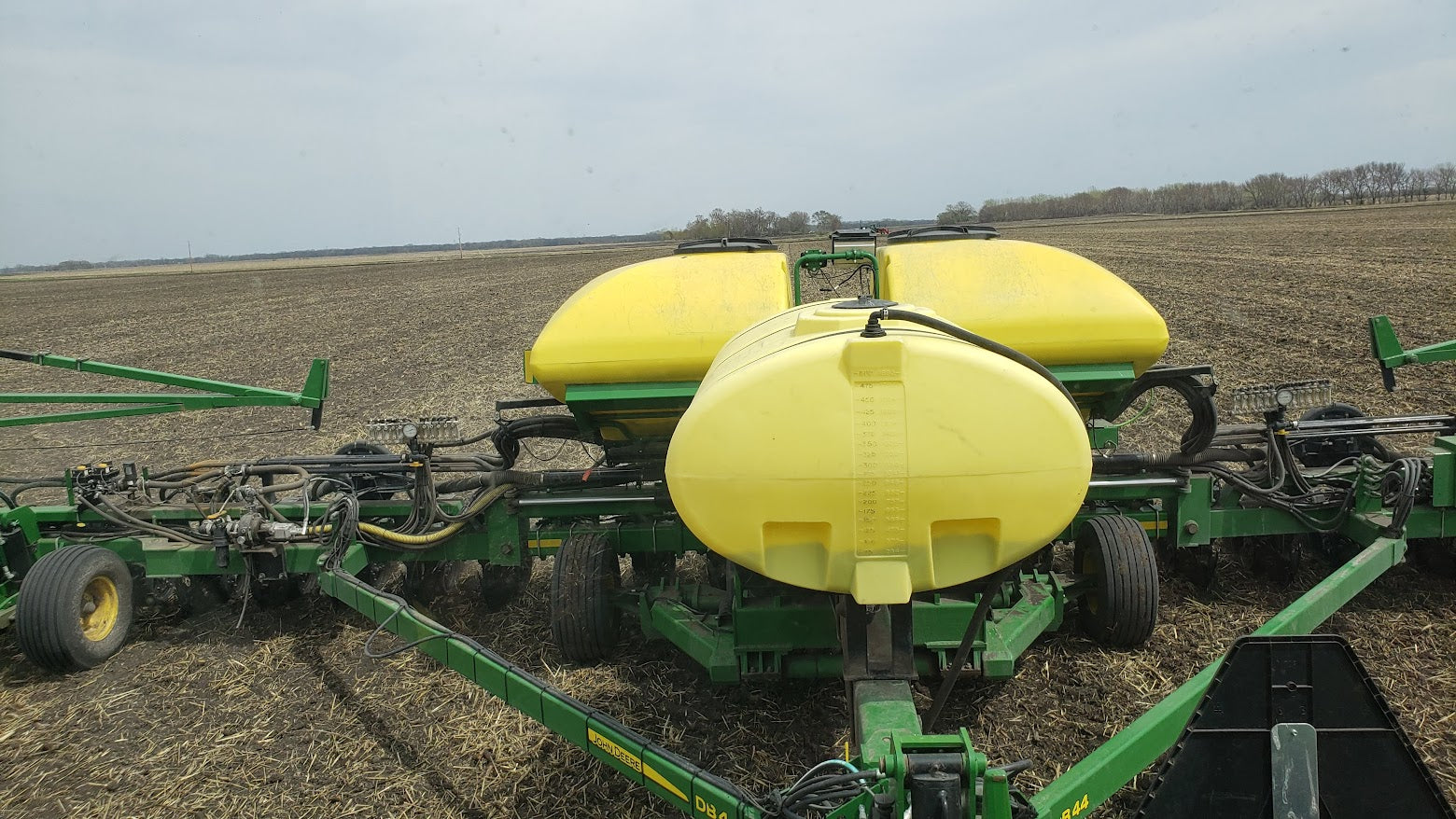

- 500-gallon center frame mounted liquid fertilizer tank

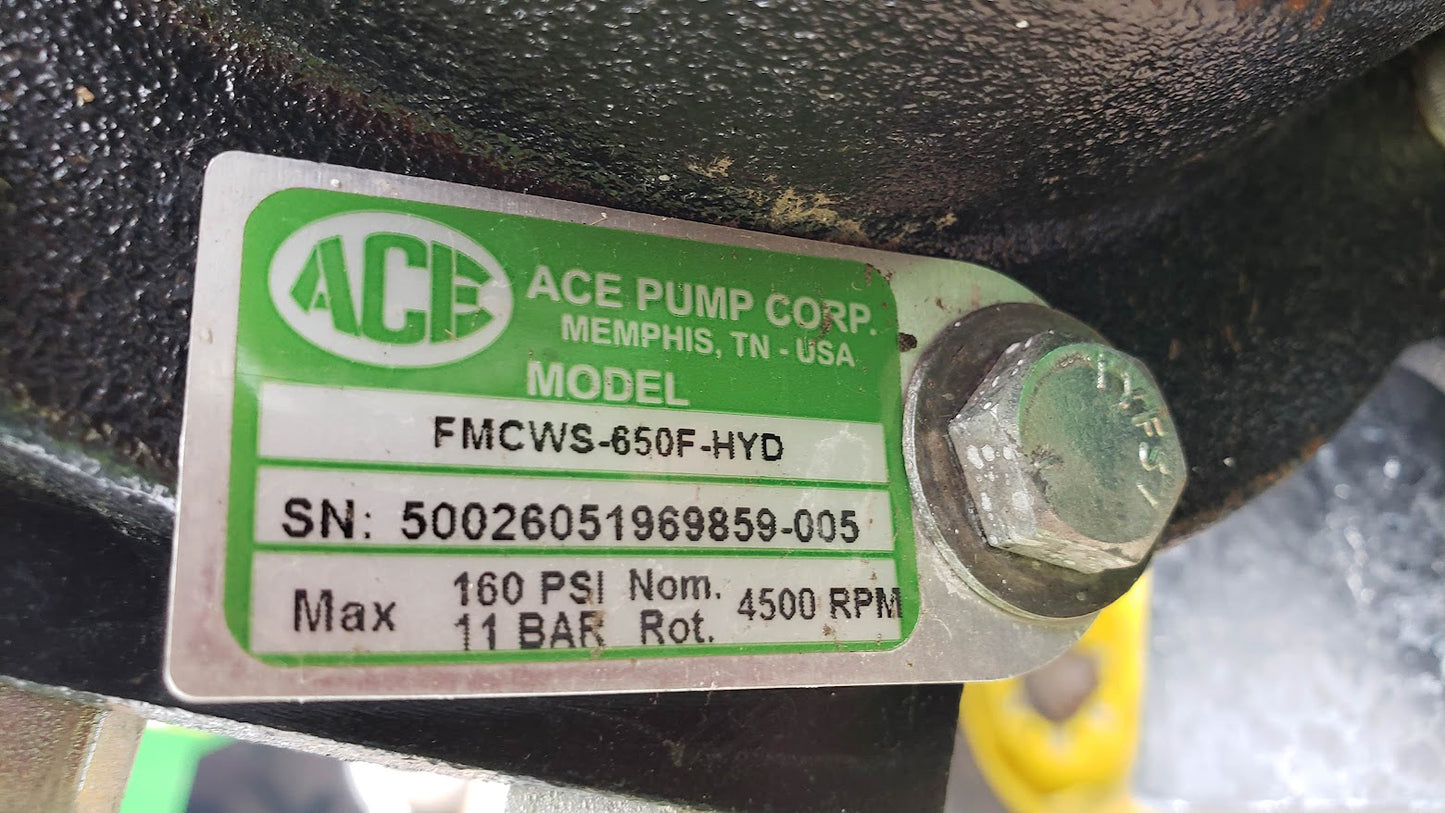

- Ace FMCWS-650F-HYD hydraulically driven fertilizer pump
  - 170 GPM max flow

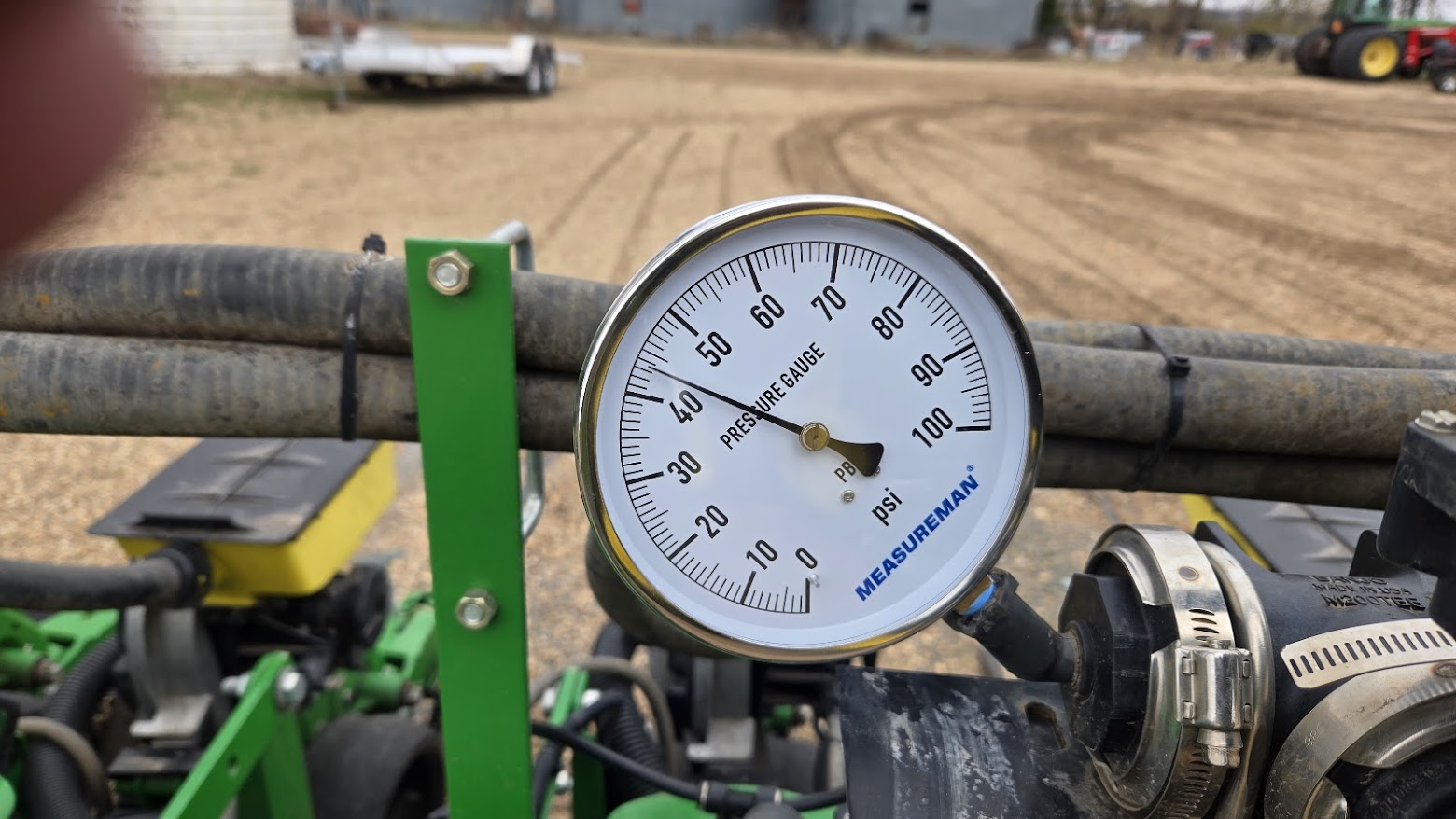

  - 160 psi max pressure
- Stainless steel in-furrow row tubes

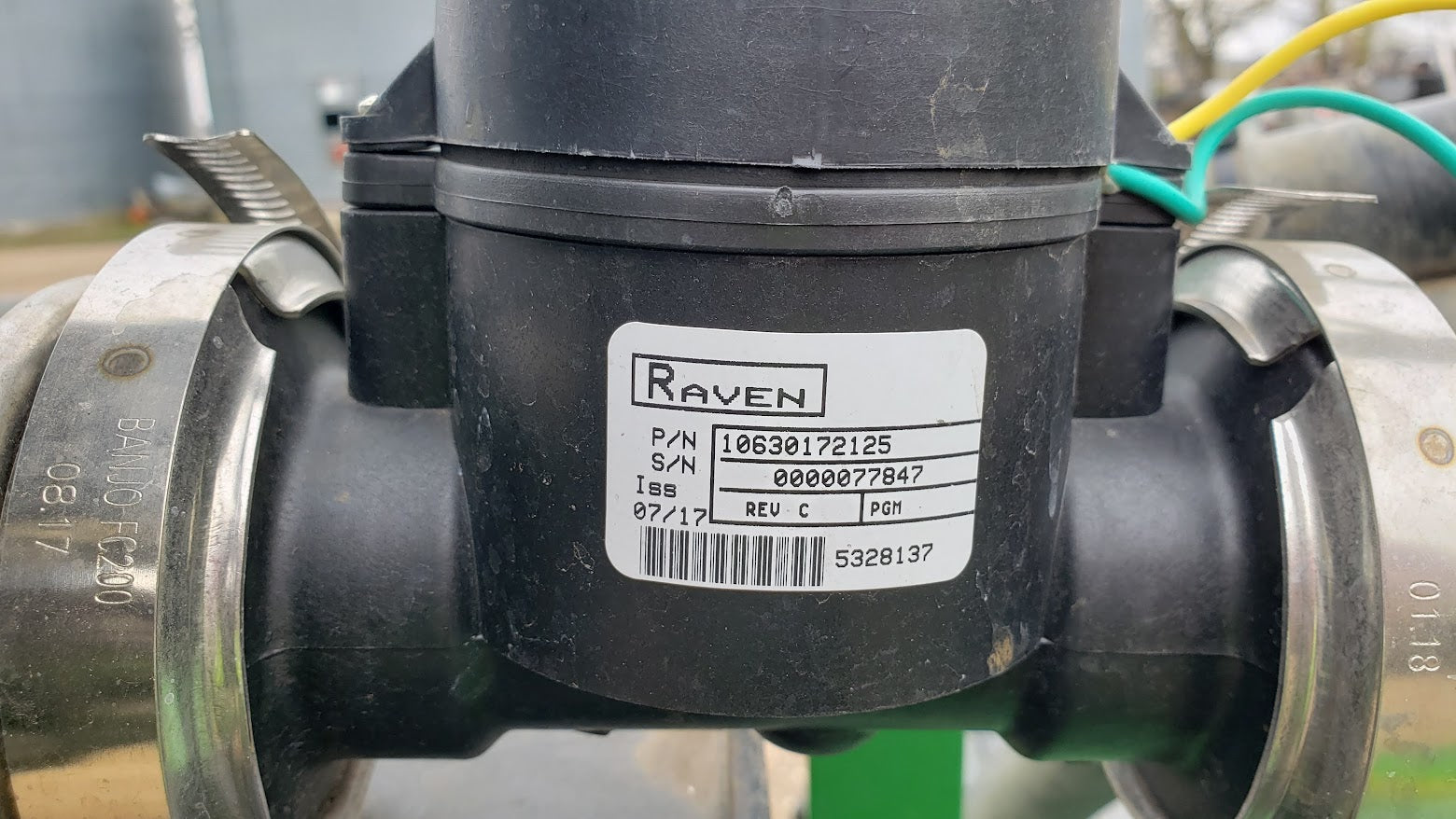

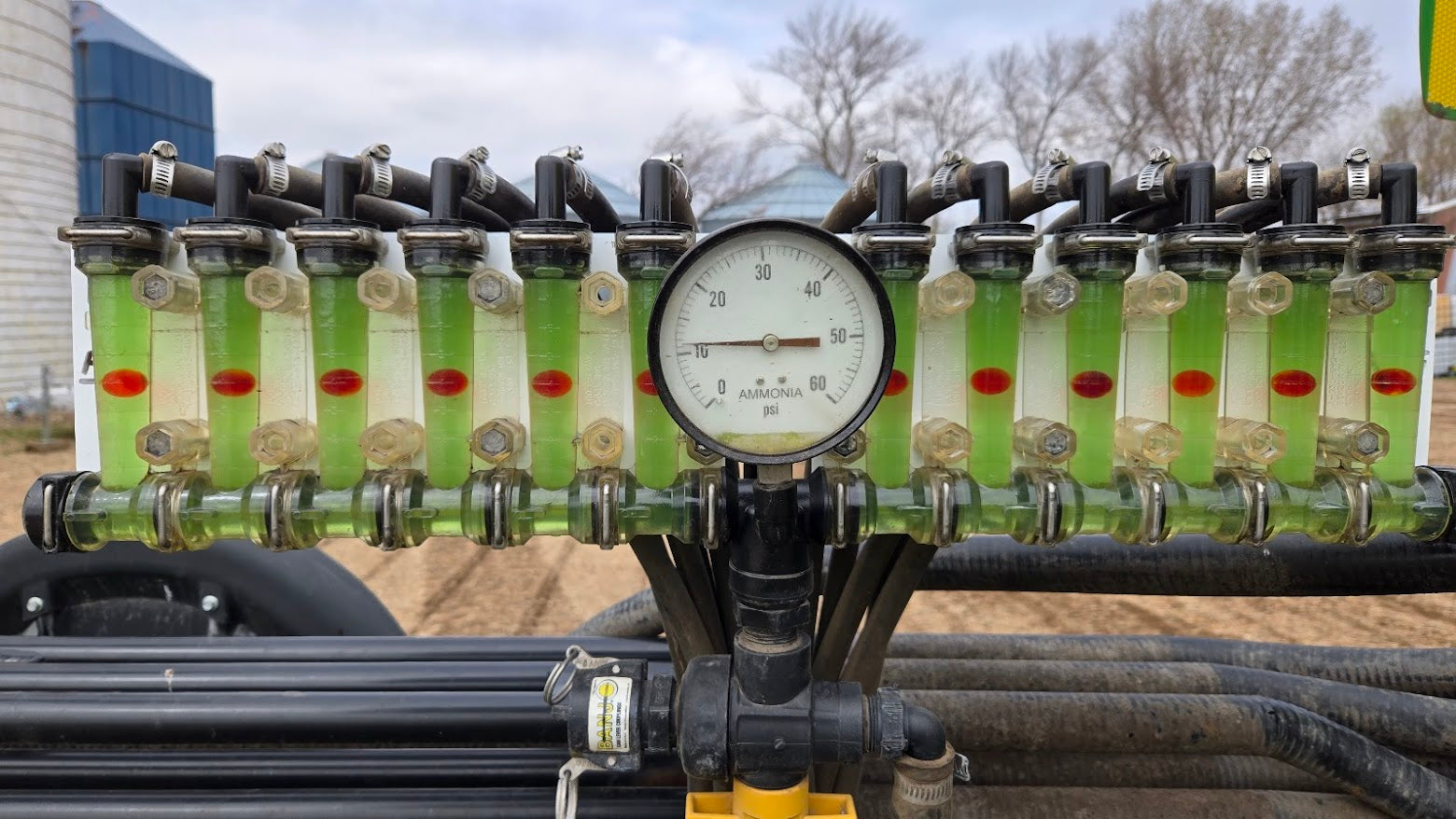

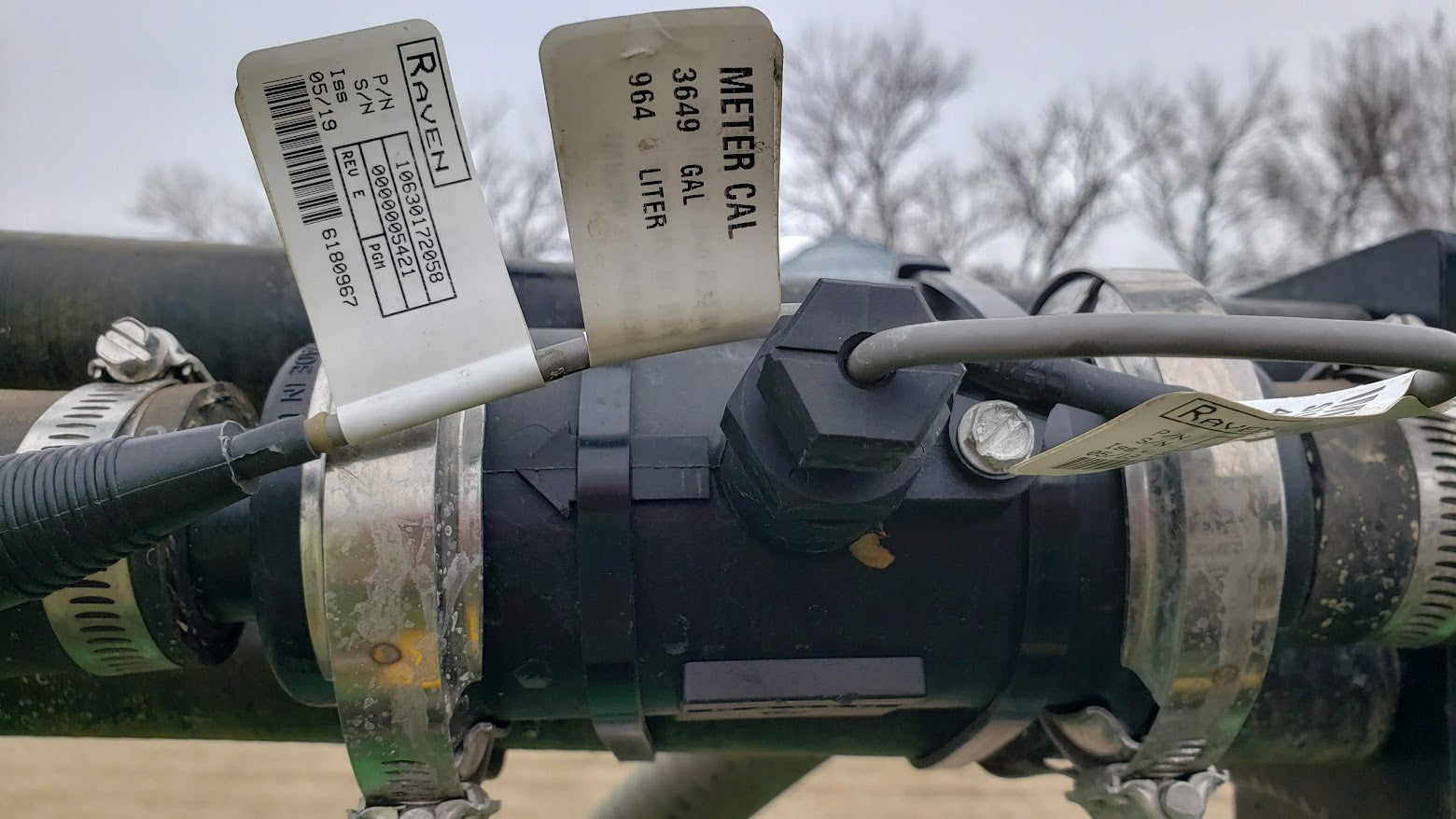

- Redball flow monitors for each row
- Used to apply 4-6 GPM of pop-up fertilizer and Soygreen

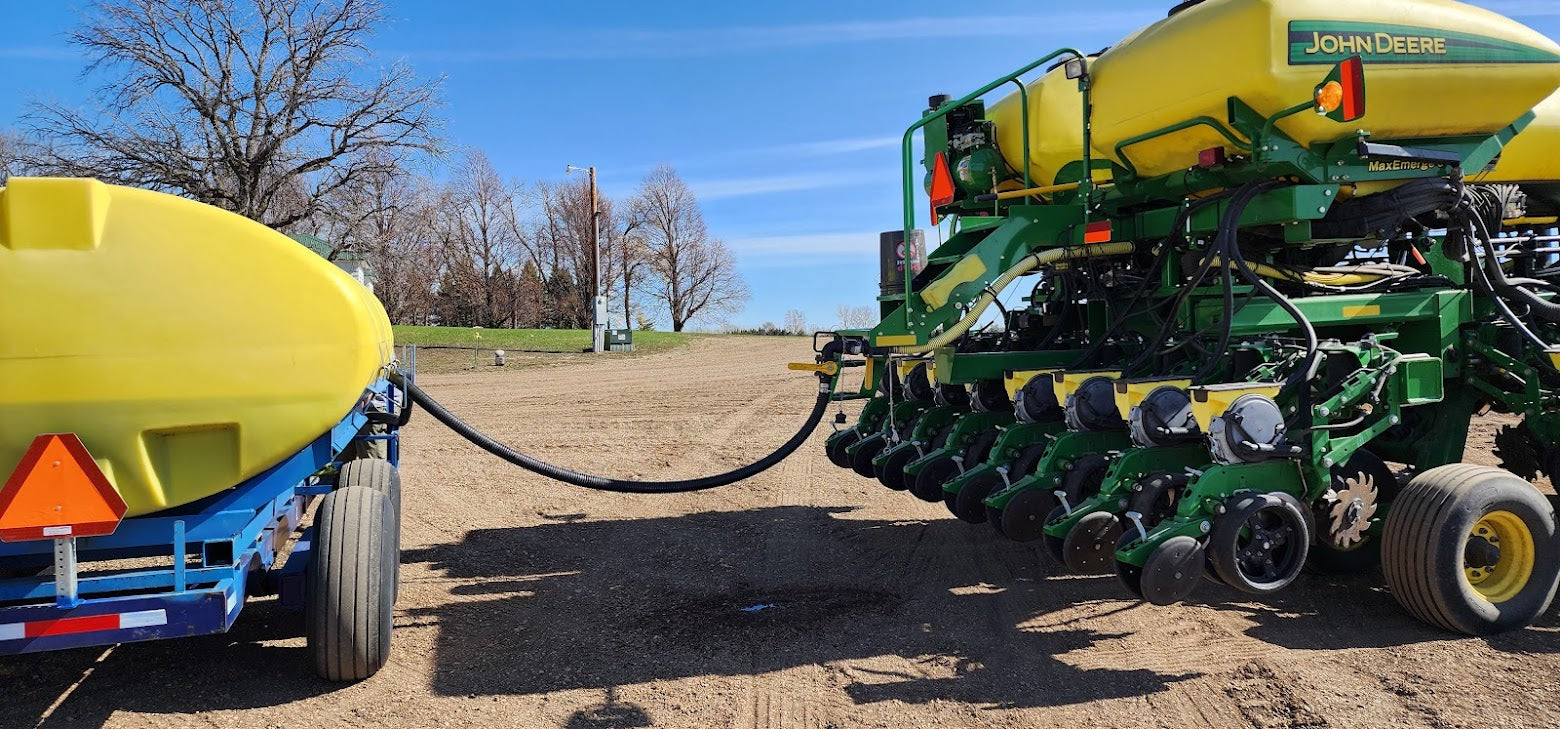

- 2" Banjo quick-coupler rear liquid fill
Owned for 6 years
- Purchased Spring of 2020 through Kibble Equipment in Montevideo, MN
- Originally purchased new in 2015 by a farm 50 miles away from same dealer
Full dealer inspection and all identified repairs completed and worn components replaced
- April 2020 by Kibble Equipment

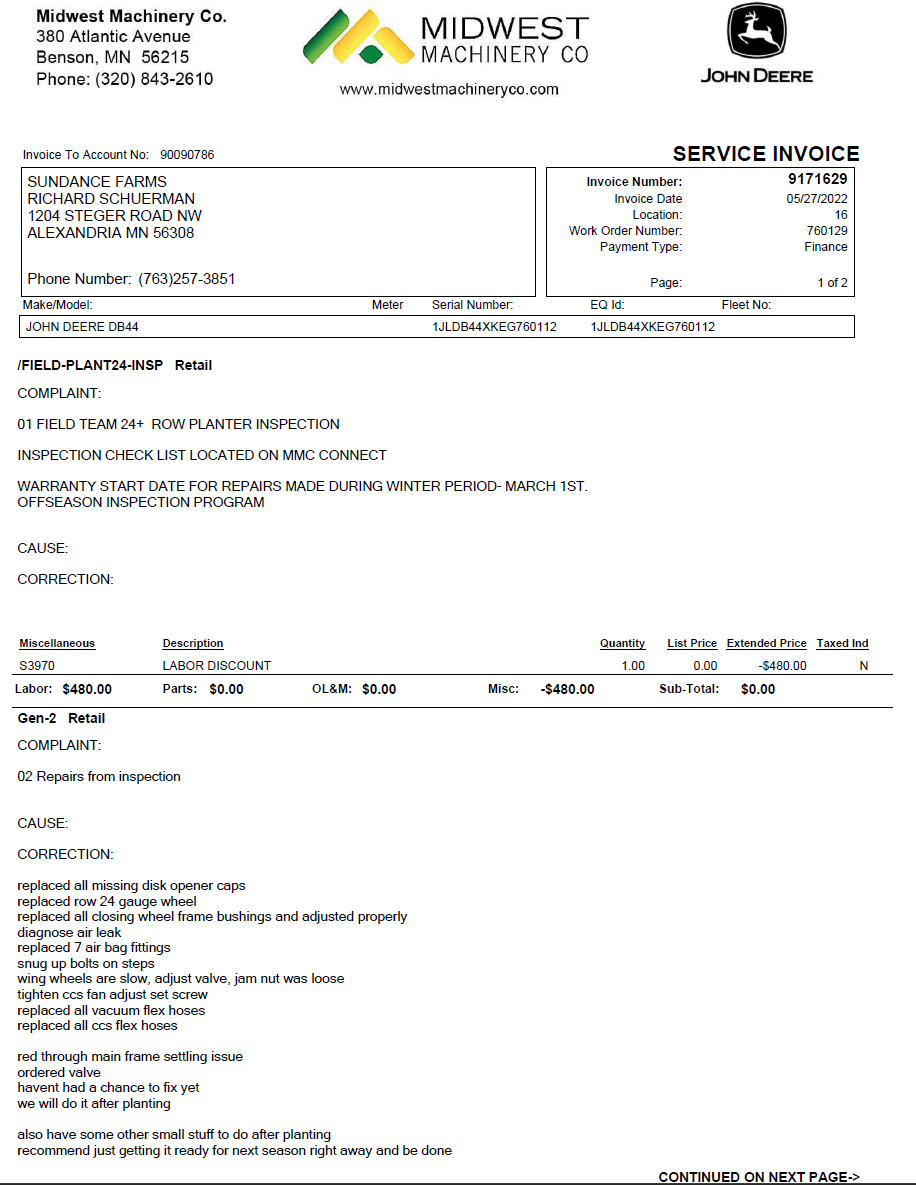

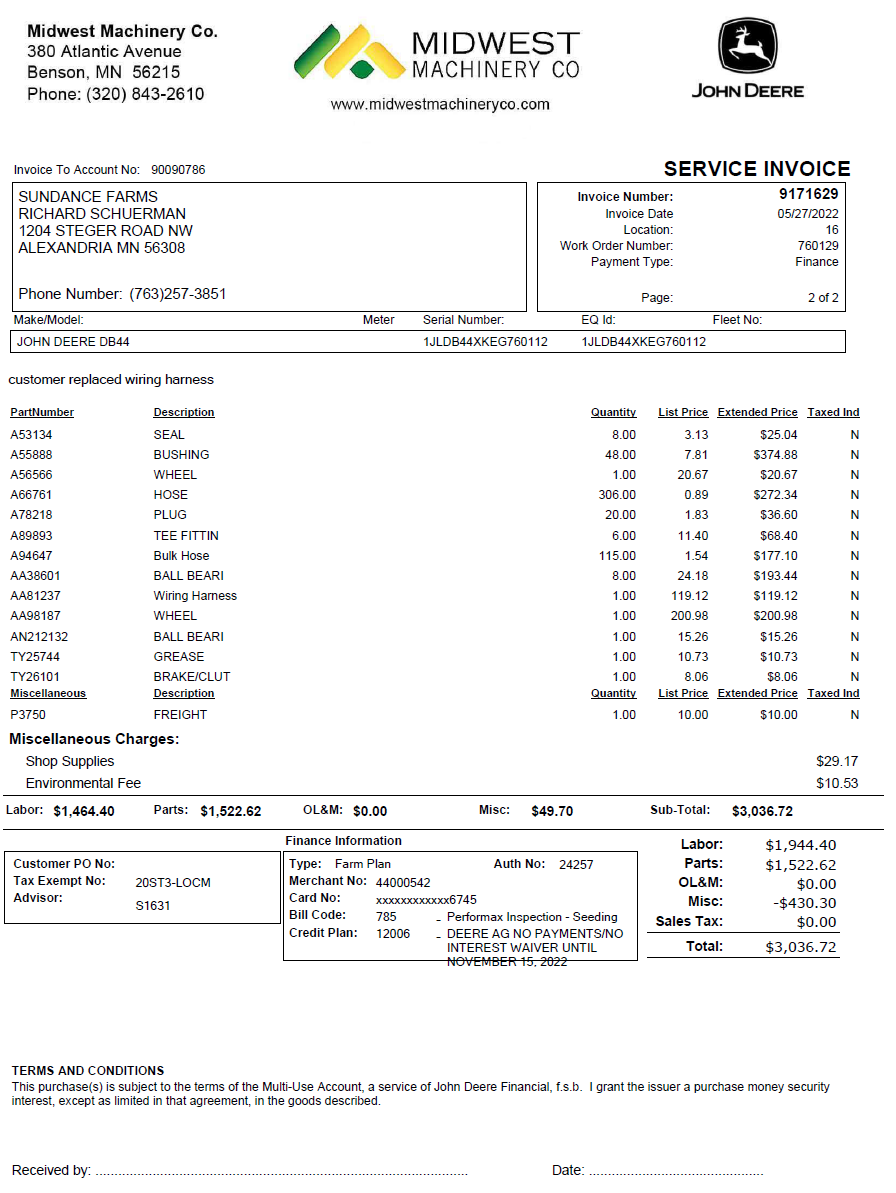

- April 2022 by Midwest Machinery

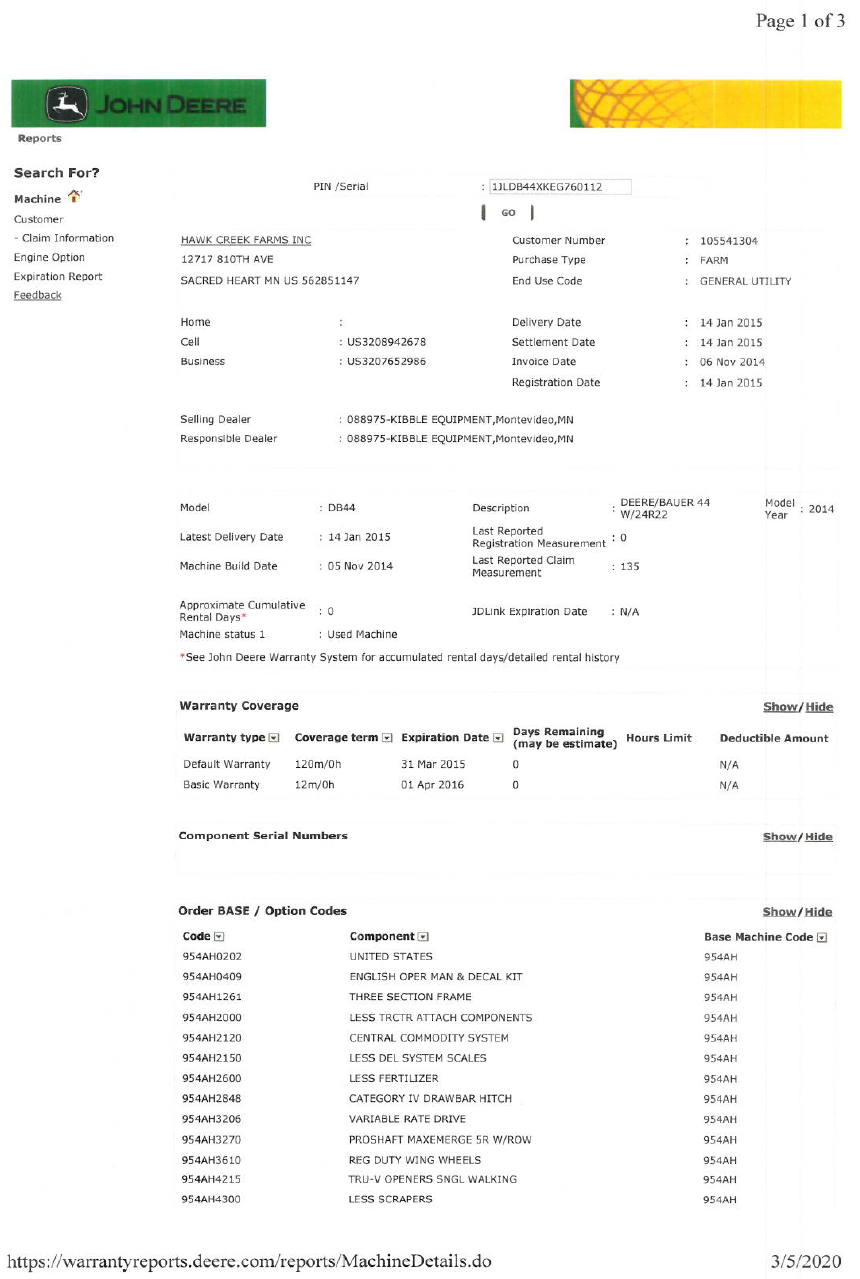

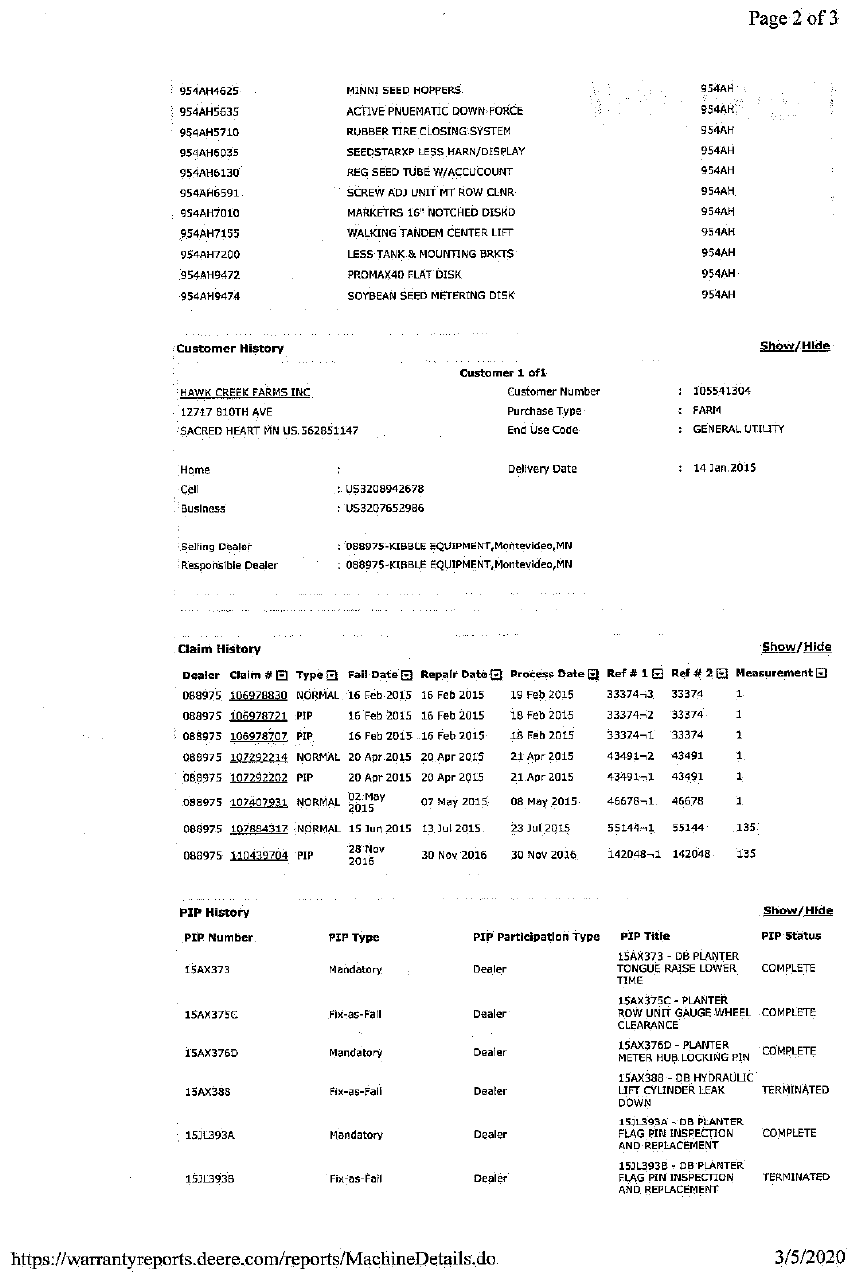

All PIPs up-to-date (see pictures of Deere report)
Includes following new spare parts
- Complete set of 48 new Shoup SH75249 3.5-mm disk openers
  - HD cast and machined hubs
  - Double-row bearings
  - 5/16" diameter rivets
  - Steel bearing covers
- 48 new 0.030" disk opener shim washers
- Complete set of 24 new Exapta Valion chrome alloy seed tube guards
- Complete set of 24 row-unit meter door soft vacuum seals
- 1 row unit seed sensor cleaning bristle brush
- 1 spare seed disk hub seal
- 1 spare meter door latch
- 2 spare Precision Planting meter bush kits

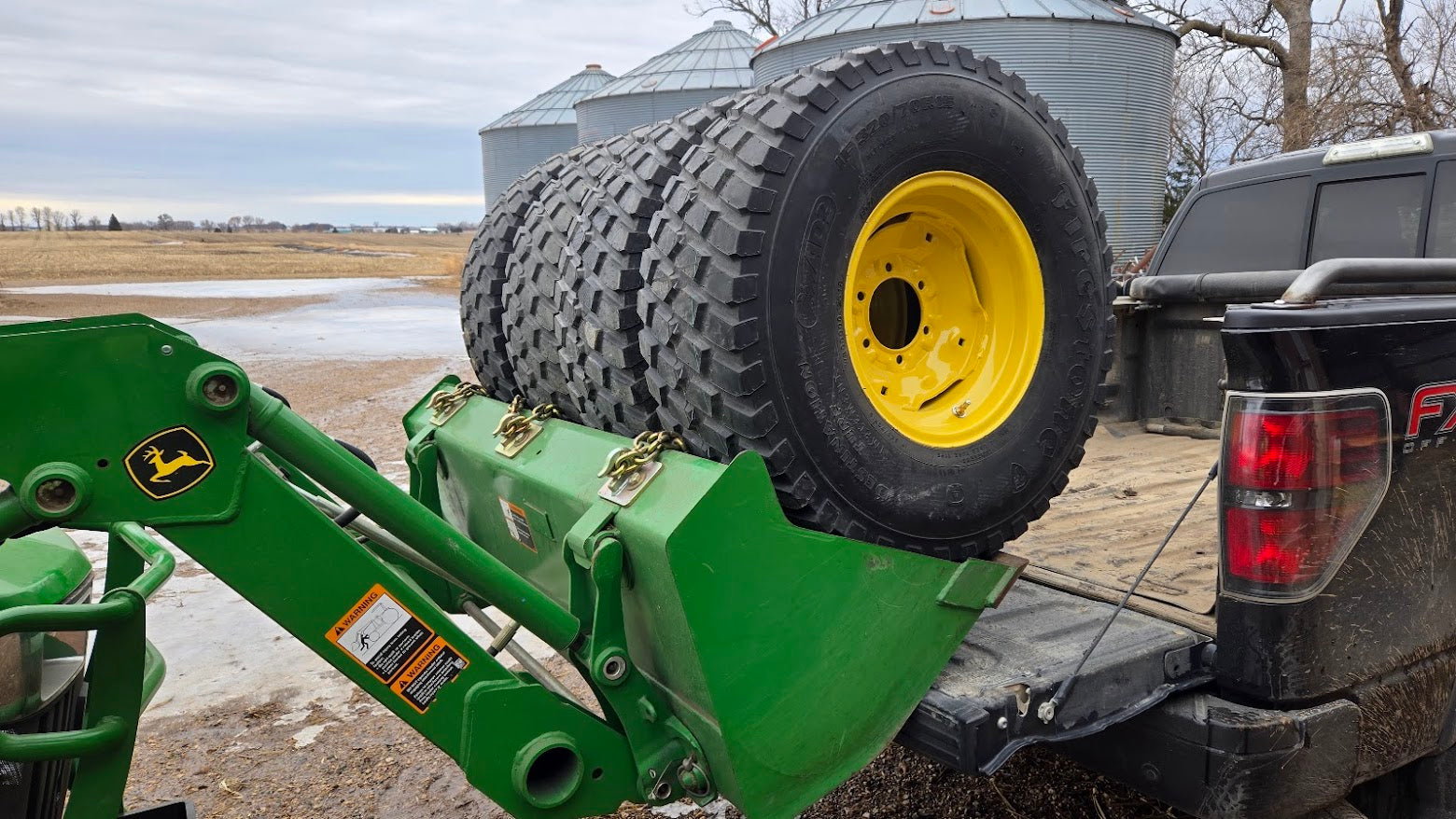

- 4 spare tires and wheels for wings
- 4 spare tires and wheels for center mainframe
- All parts to revert eSets back to Deere stock ME5 ProMax40 meter
- Set of twenty-four 108-cell Deere soybean discs
- Set of twenty-four 40-cell Deere ProMax40 corn discs
- 1 Farm2Farm GraphiteGuide
- 1 Farm2Farm EasyFurrow
- 1 Farm2Farm PlanterPerfect
Unplanned downtime repairs during ownership
- CCS tank agitator shear pin (as originally delivered from dealer in 2020)
- O-ring on CCS tank fan pressure adjuster valve in 2021
- Ground speed sensor on right main frame wheel in 2023

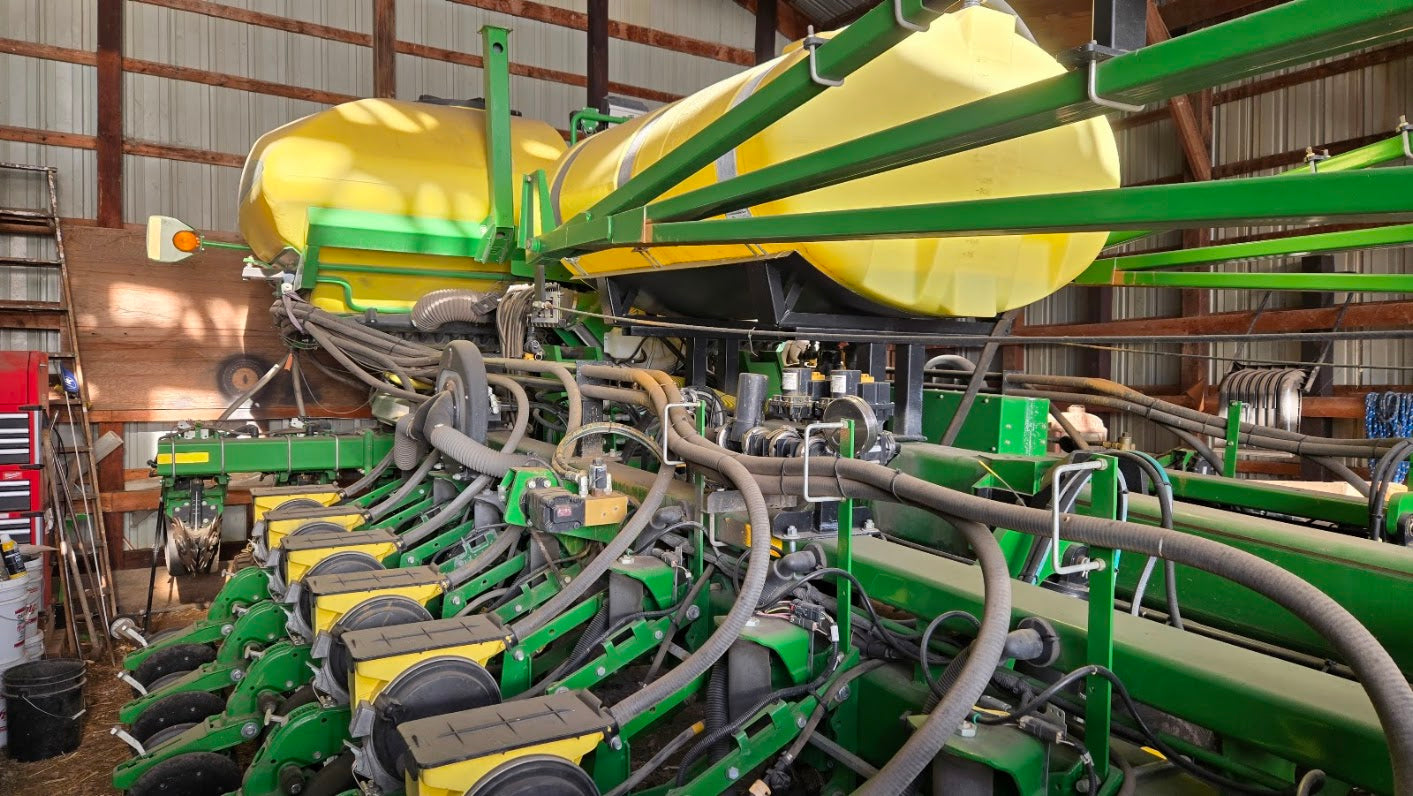

Stored under roof
Owned outright, no lien
Serial number 1JLDB44XKEG760112
Located near Danvers, MN 56231
Call, text, or email Rick Schuerman
- Seven-six-three, two-five-seven, thirty-eight fifty-one
- farm2farm.ag@gmail.com
